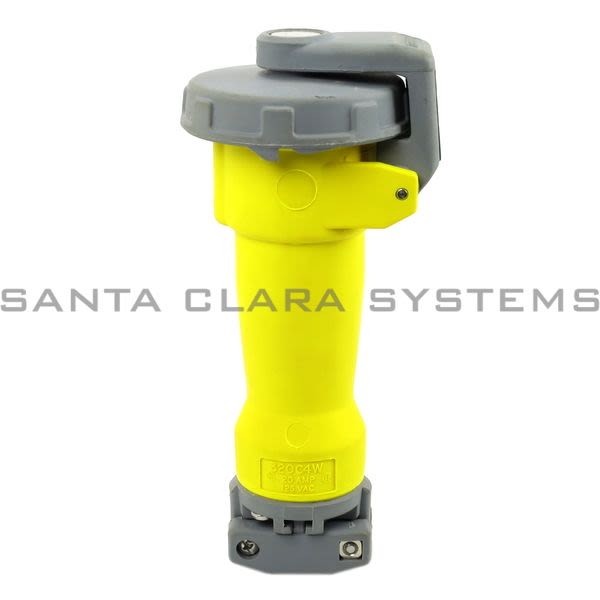

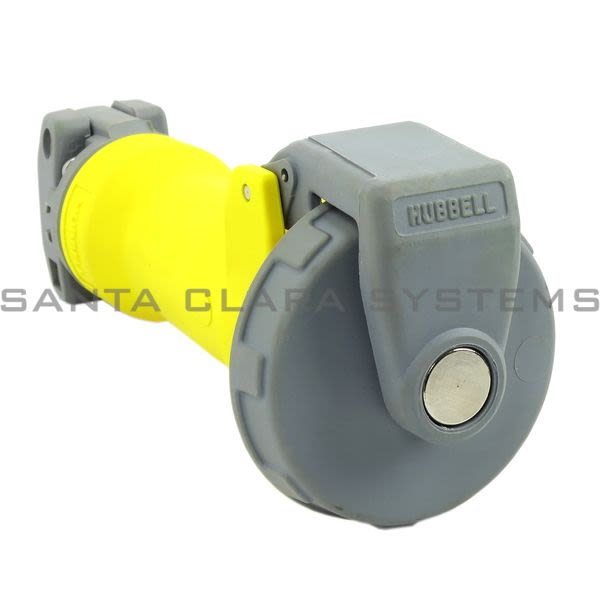

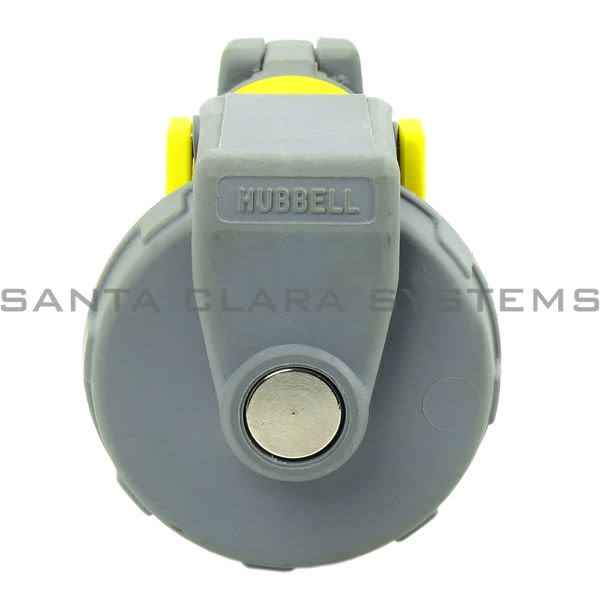

HBL320C4W

Hubbell - Pin and Sleeve Connector

Current response time:

18 Minutes 58 Seconds

Description: Pin and Sleeve Connector
Specifications Description: Watertight IEC Pin and Sleeve Connector, 2P3W, 20A 125V
UPC Number: 78358540330
Weight in LBs: 1.15
Amperage: 20A
Flammability: HB or Better per UL 94 or CSA C22.2 No. 0.17
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and IEC conventions.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 2 Pole, 3 Wire
Moisture Resistance: Watertight per IEC 60309-1
Ingress Protection: IP 67 Suitability
Product Identification: Identification and ratings are a permanent part of the device housing.
Impact Resistance: Per CSA C22.2 No. 182.1 / UL1682.
Max Working Voltage: 600V RMS (i.e. minimum creepage distance 10 mm minimum)
Housing: Zytel 801 Nylon
Cover: Rynite SST35
IEC Product Type: Watertight
Service Style: Standard
Device: Connector
Replacement Interior Number: IN320AF
Terminal Accommodations: #14 To #10 AWG copper wire only

Cord clamp range: .330" To .830"
Contact Carrier: High-Impact Thermoset
Retainer: High-Impact Thermoset
Terminal Screws: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Solid Neoprene
Cord Clamps: Rynite SST35
Grommet/Glands: Solid Neoprene
Cover Arm: Rynite SST35
Arm Spring: Stainless Steel (17-1 Type)
Cord Clamp Screws: Stainless Steel (300 Series)
Clamp Nut: Nickel Plated Brass
Cover Screw/Rivet: Nickel Plated Brass
Rotating Sealing Disc: Polycarbonate
Ground/Phase Sleeve: Brass
Pin/Sleeve Spring: Stainless Steel (300 Series)
Certification: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets, LR285C for Receptacles, CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, IEC
Dielectric Withstand Voltage: Withstands 3,000V AC Min.
Endurance: 5,000 connect and disconnect cycles with load for 16A and 20A, 1,000 cycles with load and 1,000 cycles w/o load for 30A, 32A, 60A and 63A, and 250 cycles with load and 250 cycles w/o load for 100A and 125A.
Cord Grip Retention: Per CSA C22.2 No. 182.1 / UL1682.
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
Certifications: UL Listed, UL Standard 498 CSA Certified to CSA Spec. C22.2 No. 182.2 UL Classified to IEC 309-1 and IEC 309-2.
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
