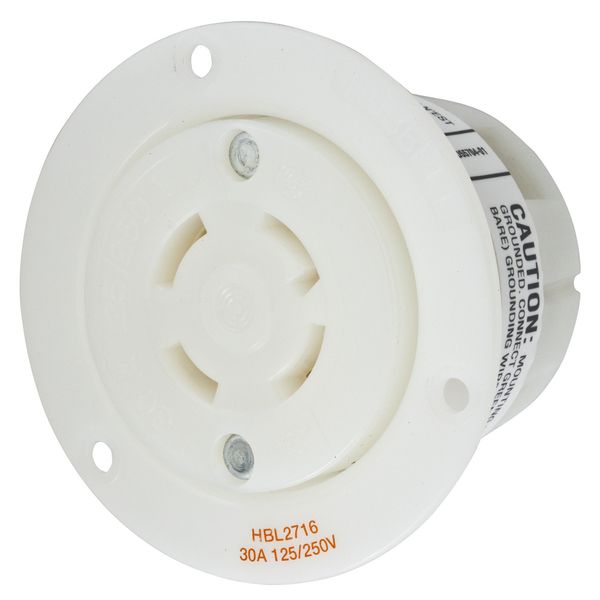

HBL2716

Hubbell - Control

Current response time:

19 Minutes 16 Seconds

Description: Control
Specifications Description: 3P4W, 30A 125/250V, L14-30R, White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.35
Amperage: 30A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125/250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10 AWG
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (green finish) Multi-drive
Device Color: White
Catalog No: Permanently ink marked on product
Product Item: Flanged Receptacle

Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Horsepower: 2 (2)
NEMA Configuration: L14-30R
Terminal Retainer Material: Clear polycarbonate
Terminal Clamp Material: .08" (2) steel-nickel plated
Body Holding Screw Material: Steel, zinc plated Multi-drive
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: Brass
Spring Binding Plate Material: Brass
Flanged Casing Material: Natural White Nylon
Mounting Screw Material: Nickel-plated Brass Round head screws
Ground Contact Material: .031" (.8) Brass
Listings: FED SPEC UL/CSA
