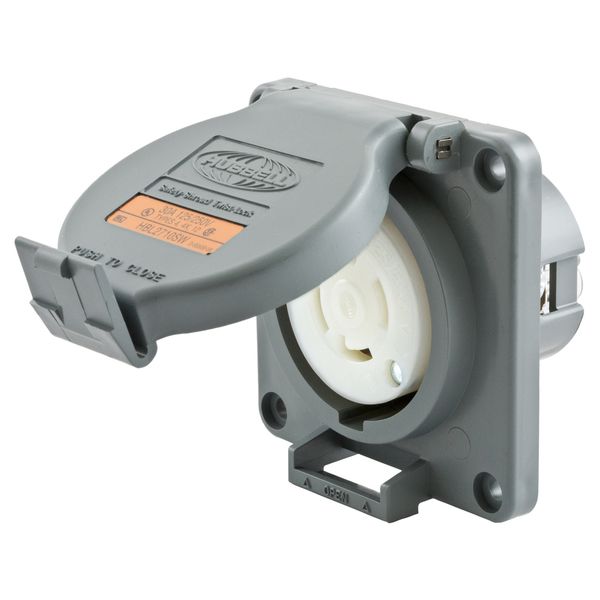

• Hubbell HBL2710SW Control Product Image
  • Hubbell HBL2710SW Barcode

HBL2710SW

Let Us Find It

Current response time:

17 Minutes 56 Seconds
  • Description: Control
  • Specifications Description: 3P4W, 30A 125/250V, L14-30R, Gray Thermoplastic Polyester Housing
  • UPC Number: 7.83585E+11
  • Weight in LBs: 0.6
  • Amperage: 30A
  • Flammability: VO per UL94 or CSA 22.2 No. 0.6
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Voltage: 125/250V AC
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 30A #10 AWG
  • Moisture Resistance: Type 4, 4X, 12, IP66 suitability
  • Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
  • Ground Screw Material: #10-32 Brass (Green)
  • Device Color: Gray
  • Catalog No: Permanently ink marked on product
  • Product Item: Single Receptacle
  • Wiring Scheme: 3-Pole, 4-Wire Grounding
  • Dielectric Voltage Withstand: 2,000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Shrouded Watertight
  • Horsepower: 2
  • Housing Material: Impact modified PBT
  • NEMA Configuration: L14-30R
  • Terminal Retainer Material: Clear polycarbonate
  • Terminal Clamp Material: Steel, nickel plated .080" Curved, scalloped
  • Body Contact Carrier Material: Natural White Nylon
  • Contact Spring Material: .031" Brass
  • Spring Binding Plate Material: .031" Brass
  • Mounting Screw Material: Stainless Steel 302/304 Multi-drive
  • Ground Contact Material: .031" Brass
  • Rivet Material: Steel
  • Flange Gasket Material: Closed-cell Neoprene foam
  • Lid Gasket Material: Closed-cell Neoprene foam
  • Cover Hinge Pin Material: Stainless Steel 302/304
  • Housing and Flange Material: Gray Valox
  • Cover Spring Material: Stainless Steel 302/304
  • Listings: FED SPEC UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2710SW . Santa Clara Systems carries 10,224 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
