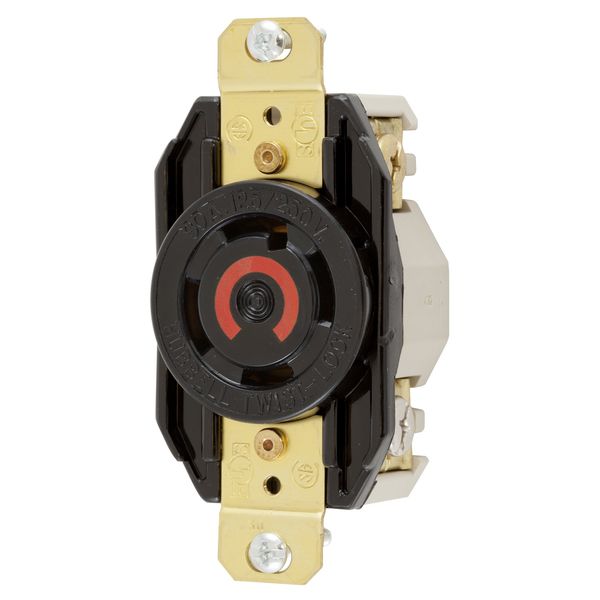

• Hubbell HBL2710 Control Product Image
  • Hubbell HBL2710 Barcode

HBL2710

Let Us Find It

Current response time:

By 5AM PT on Wednesday
  • Description: Control
  • Specifications Description: 3P4W, 30A 125/250V, L14-30R, Black Nylon Face
  • UPC Number: 7.83585E+11
  • Weight in LBs: 0.3
  • Amperage: 30A
  • Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Voltage: 125/250V AC
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 30A #10 AWG
  • Terminal Screw Material: #10-32 Bronze (White finish on neutral screw when used)
  • Ground Screw Material: #10-32 Bronze (Green)
  • Device Color: Black
  • Catalog No: Permanently ink marked on product
  • Product Item: Single Receptacle
  • Wiring Scheme: 3-Pole, 4-Wire Grounding
  • Dielectric Voltage Withstand: 2,000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Standard
  • Horsepower: 2
  • NEMA Configuration: L14-30R
  • Terminal Retainer Material: Clear polycarbonate
  • Terminal Clamp Material: .040" (1.0 )Brass
  • Contact Spring Material: .040" Brass
  • Mounting Screw Material: Steel, zinc plated
  • Cover (Top) Material: Black Nylon
  • Base Material: Nylon Polyester
  • Ground Contact Material: .040" Brass
  • Bridge (Mounting Strap) Material: .050" Brass
  • Back Plate Material: .040" Brass
  • Rivet Material: Brass
  • Auto Ground Clip Material: Stainless Steel
  • Listings: FED SPEC UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2710 . Santa Clara Systems carries 10,224 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
