HBL2511SW

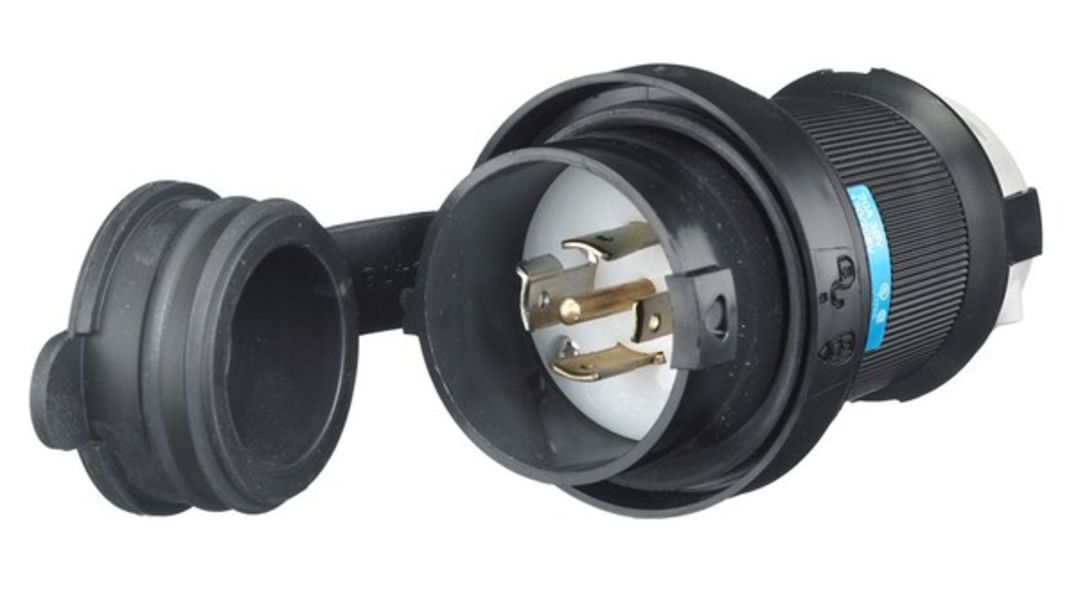

Hubbell - Twist-Lock Watertight Safety-Shroud Plug

Current response time:

By 5AM PT on Monday

Emergency?

Description: Twist-Lock Watertight Safety-Shroud Plug
Specifications Description: 4P5W, 20A 3PH 120/208V AC, L21-20P, Black & White Thermoplastic Polyester
UPC Number: 7.83585E+11
Weight in LBs: 0.75
Amperage: 20A
Flammability: VO per UL94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase Y 120/208V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Product Type: Twist-Lock Devices
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG
Moisture Resistance: Type 4, 4X, 12, IP66 suitability
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (green finish) Multi-drive
Device Color: Black/White
Catalog No: Permanently ink marked on product
Product Item: Plug

Wiring Scheme: 4-Pole, 5-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Shrouded Watertight
Horsepower: 2
Housing Material: Impact modified PBT
NEMA Configuration: L21-20P
Cord Dia.: .35"-1.15" (9-29)
Blade Holder Material: Natural White Nylon
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Impact modified PBT
Blade Material: Brass
Terminal Clamp Material: .08" (2) steel-nickel plated
Cord Clamp Screw Material: Stainless steel, Multi-drive
Body Holding Screw Material: Stainless steel 302/304, Multi-drive
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Closure Cap and Strap Material: Neoprene EPDM Blend
Safety-Shroud Material: White Valox
Listings: FED SPEC UL/CSA
