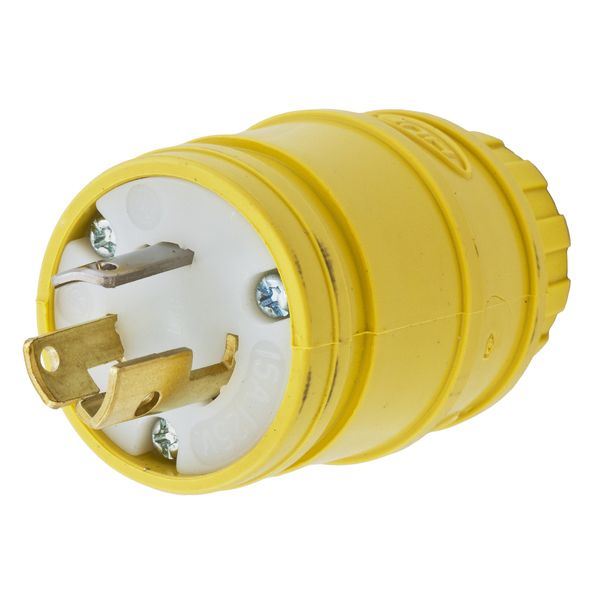

- Description: Locking Watertight Plug
- Specifications Description: 2P3W, 15A 125V, L5-15P, Yellow Elastomer
- UPC Number: 7.83585E+11
- Weight in LBs: 0.2
- Amperage: 15A
- Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
- Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
- Voltage: 125V AC
- Current Interrupting: Certified for current interrupting at full rated current
- Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
- Terminal Accommodation: 15A #14 AWG
- Moisture Resistance: IP20
- Terminal Screw Material: #8-32 Brass (white finish on neutral screw when used)
- Ground Screw Material: Brass (green finish)
- Device Color: Yellow
- Catalog No: Permanently ink marked on product
- Product Item: Plug
- Wiring Scheme: 2-Pole, 3-Wire Grounding
- Dielectric Voltage Withstand: 2000V minimum
- Ratings: Molded In or Stamped On
- Item Style: Watertight Elasto-Grip
- Horsepower: 0.5
- Housing Material: Yellow elastomer
- NEMA Configuration: L5-15P
- Cord Dia.: .300"-.655" (7.6-16.6)
- Blade Holder Material: Natural White Nylon
- Terminal Retainer Material: Clear polycarbonate
- Cord Clamp Material: Yellow nylon
- Blade Material: Brass
- Terminal Clamp Material: Cold rolled steel-nickel-plated
- Cord Clamp Screw Material: Stainless Steel
- Body Holding Screw Material: Steel-zinc-plated
- Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
- Listings: UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL24W47 . Santa Clara Systems carries 10,227 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
