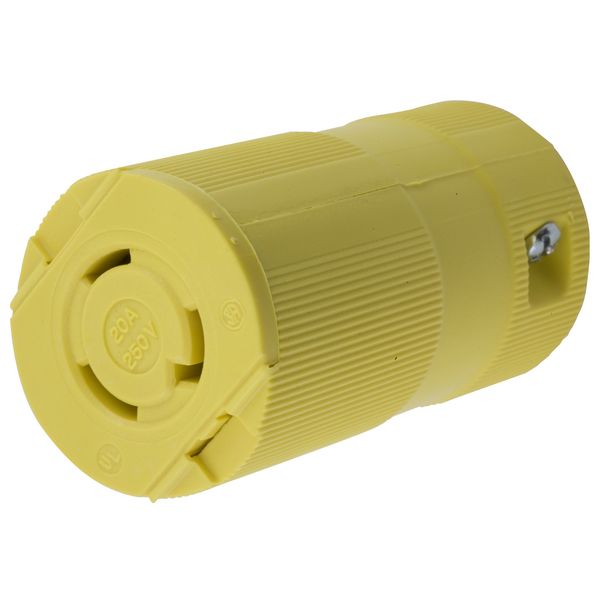

HBL2323VY

Hubbell - Control

Current response time:

15 Minutes 4 Seconds

Description: Control
Specifications Description: 2P3W, 20A 250V, L6-20R, Yellow Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.25
Amperage: 20A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG
Moisture Resistance: IP20
Terminal Screw Material: #8-32 Steel (copper flash, nickel plate & molykote)
Ground Screw Material: #8-32 Steel (green finish)
Device Color: Yellow

Catalog No: Permanently ink marked on product
Product Item: Connector Body
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000 minimum
Ratings: Molded In or Stamped On
Item Style: Valise
Housing Material: Yellow nylon
NEMA Configuration: L6-20P
Cord Dia.: .325"-.720" (8.26-18.3)
Cord Clamp Material: Natural (white) nylon
Terminal Clamp Material: Cold rolled steel-nickel plated
Cord Clamp Screw Material: Steel-zinc-plated
Contact Spring Material: Brass
Ground Contact Material: .031" (.8) Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA
