- Description: Control

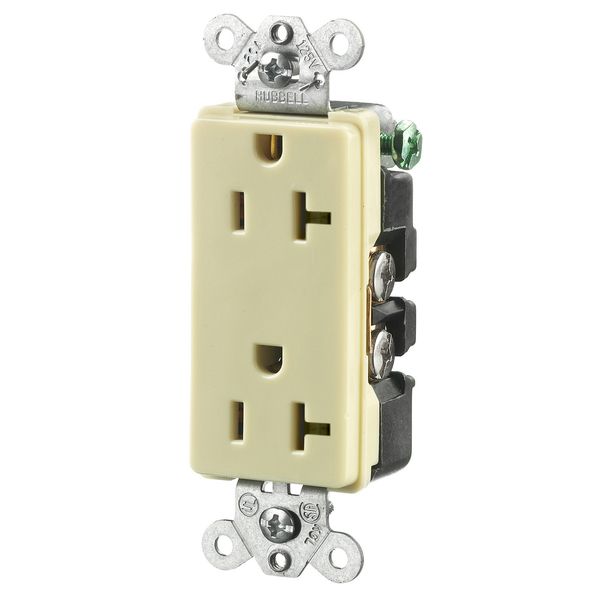

- Specifications Description: 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Back and Side Wired, Nylon Face, Ivory
- UPC Number: 7.83585E+11
- Weight in LBs: 0.2
- Amperage: 20A
- Flammability: Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
- Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
- Voltage: 125V
- Current Interrupting: Certified for current interrupting at full rated current.
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Poles and Wires: 2 Pole, 3-Wire Grounding
- Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
- Terminal Screw Material: #8-32 Brass /Ni plated for neutral
- Product Identification: Ratings are a permanent part of the device.
- Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
- Horsepower: 1
- Rating: 20A, 125V
- Type: 2 Pole, 3 Wire, Grounding
- Standard: NEMA
- Receptacle Style: Duplex
- Face Shape: Rectangular
- Wiring Method: Back and Side
- Hospital Grade ?: No
- Receptacle Grade: Style Line
- Face Style: Smooth
- Other Available Colors: Brown, Almond, Black, Gray, Ivory, Office White, White
- NEMA No.: 5-20R
- Certification: UL Listed, File E2186, Guide RTRT, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
- Top Material: Nylon
- Base Material: Reinforced PET
- Power Contacts Material: .037" (.9) Phosphor Bronze
- Mounting Strap Material: .050" (1.3) Steel Galvanized
- Auto Ground Clip Material: Stainless Steel
- Mounting Screw Material: Steel-Zinc Plated
- Dielectric Voltage: Withstands 2,000V minimum.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2162I . Santa Clara Systems carries 10,224 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
