HBL2152I

Hubbell - Control

Current response time:

18 Minutes 1 Second

Description: Control

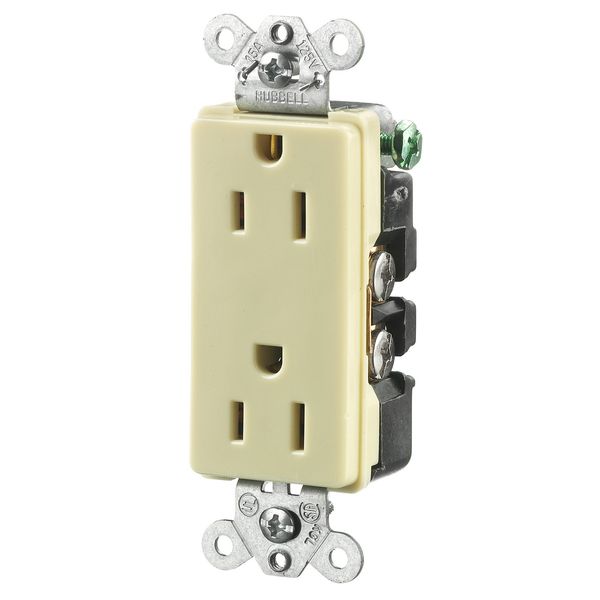

Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Back and Side Wired, Nylon Face, Ivory
UPC Number: 7.83585E+11
Weight in LBs: 0.2
Amperage: 15A
Flammability: Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #8-32 Brass /Ni plated for neutral
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
Horsepower: 0.5
Rating: 15A, 125V

Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Receptacle Style: Duplex
Face Shape: Rectangular
Wiring Method: Back and Side
Hospital Grade ?: No
Receptacle Grade: Style Line
Face Style: Smooth
Other Available Colors: Brown, Almond, Black, Gray, Ivory, Office White, White
NEMA No.: 5-15R
Certification: UL Listed, File E2186, Guide RTRT, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
Top Material: Nylon
Base Material: Reinforced PET
Power Contacts Material: .037" (.9) Phosphor Bronze
Mounting Strap Material: .050" (1.3) Steel Galvanized
Auto Ground Clip Material: Stainless Steel
Mounting Screw Material: Steel-Zinc Plated
Dielectric Voltage: Withstands 2,000V minimum.
