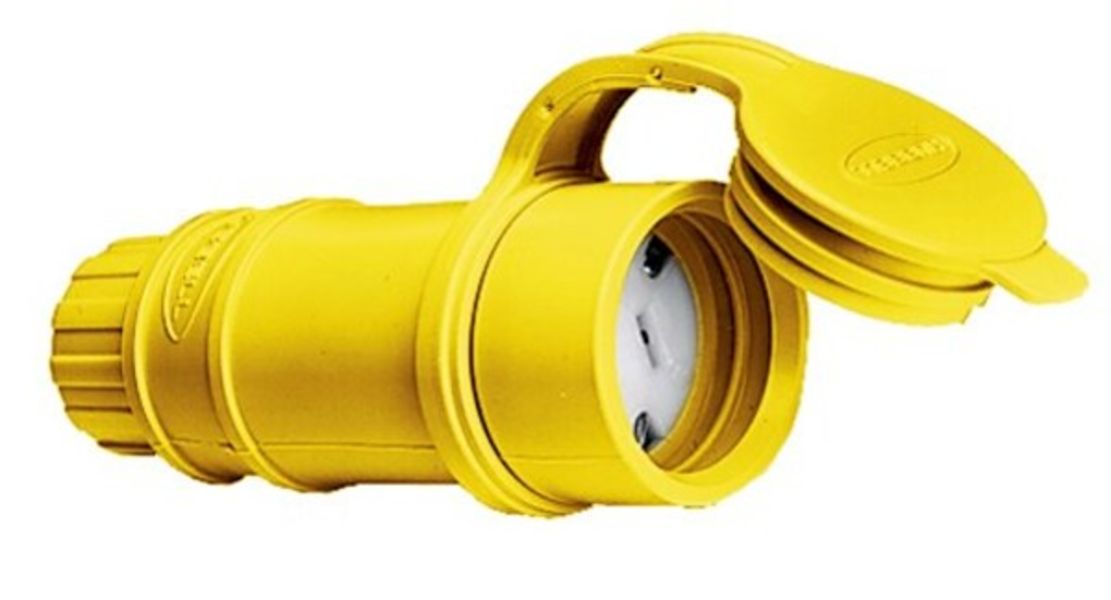

HBL15W47

Hubbell - Elastogrip Connector

Current response time:

18 Minutes 32 Seconds

Description: Elastogrip Connector
Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Yellow Elastomer, Watertight
UPC Number: 7.83585E+11
Weight in LBs: 0.35
Amperage: 15A
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Product Type: Connectors
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #18-#12 AWG copper stranded conductor
Terminal Screw Material: #8-32 Brass, Multiple Drive
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #8-32 Brass, Multiple Drive (Green)

Body Style: Straight
Housing Material: PVC-Yellow
Rating: 15A, 125V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Hospital Grade ?: No
Plug/Connector Grade: Elastogrip
Enhancement: Water Tight
NEMA No.: 5-15R
Cord Dia.: .300"-.655" (7.6-16.6)
Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
IP Suitability: IP20
Retainer Material: Polycarbonate-Clear
Cord Clamp Material: Nylon-Yellow
Contact Holder Material: Nylon-Natural
Power Contacts Material: .040" (1.0) Copper Alloy
Dielectric Voltage: Withstands 2,000V minimum.
