Out of Stock

GFR5362SGBK

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

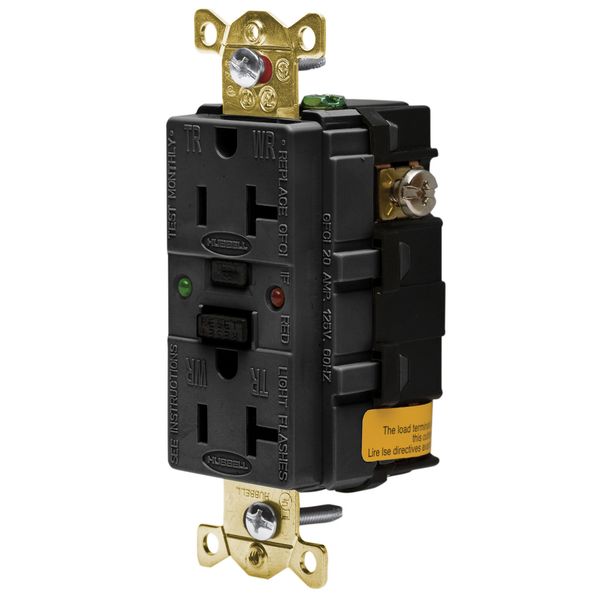

Specifications Description: Safety, Plus More- The only GFCI receptacle that tests itself. 20A 125V, 2P 3W, Flush Thermoplastic Face, Back & Side Wired, Matching Wall Plate Included. Self Test Circuitry, Black
UPC Number: 78358544115
Weight in LBs: 0.4
Amperage: 20A
Voltage: 125V AC
Operating Temp: Deg. F -30 to 150 (Deg. C -30 to 66)
Receptacle Version: Self Test Tamper Resistant
Receptacle Grade: Industrial Grade
Packaging: Single

Trip Level: 4-6 mA
Trip Time: 0.025 seconds
Frequency: 60Hz
Voltage Range: 120V AC +10% -15%
Amperage Range: 15A/20A, 20 Amps Feed Thru
Max Humidity: 0.95
Max Interrupting Capacity: 10,000 Amps
Codes and Standards: Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Terminal Accommodations: #14 -10 AWG stranded or solid copper conductors only.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GFR5362SGBK . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
