Out of Stock

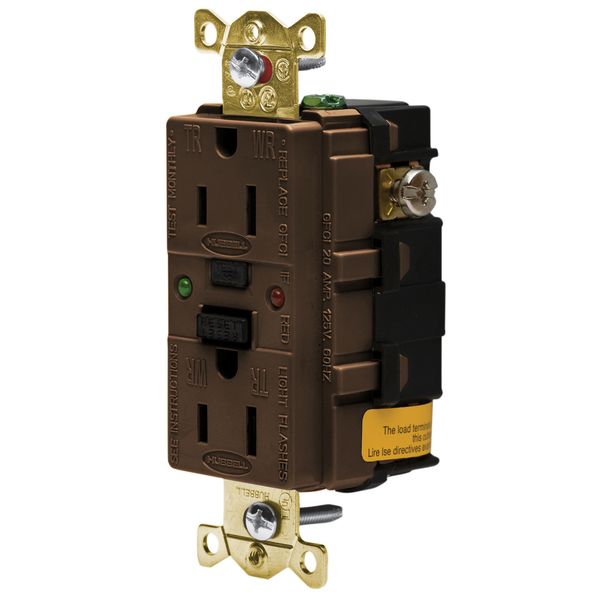

GFR5262SG

Hubbell - Control

Current response time:

5 Minutes 28 Seconds

Description: Control
Specifications Description: Safety, Plus More- The only GFCI receptacle that tests itself. 15A 125V, 2P 3W, Flush Thermoplastic Face, Back & Side Wired, Matching Wall Plate Included. Self Test Circuitry, Brown
UPC Number: 78358544089
Weight in LBs: 0.4
Amperage: 15A
Voltage: 125V AC
Operating Temp: Deg. F -30 to 150 (Deg. C -30 to 66)
Receptacle Version: Self Test Tamper Resistant
Receptacle Grade: Industrial Grade
Packaging: Single

Trip Level: 4-6 mA
Trip Time: 0.025 seconds
Frequency: 60Hz
Voltage Range: 120V AC +10% -15%
Amperage Range: 15A/20A, 20 Amps Feed Thru
Max Humidity: 0.95
Max Interrupting Capacity: 10,000 Amps
Codes and Standards: Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Terminal Accommodations: #14 -10 AWG stranded or solid copper conductors only.
