Out of Stock

FRFBRA

Hubbell - Control

Current response time:

16 Minutes 44 Seconds

Description: Control

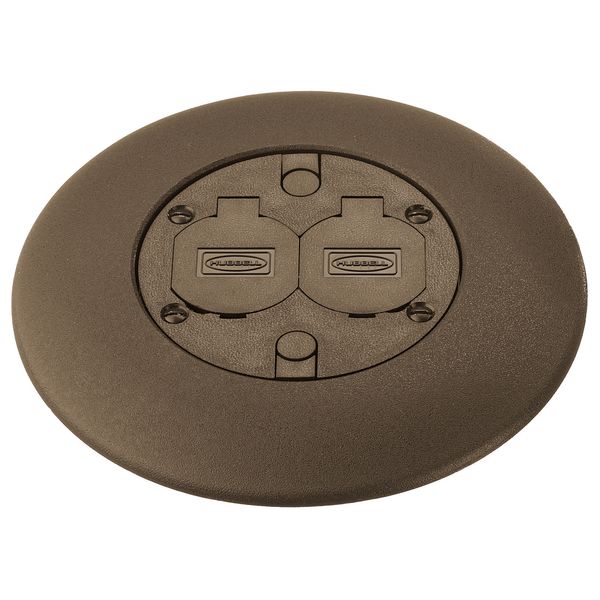

Specifications Description: With prewired Hubbell HBL5352 series (20A) specification grade receptacle & two low-voltage knockouts. Equipped with a cast aluminum carpet flange and a thermoplastic (ABS) duplex flap cover.
UPC Number: 78358539602
Weight in LBs: 1.2
Housing: Engineered flame-retardant thermoplastic UL rated 94V-0
Flush Duplex Offering: Flange and Cover
Complies with:: UL 514A requirements for scrub water protection.
Fire Rating: For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).

Floor Thickness Range: 2 1/4" (over metal deck) to 7" (57.2 to 117.8)
UL Installation Spacing: Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
Cored Hole: 3" (76.2) diameter
Receptacles: Hubbell #HBL5352, NEMA 5-20R; 20A, 125V AC
Jack(s): Low Voltage Knockout Only.
Device and Cover Flap Material: Thermoplastic
Carpet Flange Material: Painted Cast Aluminum/Solid Brass, Brushed and Lacquered.
Listings: UL Listed, CSA Certified

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FRFBRA . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
