- Description: Control

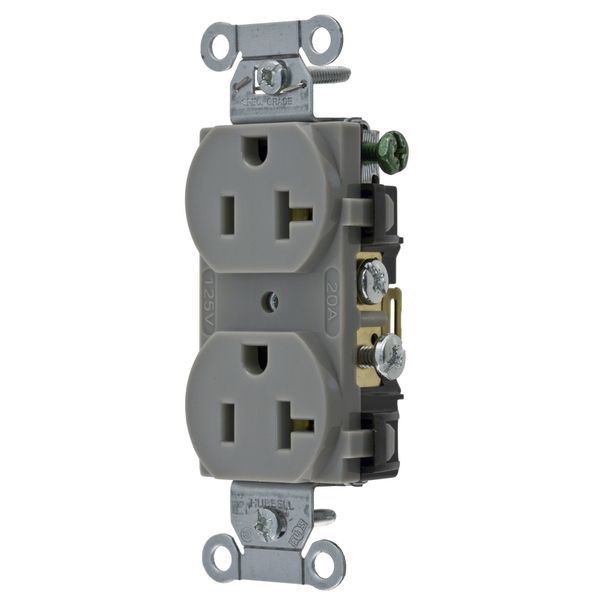

- Specifications Description: 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Side Wired Only, Smooth Nylon Face, Gray
- UPC Number: 7.83586E+11
- Weight in LBs: 0.2
- Amperage: 20A
- Flammability: UL 94 V2.
- Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
- Voltage: 125V
- Current Interrupting: Certified for current interrupting at full rated current.
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Poles and Wires: 2 Pole, 3-Wire Grounding
- Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
- Terminal Screw Material: #8-32 Brass, Multiple Drive
- Product Identification: Ratings are a permanent part of the device.
- Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
- Horsepower: 1
- Rating: 20A, 125V
- Type: 2 Pole, 3 Wire, Grounding
- Standard: NEMA
- Receptacle Style: Duplex
- Face Shape: Traditional
- Wiring Method: Side Wire Only
- Hospital Grade ?: No
- Receptacle Grade: Commercial Series Specification Grade
- Face Style: Smooth Face
- Other Available Colors: Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
- NEMA No.: 5-20R
- Certification: UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
- Top Material: Nylon
- Base Material: Nylon
- Power Contacts Material: .031" (.8) Phosphor Bronze
- Mounting Strap Material: .040" (1) Steel (Galvanized)
- Auto Ground Clip Material: .032" (.8) Steel Wire
- Mounting Screw Material: Steel-Zinc Plated
- Dielectric Voltage: Withstands 2,000V minimum.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CR20GRY . Santa Clara Systems carries 10,224 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
