- Description: Control

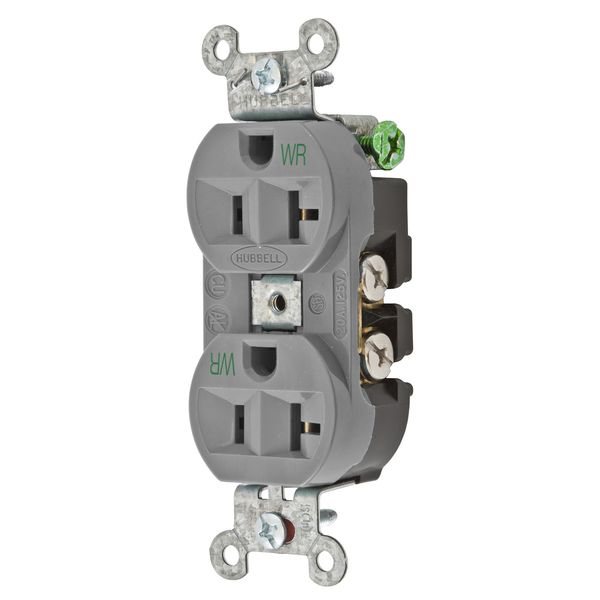

- Specifications Description: 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Smooth Nylon Face, Gray
- UPC Number: 7.83585E+11
- Weight in LBs: 0.2
- Amperage: 20A
- Flammability: UL 94 V2.
- Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
- Voltage: 125V
- Current Interrupting: Certified for current interrupting at full rated current.
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
- Poles and Wires: 2 Pole, 3-Wire Grounding
- Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
- Product Identification: Ratings are a permanent part of the device.
- Horsepower: 1
- Rating: 20A, 125V
- Type: 2-Pole 3-Wire, Grounding
- Standard: NEMA
- Receptacle Style: Duplex
- Face Shape: Traditional
- Wiring Method: Back and Side
- Hospital Grade ?: No
- Receptacle Grade: Hubbell-Pro Series, Weather Resistant
- Face Style: Finder Groove Face
- Other Available Colors: Brown, Ivory, White, Gray, Black
- NEMA No.: 5-20R
- Certification: UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
- Top Material: Nylon
- Base Material: Nylon
- Power Contacts Material: .030" (.8) Brass
- Mounting Strap Material: .040" (1) Steel (Galvanized)
- Auto Ground Clip Material: Stainless Steel
- Mounting Screw Material: Steel-Zinc Plated
- Dielectric Voltage: Withstands 2,000V minimum.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5362GYWR . Santa Clara Systems carries 10,220 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
