Out of Stock

5252ABLK

Hubbell - Control

Current response time:

16 Minutes 5 Seconds

Description: Control
Specifications Description: SelectSpec light industrial, commercial and hospital grade receptacles are ideal for any project where ease of wiring, durability and reliability are required. The impact resistant nylon face is available in a variety of colors to blend into the dcor of office buildings, administrative areas, schools, government facilities and retail spaces.
Flammability: UL 94V2
Operating Temperatures: Maximum Continuous 60 deg. C, minimum -40 deg. c. (w/o impact).
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL 498 (Brass, White, Green).
Temperature Rise: Max 30 deg. C temperature rise at full rated current after 50 cycles of overload at 150% of rated direct current.
Terminal Accommodation: #14 to #10 AWG Copper Conductors Only.
Product Identification: Ratings are a permanent part of the device.
Max Working Voltage: 250V AC or DC
SELECTSPEC Product Type: Straight Blade Products

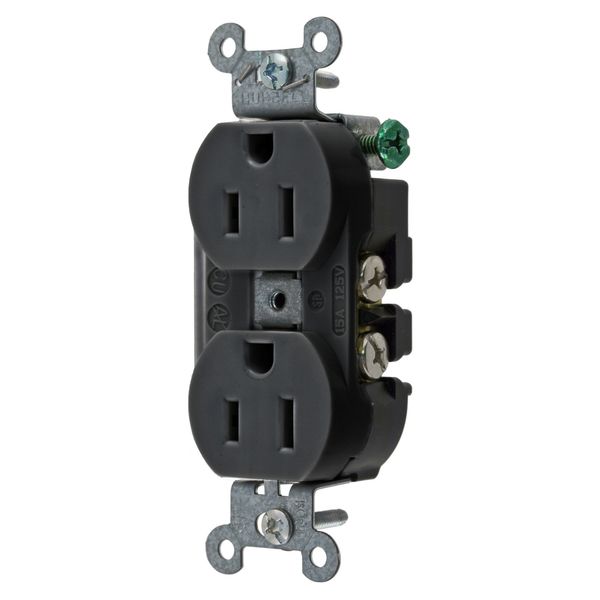

Straight Blade Product: Duplex Receptacle
Straight Blade Product Grade: Light Industrial

Straight Blade Product Style: Smooth Face, Back and Side Wired
Straight Blade Receptacle Rating: 15A, 125V
Straight Blade Receptacle Wiring Scheme: 2 Pole, 3 Wire Grounding
Straight Blade NEMA Configuration: 5-15R
Straight Blade Receptacle Color: Black
Straight Blade Listings and Approvals: UL Listed Fed Spec, CSA Certified
Features: Multiple Drive Screws, Pre-Tensioned Ground Contact, Large Oxide Cutting Terminal Screws, High Grade, Bronze Alloy Triple Wire Power Contacts.
Face: High Impact-Resistant Chemical-Resistant Nylon
Base: Thick Walled High Impact Resistant Nylon
Contacts/Blade Material: Brass Alloy
Mounting Yoke: Steel-Zinc Plated
Dielectric Voltage: Withstands 2,000V Minimum

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5252ABLK . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
