07401025

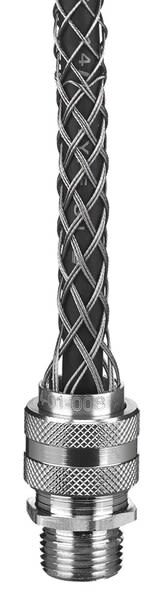

Hubbell - Deluxe Cord Grip

Current response time:

7 Minutes 56 Seconds

Description: Deluxe Cord Grip
Specifications Description: Deluxe Cord Grips completely eliminate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out, and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings.
UPC Number: 78358532206
Weight in LBs: 0.3
Product Type: Deluxe Cord Grips
Operating Temperature: -30F to +225F (-34C to +107C)
Thread Type: N.P.T.
Grip Style and Material: Straight Aluminum Connector Stainless Grip
Grip Cord Range (Diameter): .875"- 1.000" (2.22- 2.54)
Grip Thread Size: 1"
Deluxe Grip Form Size: F4
Recommended Knockout Hole Size: 1.359 to 1.406 (3.45 - 3.57)

Mesh Grip Flammability Rating: UL 94-HB
Fitting Flammability Rating: UL 94-V2
Hazardous Locations: Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2.
Dimension A: 1.75" (4.44) Dia.
Dimension B: 1.60" (4.06) Ref.
Dimension C: .71" (1.80)
Dimension D: 1.02" (2.59) Throat Dia.
Dimension E A/C: 1.81" (4.60)
Dimension E A/F: 1.62" (4.11)
Dimension F: 1" - 11 1/2
Certifications: UL Listed CSA Certified
