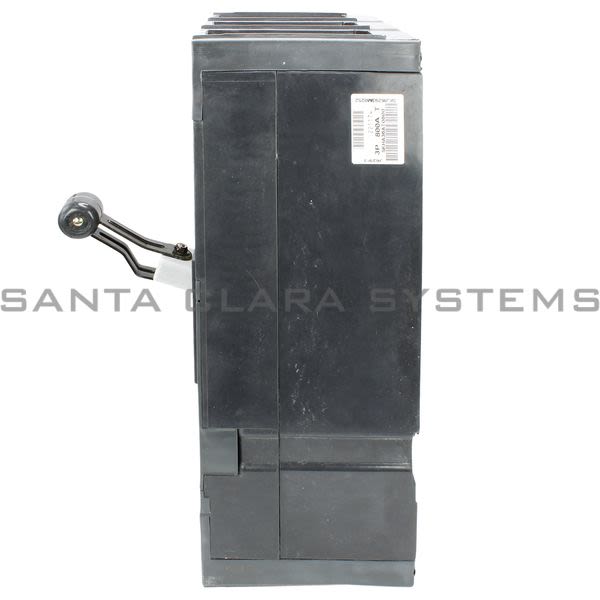

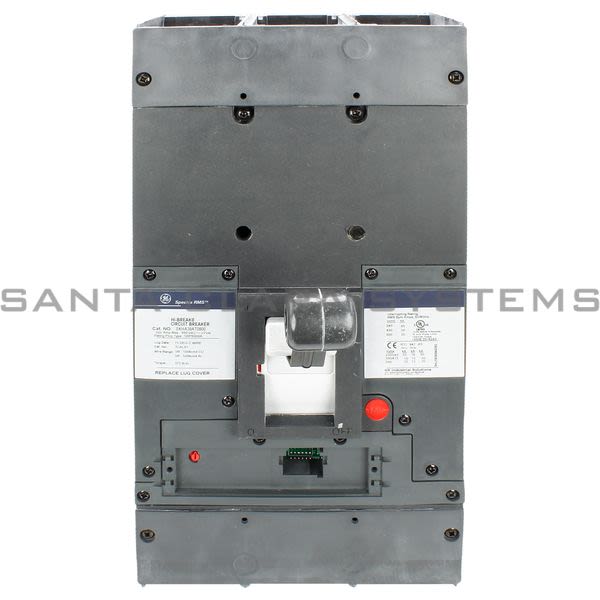

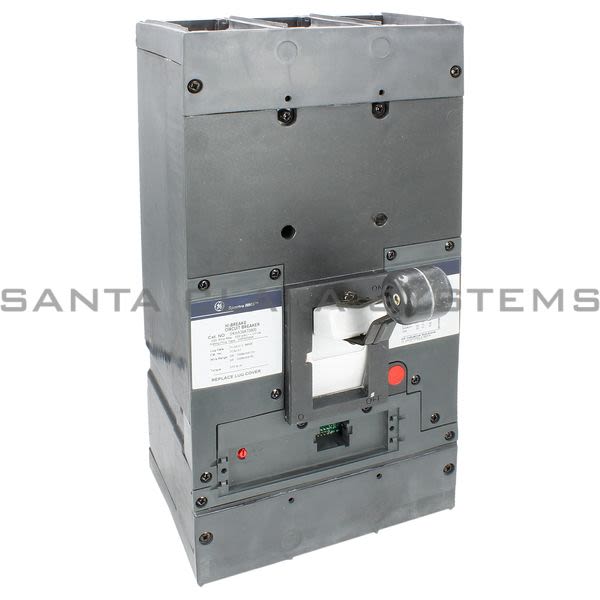

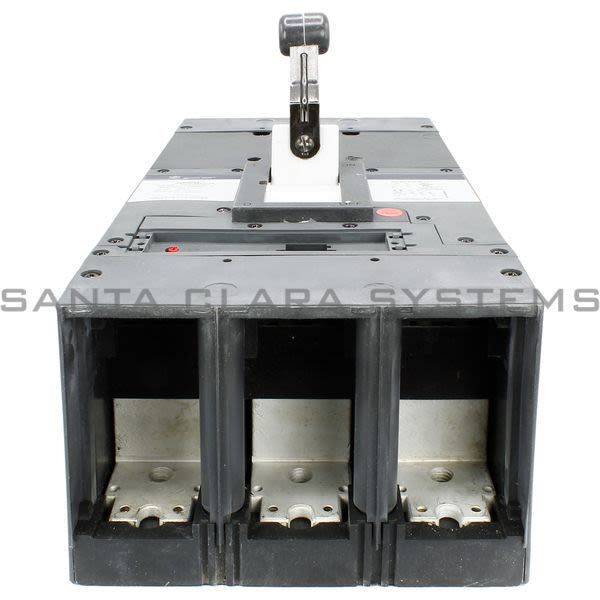

SKHA36AT0800

General Electric - Circuit Breaker 800Amp 3Pole 600VAC

Current response time:

7 Minutes 50 Seconds

Description: Circuit Breaker 800Amp 3Pole 600VAC
Type of Device: Molded Case Circuit Breaker; 800 Amp, 600 Volt AC, 3-Pole
Product Description: General Electric Spectra RMS? SKH 3-Pole Molded case circuit breaker features a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker current rating. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents. It has an interchangeable trip style and includes long/short/instantaneous trip time. It has AC voltage rating of 600 Volts and current rating of 800 Amps. The breaker has interrupting rating of 25 kilo-Amps. It measures 8.250 Inch x 5.500 Inch x 15.500 Inch. It is UL and CE approved.
Height: 10.0000
Width: 11.5000
Length: 17.2500
UPC: 78316421175
Voltage Rating: 600 Volt AC
Standards: UL File E11592, CSA File LR40350
Amperage Rating: 800 Amp

Application: For Reverse Feed
Commodity Code: 32742
Frame: SK1200
Gross Weight: 39.500
Interrupt Rating: 25 Kilo-Amp
Interrupting Rating: 65 Kiloampere At 240 Vac, 50 Kiloampere At 480 Vac, 25 Kiloampere At 600 VAC (Ul); 65 Kiloampere At 220 to 240 Vac, 50 Kiloampere At 380 to 415 Vac, 25 Kiloampere At 500 VAC (Iec)
Load Rating: HACR
Trip Range: Interchangeable
Trip Type: Electronic, Interchangeable
