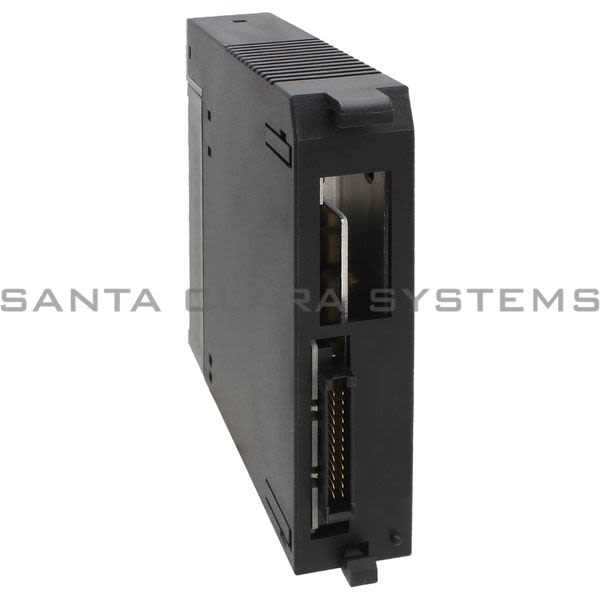

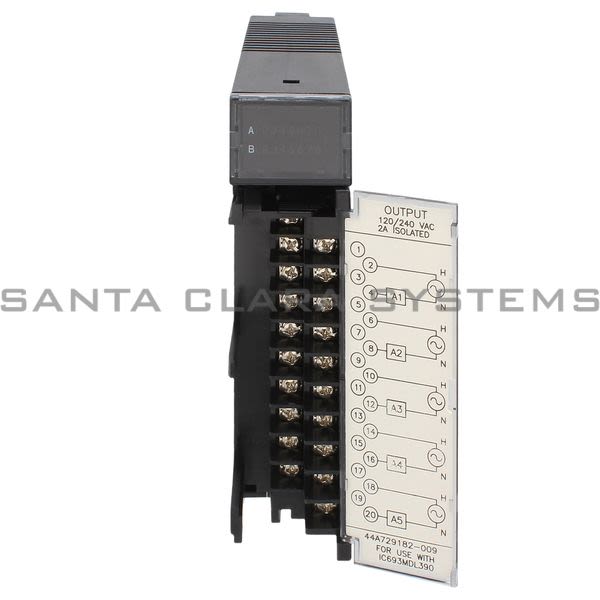

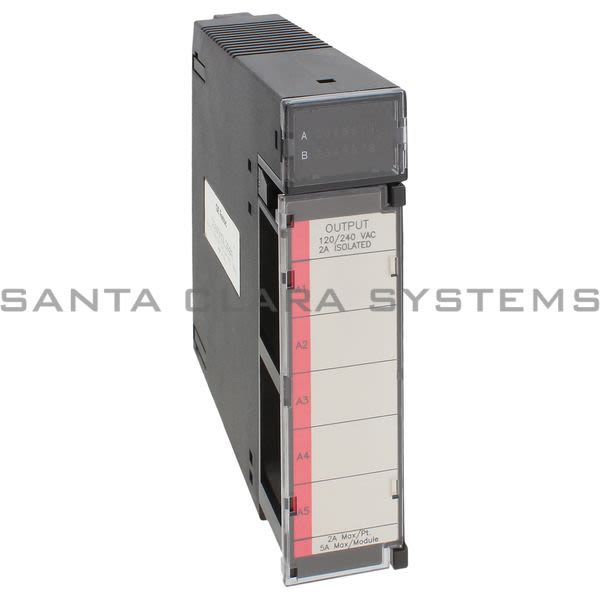

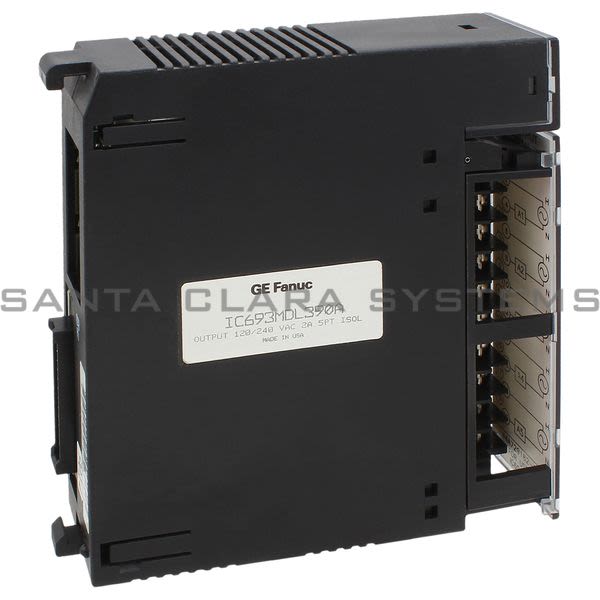

IC693MDL390

General Electric - 120/240 VAC Isolated Output

Current response time:

6 Minutes 12 Seconds

Description: 120/240 VAC Isolated Output
Type of Device: 120/240 Volt AC Isolated Output - 2 Amp, 5 Point
Product Description: The 120/240 volt, 2 Amp Isolated AC Output module for the Series 90-30 Programmable Logic Controller provides 5 isolated output points with each point having a separate common. Each output circuit is isolated from the others relative to the AC power source; commons are not tied together inside the module. This allows each output circuit to be used on different phases of the AC supply, or they can be powered from the same supply. Outputs are individually fused with a 3 amp fuse and an RC snubber is provided for each output to protect against transient electrical noise on the power line. This module provides a high-degree of inrush current (greater than 10x the rated current) making the outputs suitable for controlling a wide range of inductive and incandescent loads. AC Power to operate the loads connected to the outputs must be supplied by the user.
Output Current: 2 amps maximum per point
Rate Voltage: 120/240 volts AC
Output Voltage Range: 85 to 264 volts AC, 50/60 Hz
Outputs per Module: 5 (each output isolated from the others)
Isolation: 1500 volts between field side and logic side; 500 volts between each output

Inrush Current: 25 amps maximum for one cycle
Minimum Load Current: 100 mA
Output Voltage Drop: 1.5 volts maximum
Output Leakage Current: 3 mA maximum at 120 volts AC; 6 mA maximum at 240 volts AC
On Response Time: 1 ms maximum
Off Response Time: 1/2 cycle maximum
Power Consumption: 110 mA (all outputs on) from 5 volt bus on backplane
Techincal Information: This module requires an AC power source, it can not be used with a DC power source.
