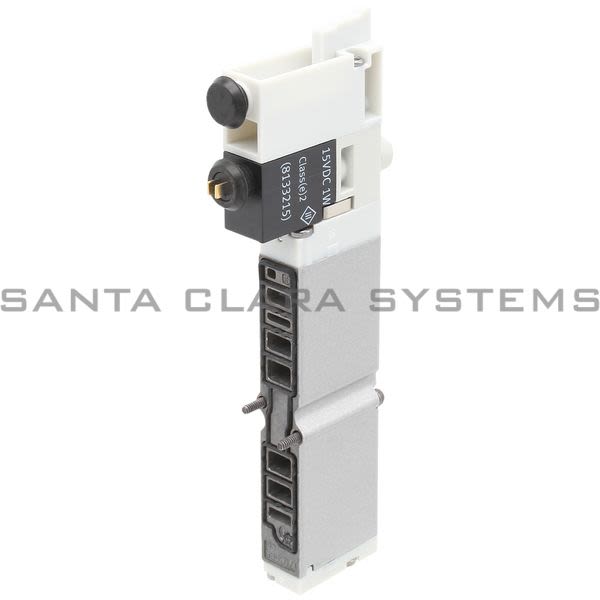

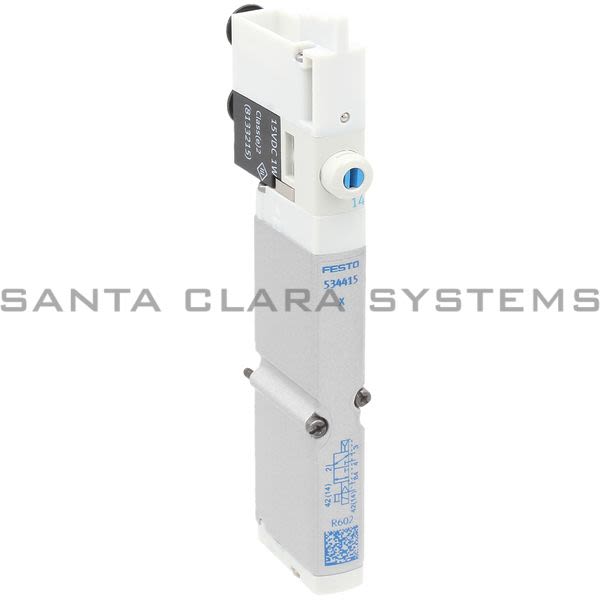

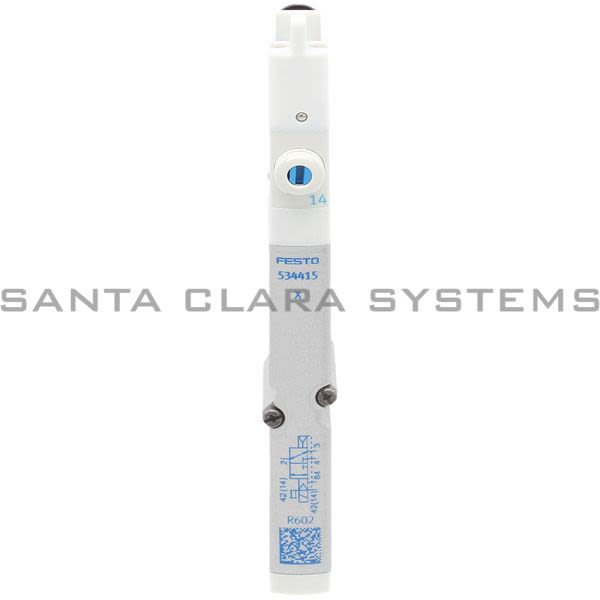

VMPA1-M1H-X-PI

Festo - Solenoid Valve

Current response time:

14 Minutes 12 Seconds

Description: Solenoid Valve
Valve function: 3/2 closed, monostable
Relative air humidity: Max. 90 % at 40 �C
Lap: Overlap
Actuation type: Electrical
Valve size: 10 mm
Standard nominal flow rate: 255 l/min
Operating voltage: 24V DC
Operating pressure: -0.9 bar ...10 bar
Design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP65 as per IEC 60529
Certification: c UL us - Recognized (OL)
Type code: VMPA1
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting Non-detenting

Type of control: Pilot-controlled
Flow direction: Reversible
Symbol: 991175
Signal status display: yes
Pilot pressure: 3 bar ...8 bar
Suitability for vacuum: yes
Standard nominal flow rate with QS-6: 255 l/min
Switching time off: 20 ms
On switching time: 10 ms
Max. positive test pulse with 0 signal: 400 �s
Max. negative test pulse on 1 signal: 200 �s
Permissible voltage fluctuations: +/- 25 %
Max. tightening torque for valve mounting: 0.25 Nm
Product weight: 49 g
Type of mounting: With through-hole
Seals material: NBR
Housing material: Die-cast aluminum
