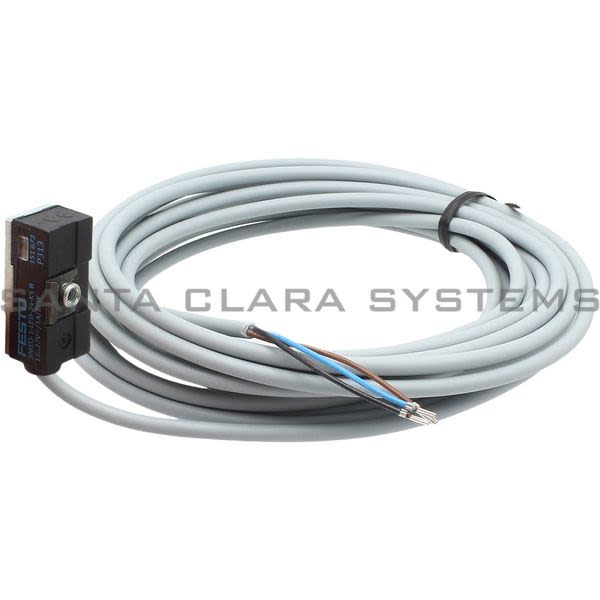

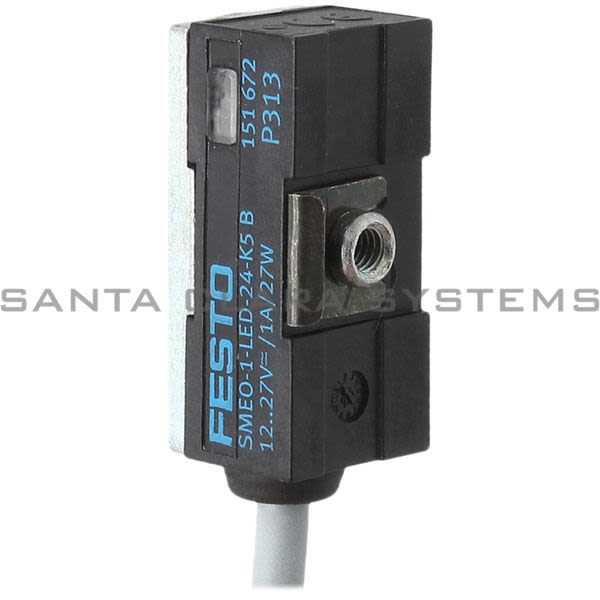

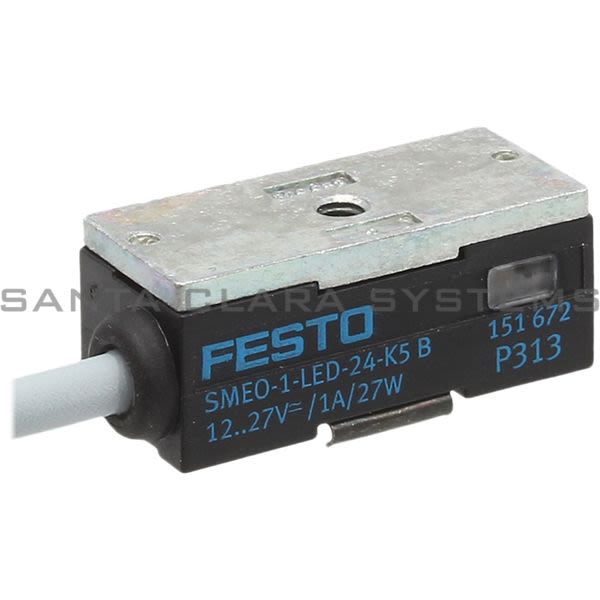

SMEO-1-LED-24-K5-B

Festo - Proximity Switch

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Proximity Switch
Ambient temperature: -20 C ...70 C

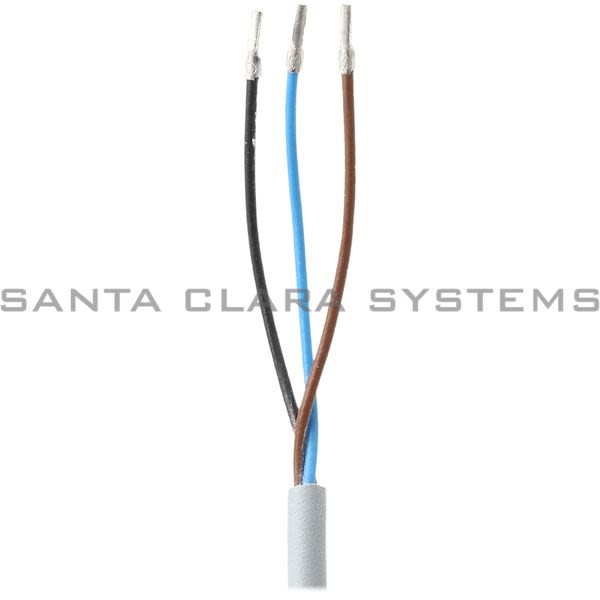

Electrical connection: Cable 3-wire
Authorisation: RCM Mark
Materials note: Free of copper and PTFE
Switch output: with contact, bipolar
Switch-on time: <= 0.5 ms
Max. contact rating AC: 27 VA
Max. contact rating DC: 27 W
Operating voltage range DC: 12 ... 27 V
Type code: SMEO
Design: Block design
Symbol: 991145
Certification: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive
Measuring principle: Magnetic reed
Switching output: Contact-based, bipolar
Switching element function: N/O contact
Reproducibility of switching value: +/- 0.1 mm

On time: 0.5 ms
Max. output current: 1000 mA
Min. switching capacity AC: 27 VA
Max. switching capacity DC: 27 W
Short-circuit protection: no
Overload protection: Not available
Operating voltage range AC: 12 V ...27 V
DC operating voltage range: 12 V ...27 V
Reverse polarity protection: no
Connection outlet orientation: Longitudinal
Cable length: 5 m
Material of cable sheath: TPE-U(PUR)
Type of mounting: With accessories
Mounting position: Any
Product weight: 130 g
Housing material: Die-cast zinc
Switching status indication: LED yellow
Ambient temperature with flexible cable installation: -5 C ...70 C
Degree of protection: IP67
