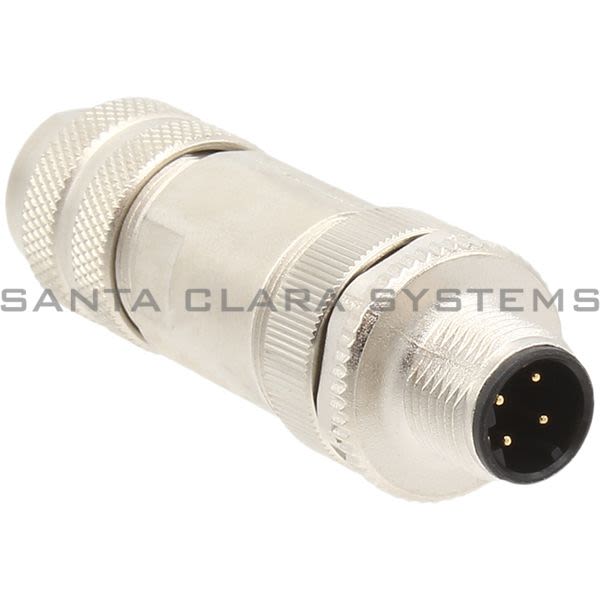

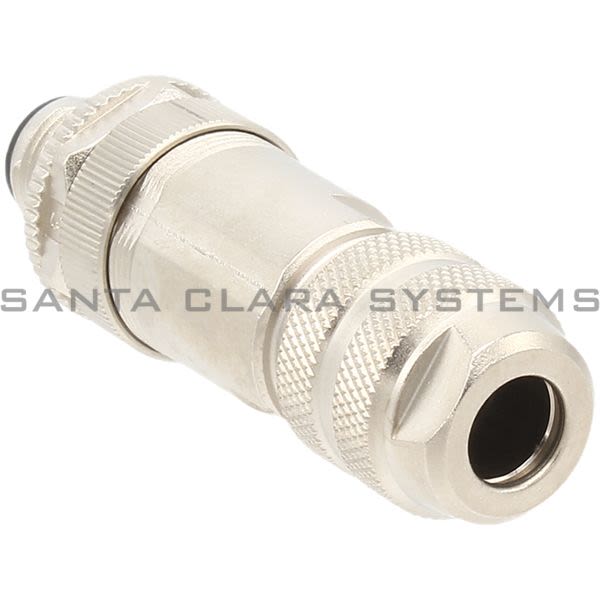

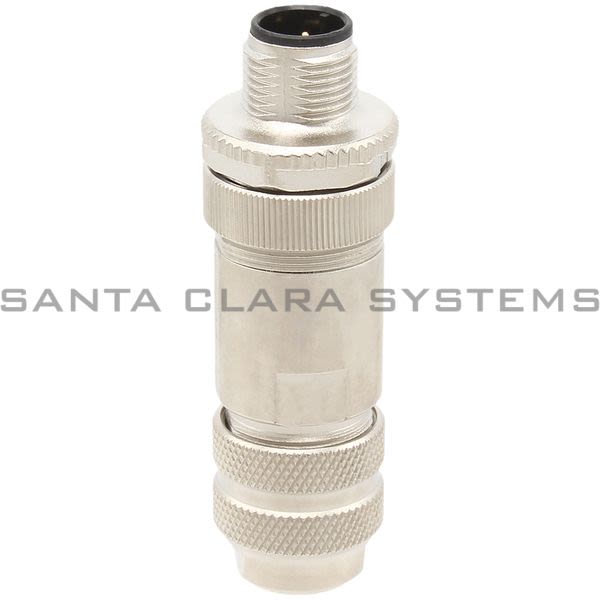

NECU-M-S-D12G4-C2-ET

Festo - Plug

Current response time:

By 5AM PT on Monday

Emergency?

Description: Plug
Ambient temperature: -25 C ... 85 C
Based on norm: EN 61076-2-101 EN 61984
Product weight: 44.3 g
Electrical connection 1: Straight plug, M12x1, 4-pin, D-coded, shieldable
Plug coding: D
Electrical connection 2: Screw terminal, can be shielded
DC operating voltage range: 0 V ... 250 V
Operating voltage range AC: 0 V ... 250 V
Surge resistance: 2.5 kV
Transmission characteristics: DIN EN 50173/CAT 5

Approved cable diameter: 6 mm ... 8 mm
Connection cross section: 0.14 mm ... 0.75 mm
Degree of protection: IP67
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS-compliant
Contamination level: 3
Corrosion resistance class (CRC): 1 - Low corrosion stress
Housing material: Die-cast zinc, nickel-plated
Material of pin contacts: Brass, gold-plated

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NECU-M-S-D12G4-C2-ET . Santa Clara Systems carries 3,524 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
