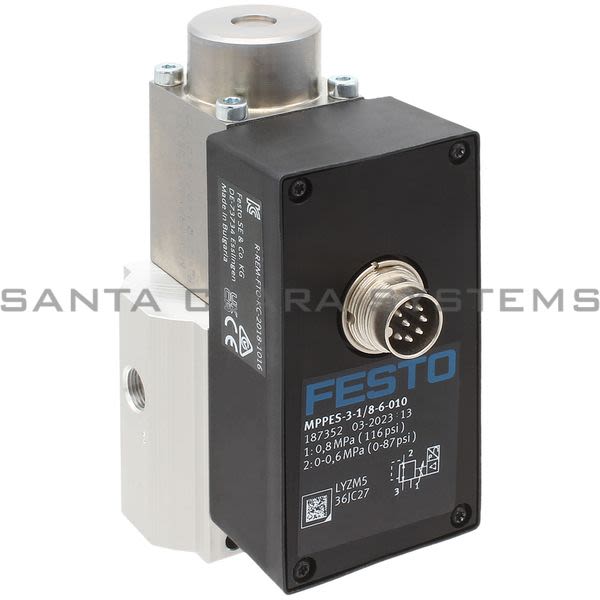

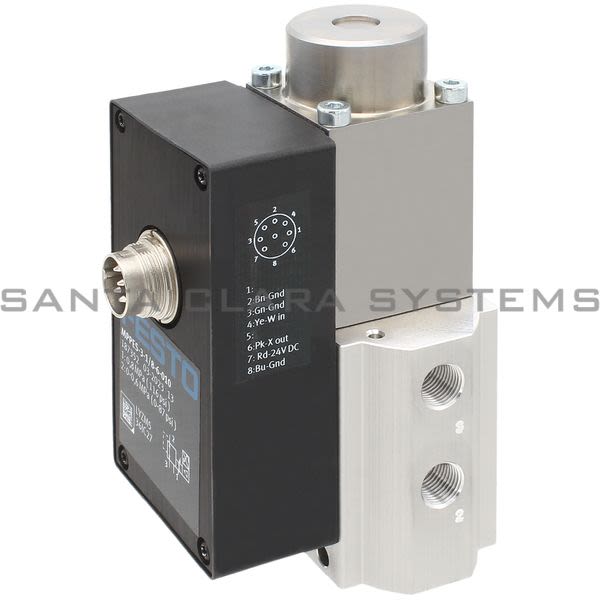

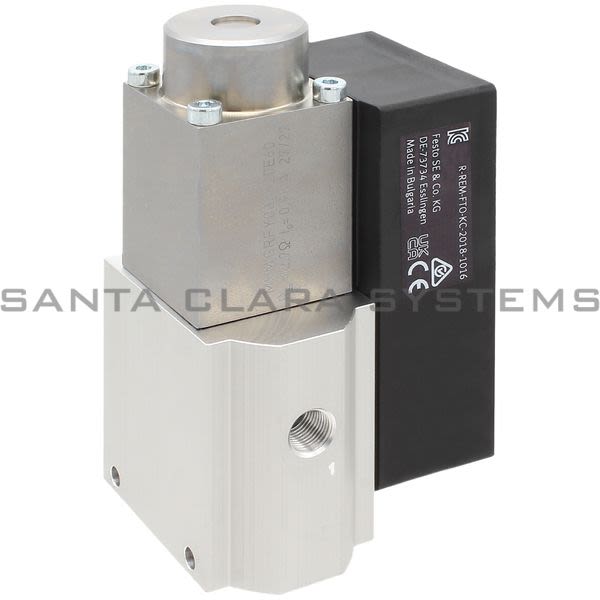

MPPES-3-1-8-6-010

Festo - Proportional Pressure Control Valve

Current response time:

9 Minutes 45 Seconds

Description: Proportional Pressure Control Valve
Ambient temperature: 0 C ... 50 C
Electrical connection: 8-pin M16x0.75 Plug as per DIN 45326 Round design
Nominal width pressurization: 3 mm
Exhaust nominal width: 2 mm
Actuation type: Electrical
Sealing principle: Soft
Mounting position: Any
Structural design: Directly controlled piston regulator
Short-circuit protection: For all electrical connections
Safety instructions: MPPES safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar.
Symbol: 00995305
Reverse polarity protection: For all electrical connections
Valve function: 3-way proportional pressure control valve closed
Operating pressure: 0.8 MPa
Pressure regulation range MPa: 0 MPa ... 0.6 MPa
Pressure regulation range: 0 bar ... 6 bar
Inlet pressure 1: 7 bar ... 8 bar
Inlet pressure 1 MPa: 0.7 MPa ... 0.8 MPa
Max. pressure hysteresis: 0.001 MPa
Switching time off: 280 ms
On switching time: 210 ms

DC operating voltage range: 18 V ... 30 V
Nominal operating voltage DC: 24 V
Residual ripple: 10 %
Setpoint/actual values: Voltage type 0 - 10 V
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Certification: RCM compliance mark
KC characters: KC EMC
CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC To UK RoHS instructions
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: 0 C ... 60 C
Degree of protection: IP65
Product weight: 915 g
Type of mounting: With through-hole
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Pneumatic connection 3: G1/8
Note on materials: RoHS-compliant
Housing material: Wrought aluminum alloy
Diaphragm material: NBR
