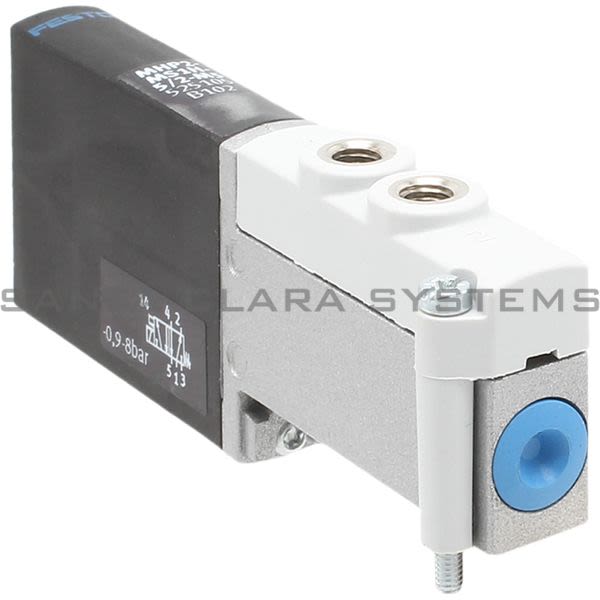

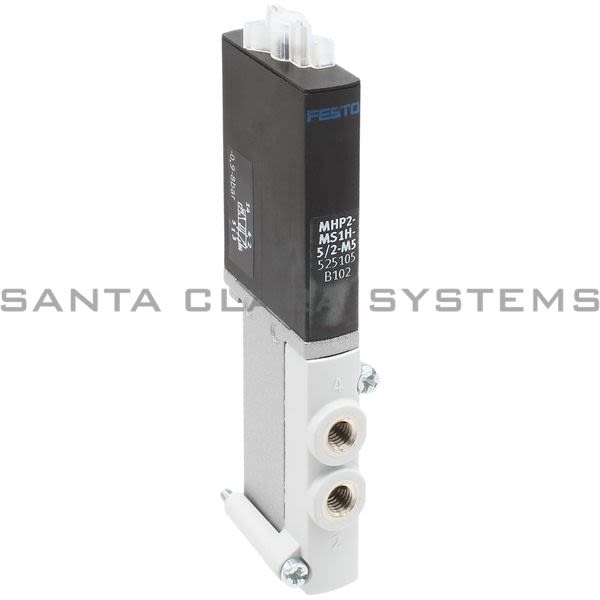

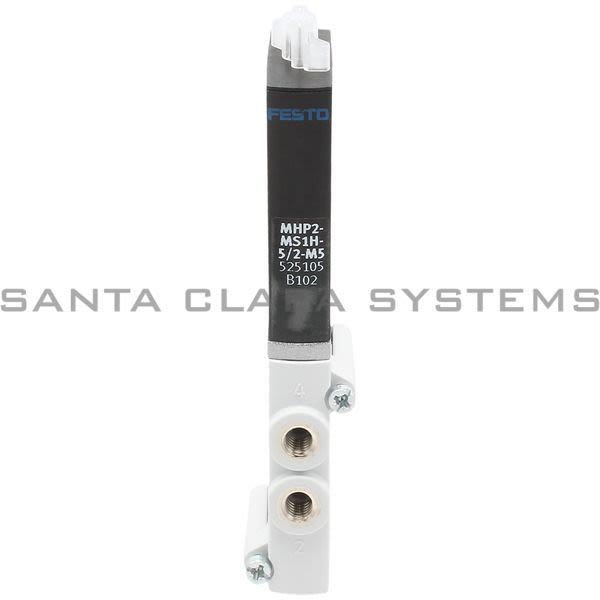

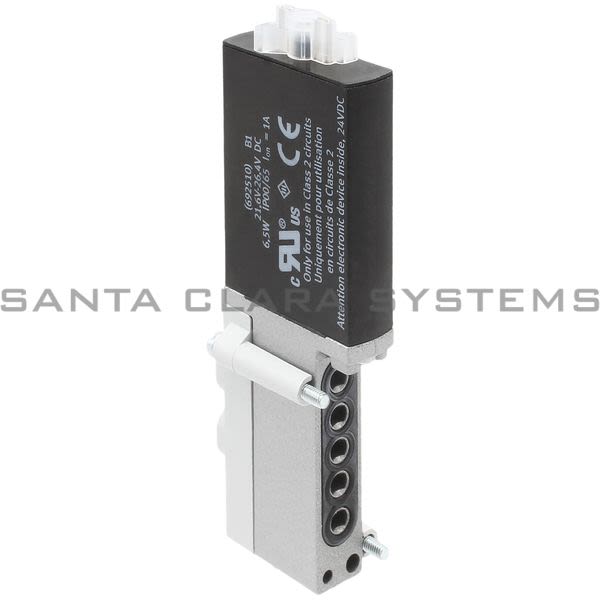

MHP2-MS1H-5-2-M5

Festo - Solenoid Valve

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Solenoid Valve
Width: 10 mm
Ambient temperature: -5 C ... 40 C
Electrical connection: 2-pin Plug
Valve function: 5/2, monostable
Actuation type: Electrical
Standard nominal flow rate: 90 l/min
Pneumatic working port: M5
Operating voltage: 24V DC
Operating pressure: -0.9 bar ... 8 bar
Structural design: Pressure-relieved poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certification: RCM compliance mark c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC To UK RoHS instructions
Nominal width: 2 mm
Width dimension: 14 mm
Note on grid dimension: Minimum distance between the valves is 4 mm
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Direct
Flow direction: Non-reversible
Symbol: 00991129
Lap: Underlap
Reverse polarity protection: Bipolar
Additional functions: Spark suppression Holding current reduction Protective circuit
Max. switching frequency: 300 Hz

Switching time off: 1.7 ms
On switching time: 1.9 ms
Tolerance for switching time off: +10 %/-30 %
Tolerance for ON switching time: +10%/-30%
Switching time variation at 1 Hz and above: 0.2 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: low-current phase 1.625 W, high-current phase 6.5 W
Permissible voltage fluctuations: +/- 10 %
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Restricted ambient and media temperature: Depending on the switching frequency (see diagram)
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 6 according to ISO 14644-1
Temperature of medium: -5 C ... 40 C
Max. tightening torque for valve mounting: 0.4 Nm
Max. tightening torque of pneumatic fitting: 1.5 Nm
Product weight: 70 g
Type of mounting: On PR rail
Pneumatic connection 1: Sub-base
Pneumatic connection 2: M5
Pneumatic connection 3: Sub-base
Pneumatic connection 4: M5
Pneumatic connection 5: Sub-base
Note on materials: RoHS-compliant
Seals material: HNBR NBR
Housing material: Die-cast metal, coated
Material of screws: Steel, galvanized
