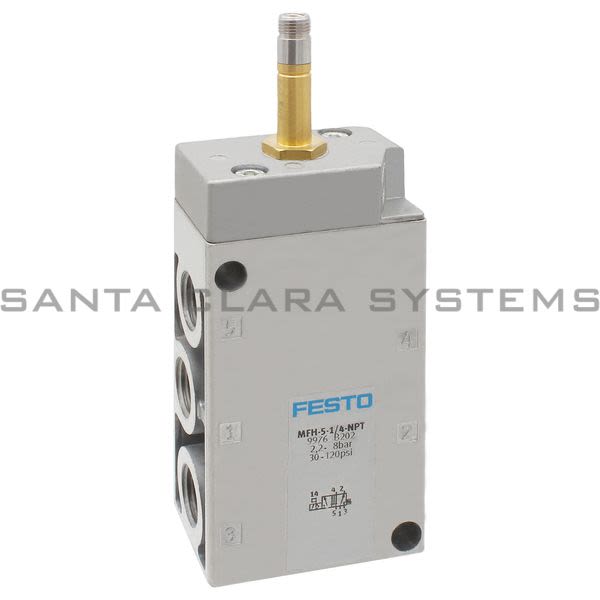

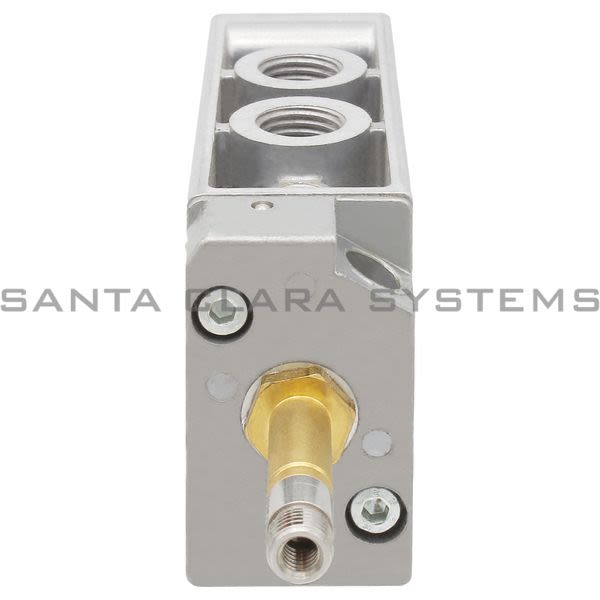

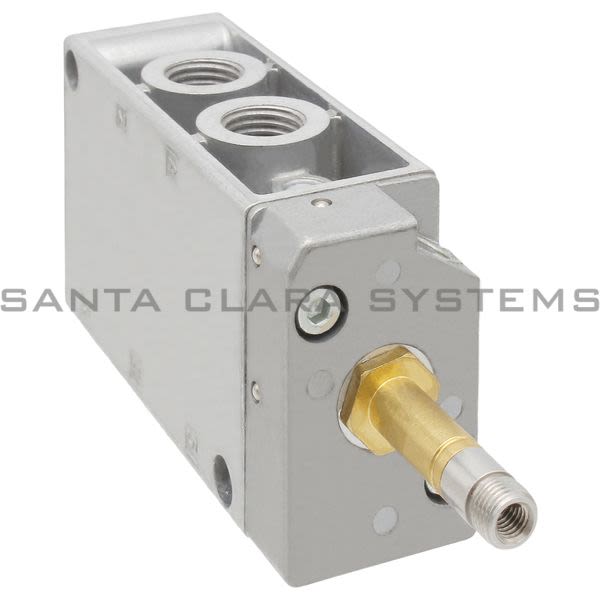

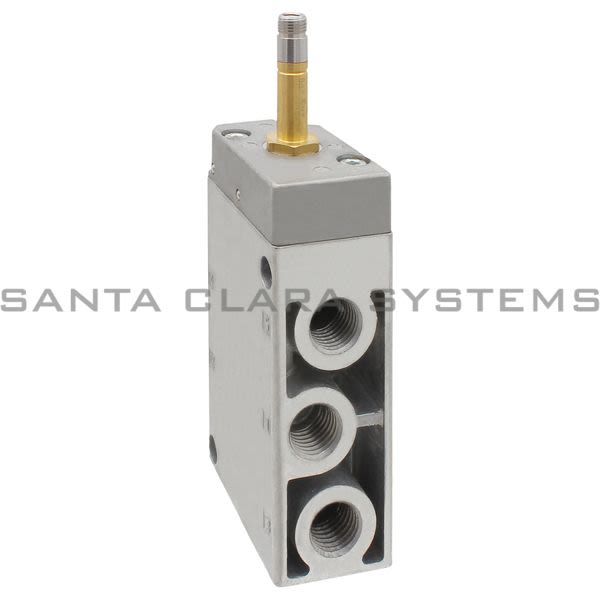

- Description: Air Solenoid Valve
- Width: 30.5 mm
- Ambient temperature: -5 C ... 40 C
- Electrical connection: Via F coil, to be ordered separately
- Valve function: 5/2, monostable
- Actuation type: Electrical
- Standard nominal flow rate: 1000 l/min
- Pneumatic working port: 1/4 NPT
- Operating voltage: Via solenoid coil, to be ordered separately
- Operating pressure: 0.25 MPa ... 0.8 MPa, 2.5 bar ... 8 bar
- Structural design: Plate seat
- Reset method: Mechanical spring
- Certification: C UL us - Recognized (OL)
- Degree of protection: IP65
- Nominal width: 7 mm
- Width dimension: 32 mm
- Exhaust air function: With flow control option
- Sealing principle: Soft
- Mounting position: Any
- Manual override: Detenting
- Type of control: Pilot-controlled
- Flow direction: Non-reversible
- Symbol: 00991035
- Lap: Underlap
- B-value: 0.19
- C value: 4.49 l/sbar
- Switching time off: 29 ms
- On switching time: 9 ms
- Max. positive test pulse with 0 signal: 2200 s
- Max. negative test pulse on 1 signal: 3700 s
- Coil characteristics: See solenoid coil, to be ordered separately
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Storage temperature: -20 C ... 60 C
- Temperature of medium: -10 C ... 60 C
- Product weight: 290 g
- Type of mounting: Optionally: On terminal strip, With through-hole
- Pilot exhaust air port 84: M5
- Pneumatic connection 1: 1/4 NPT
- Pneumatic connection 2: 1/4 NPT
- Pneumatic connection 3: 1/4 NPT
- Pneumatic connection 4: 1/4 NPT
- Pneumatic connection 5: 1/4 NPT
- Note on materials: RoHS-compliant
- Seals material: NBR
- Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MFH-5-1-4-NPT . Santa Clara Systems carries 5,373 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
