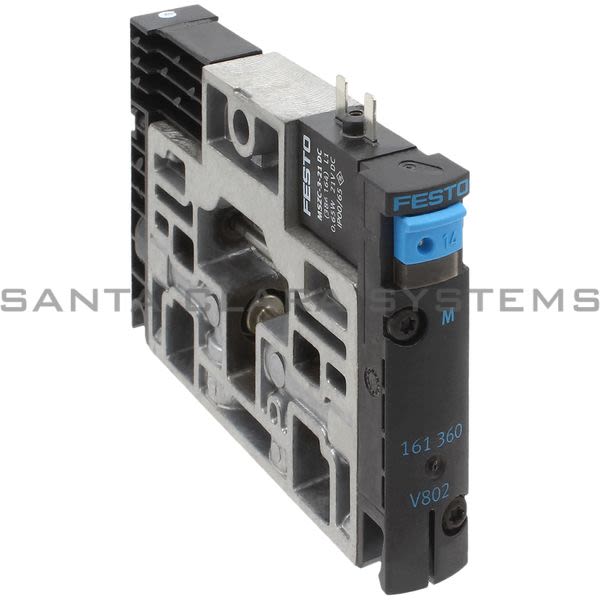

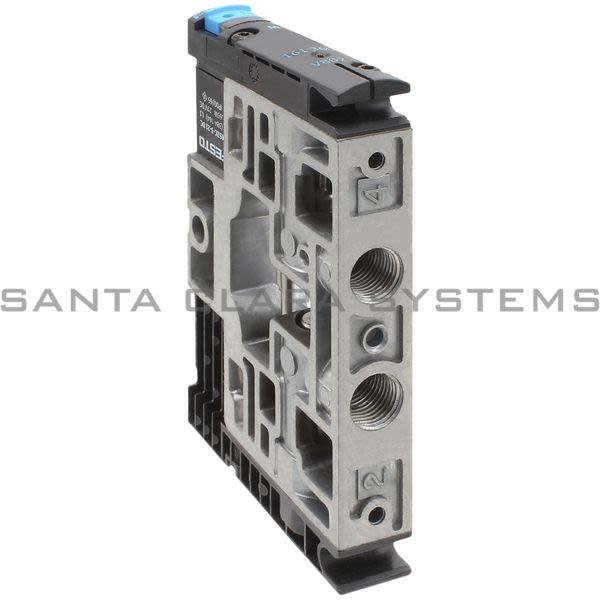

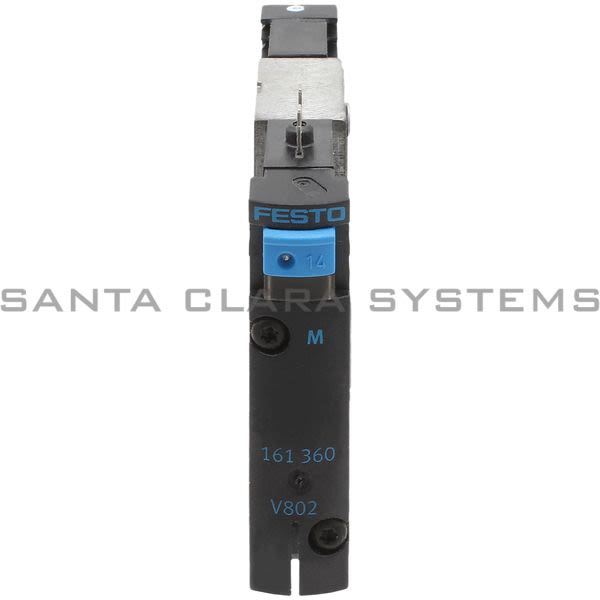

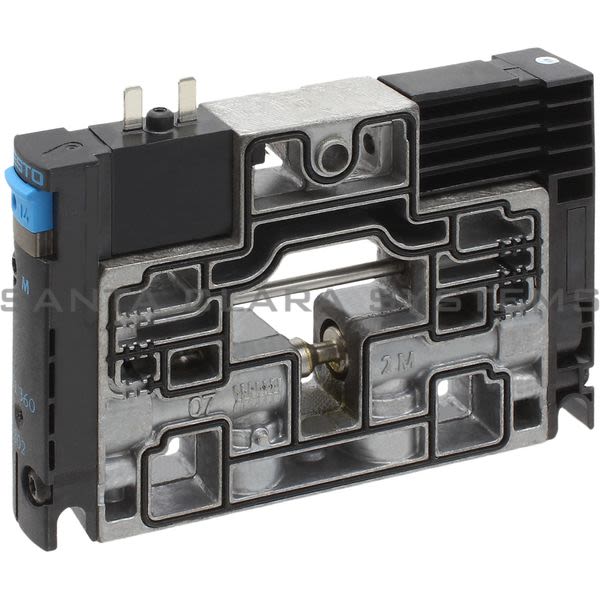

CPV14-M1H-5LS-1-8

Festo - Air Solenoid Valve

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Air Solenoid Valve
Ambient temperature: -5 C ... 50 C
Valve function: 5/2, monostable
Actuation type: Electrical
Valve size: 14 mm
Standard nominal flow rate: 800 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa ... 1 MPa
Structural design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP65
Nominal width: 6 mm
Exhaust air function: Without flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: External Internal
Flow direction: Non-reversible
Symbol: 00991027
Lap: Overlap
Pilot pressure MPa: 0.3 MPa ... 0.8 MPa
Pilot pressure: 3 bar ... 8 bar
B-value: 0.42
C value: 3.2 l/sbar

Switching time off: 35 ms
On switching time: 25 ms
Duty cycle: 100% in combination with holding current reduction
Electrical power consumption: 0.65 W
Max. positive test pulse with 0 signal: 1400 s
Max. negative test pulse on 1 signal: 400 s
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 C ... 40 C
Temperature of medium: -5 C ... 50 C
Product weight: 120 g
Type of mounting: With through-hole
Pilot air port 12/14: Common port
Pilot exhaust air port 82/84: Common port
Pneumatic connection 1: Common port
Pneumatic connection 2: G1/8
Pneumatic port 3/5 combined: Common port
Pneumatic connection 4: G1/8
Note on materials: RoHS-compliant
Seals material: HNBR NBR
Housing material: Die-cast aluminum Brass POM PPS Steel
