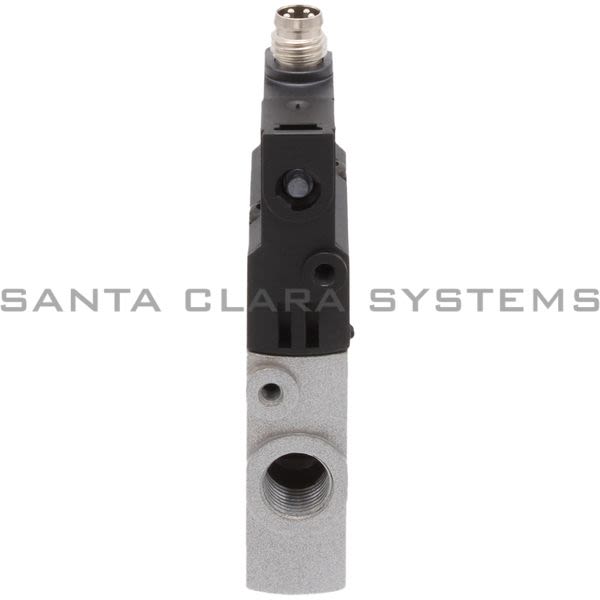

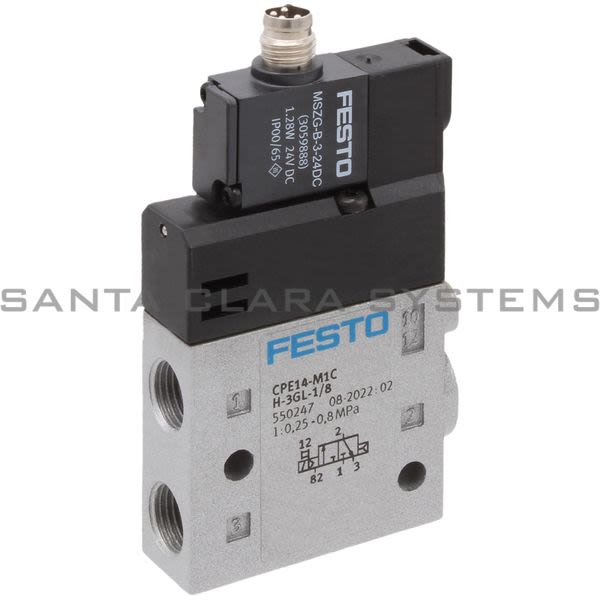

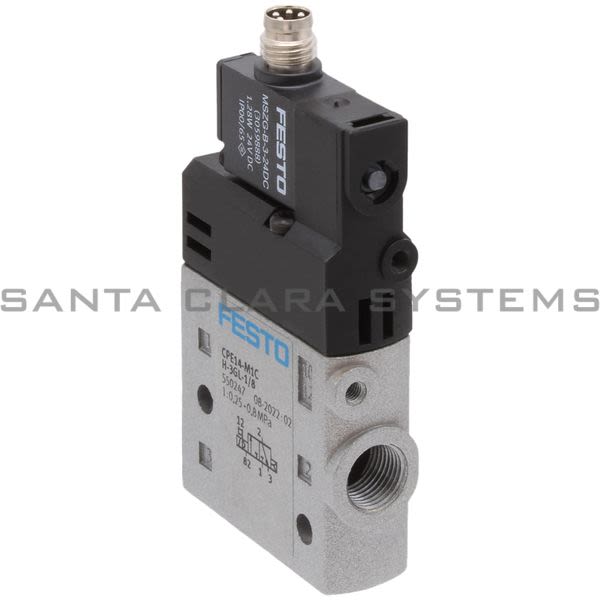

CPE14-M1CH-3GL-1-8

Festo - Air Solenoid Valve

Current response time:

16 Minutes 53 Seconds

Description: Air Solenoid Valve
Width: 14 mm
Ambient temperature: -5 C ...50 C
Electrical connection: M8x1 4-pin
Valve function: 3/2, closed, monostable
Maritime classification: See certificate
Lap: Overlap
Actuation type: Electrical
Standard nominal flow rate: 900 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: 2.5 bar ...8 bar
Design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP67 IP65 With plug socket as per IEC 60529
Nominal width: 6 mm
Type code: CPE14
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting Detenting via accessory
Type of control: Pilot-controlled

Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 991655
Valve position ID: Label holder
Switching time off: 27 ms
On switching time: 16 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1200 s
Max. negative test pulse on 1 signal: 900 s
Coil characteristics: 24 V DC: 1.28 W
Temperature of medium: -5 C ...50 C
Max. tightening torque plug: 0.4 Nm
Product weight: 60 g
Type of mounting: With through-hole
Pilot exhaust air port 82: M3
Pilot air port 12: M3
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Pneumatic connection 3: G1/8
Seals material: NBR
Housing material: Die-cast aluminum

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPE14-M1CH-3GL-1-8 . Santa Clara Systems carries 4,555 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
