SI5000

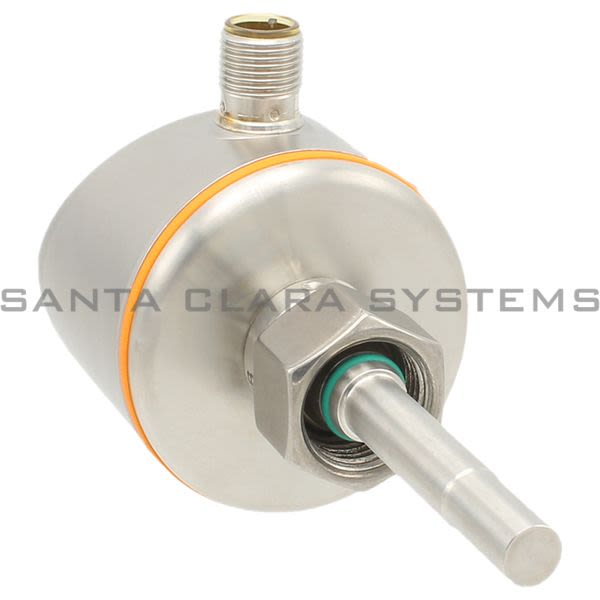

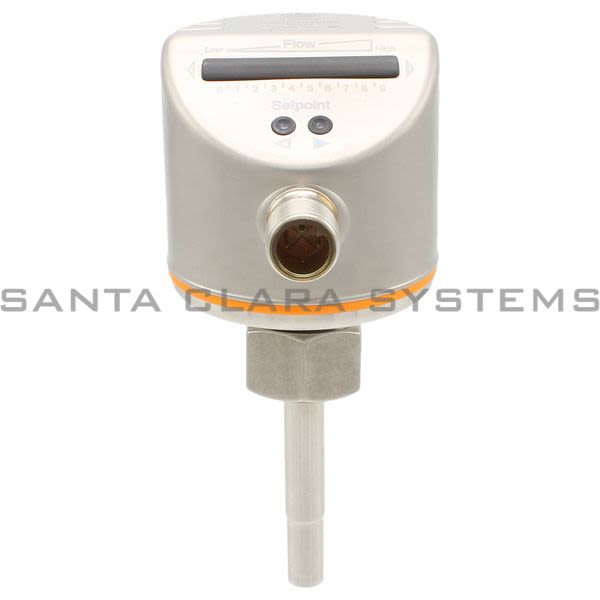

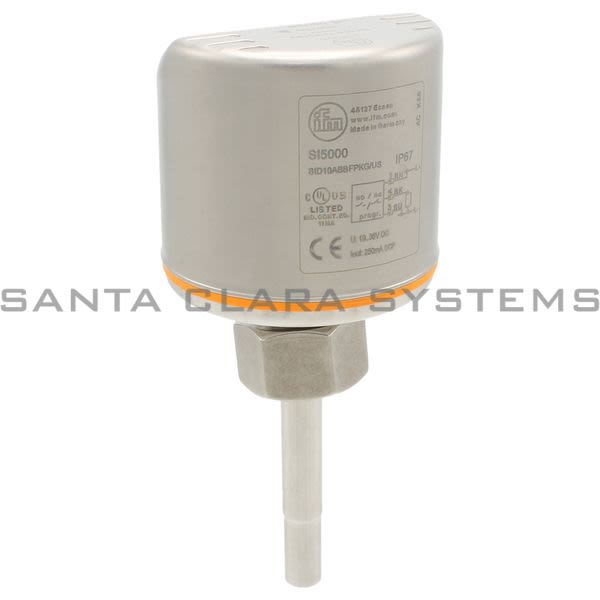

Efector - Flow Sensor | SID10ABBFPKG/US-100

Current response time:

16 Minutes 45 Seconds

Description: Flow Sensor | SID10ABBFPKG/US-100
Electrical Design: Pnp
Output Function: Normally Open / Closed; (Configurable)
Material: Stainless Steel (1.4404 / 316L); Stainless Steel (1.4310 / 301); Pc; Pbt-Gf20; Epdm/X
Media: Liquids; Gases
Medium Temperature [C]: -25...80
Pressure Rating [Bar]: 30
Operating Voltage [V]: 19...36 Dc
Current Consumption [Ma]: < 60
Protection Class: Iii
Reverse Polarity Protection: Yes
Power-On Delay Time [S]: 10
Number Of Inputs And Outputs: Number Of Digital Outputs: 1
Total Number Of Outputs: 1
Output Signal: Switching Signal
Number Of Digital Outputs: 1
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Probe Length L [Mm]: 45

Setting Range [Cm/S]: 200...3000
Greatest Sensitivity [Cm/S]: 200...800
Repeatability [Cm/S]: 1...5
Temperature Drift [Cm/S X 1/K]: 0.1; (For Water 5...100 Cm/S; 10...70 C)
Max. Temperature Gradient Of Medium [K/Min]: 300
Switch Point Accuracy [Cm/S]: 2... 10; (For Water 5...100 Cm/S; 25 C; Factory Setting)
Hysteresis [Cm/S]: 2...5; (For Water 5...100 Cm/S; 25 C; Factory Setting)
Response Time [S]: 1...10
Adjustment Of The Switch Point: Pushbuttons
Ambient Temperature [C]: -25...80
Storage Temperature [C]: -25...100
Protection: Ip 67
Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V
Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
Vibration Resistance: Din En 60068-2-6 20 G (55...2000 Hz)
Dimensions [Mm]: M18 X 1.5
Thread Designation: M18 X 1.5
Materials (Wetted Parts): Stainless Steel (1.4404 / 316L); O-Ring: Fkm 80 Shore A
Process Connection: M18 X 1,5 Internal Thread
Display: Function 10 X Led, Three-Colour
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM
