OGP200

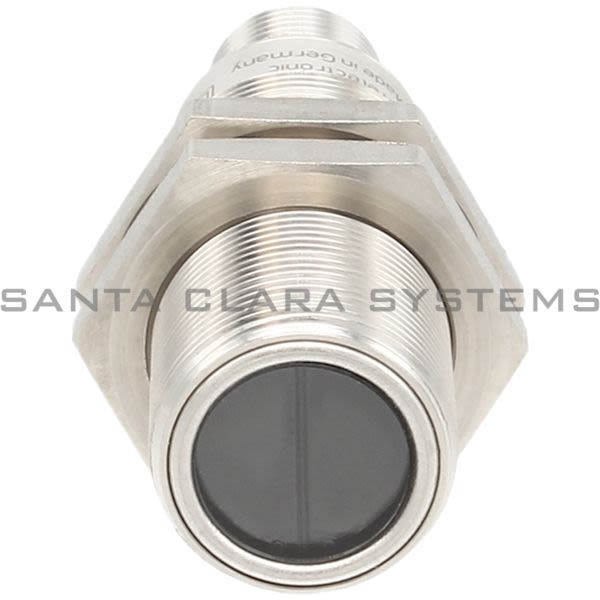

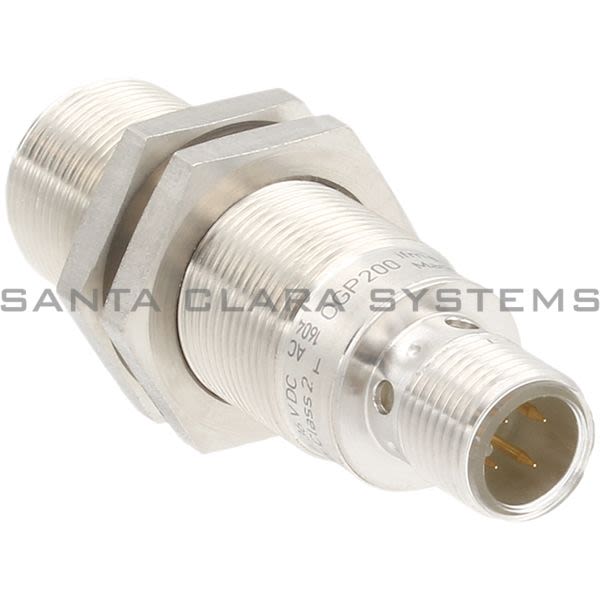

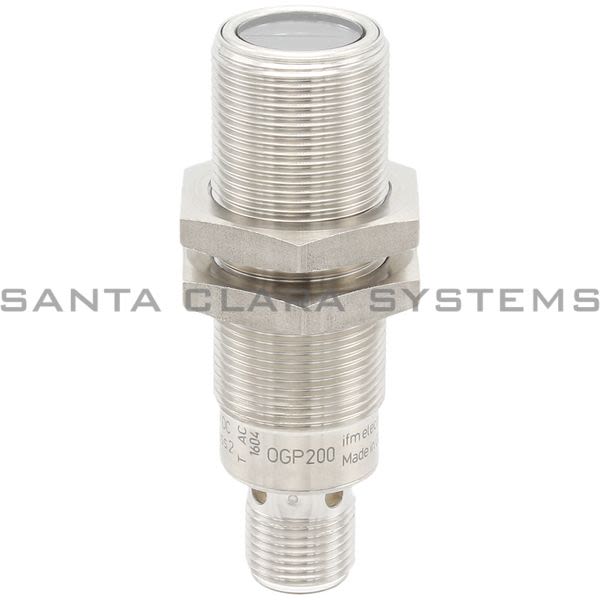

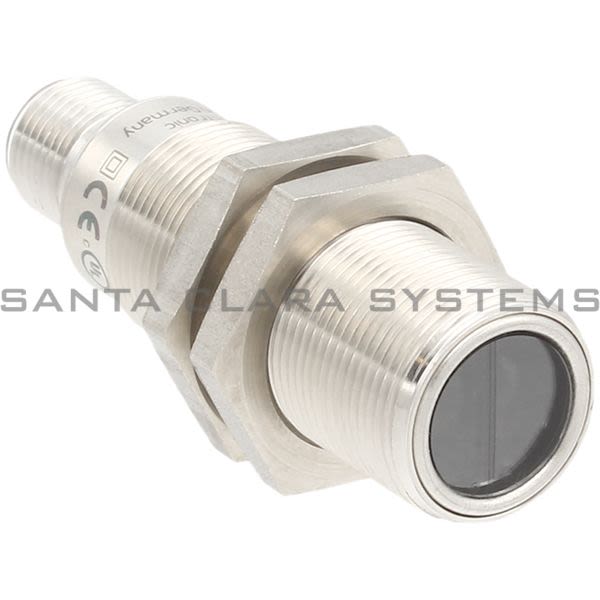

Efector - Retro-reflective Sensor | OGP-DPKG/US100

Current response time:

17 Minutes 22 Seconds

Description: Retro-reflective Sensor | OGP-DPKG/US100
Electrical Design: Pnp
Output Function: Dark-On Mode
Material: Housing: Stainless Steel (1.4404 / 316L)
Function Principle: Retro-Reflective Sensor
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: 15
Protection Class: Ii
Reverse Polarity Protection: Yes
Type Of Light: Red Light
Wave Length [Nm]: 624
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Switching Frequency Dc [Hz]: 1000
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes

Range Referred To Prismatic Reflector [M]: 0.03...4; (Prismatic Reflector 80 E20005)
Range Adjustable: No
Max. Light Spot Diameter [Mm]: 160
Light Spot Dimensions Refer To: At Maximum Range
Polarization Filter Available: Yes
Ambient Temperature [C]: -25...60
Protection: Ip 67
Emc: En 60947-5-2
Housing: Threaded Type
Dimensions [Mm]: M18 X 1 / L = 60
Thread Designation: M18 X 1
Lens Material: Pmma
Display: Switching Status 1 X Led, Yellow
Accessories (Supplied): Lock Nuts: 2 X
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM
