OG5119

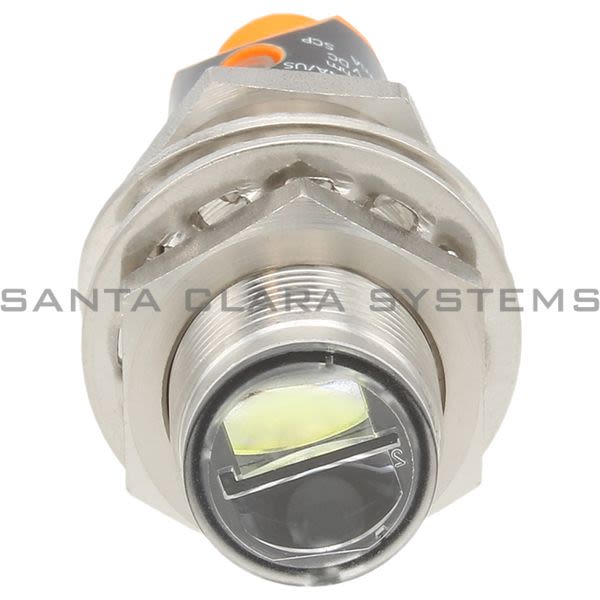

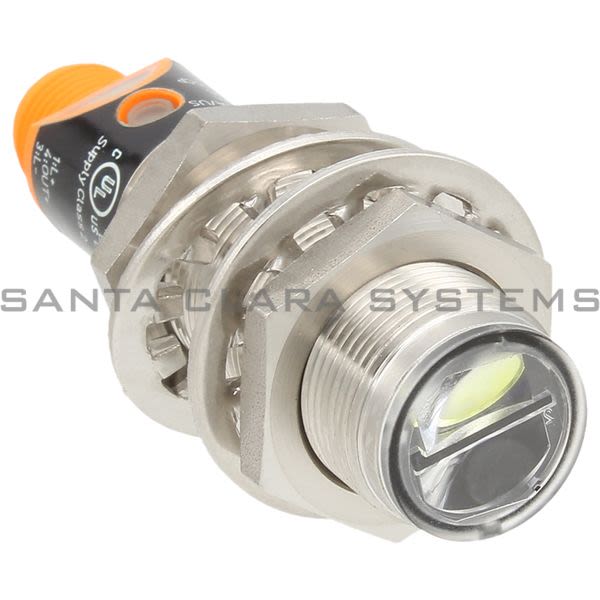

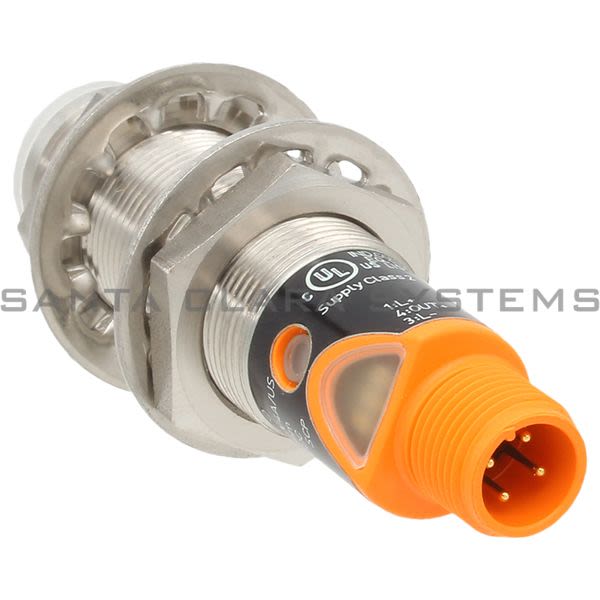

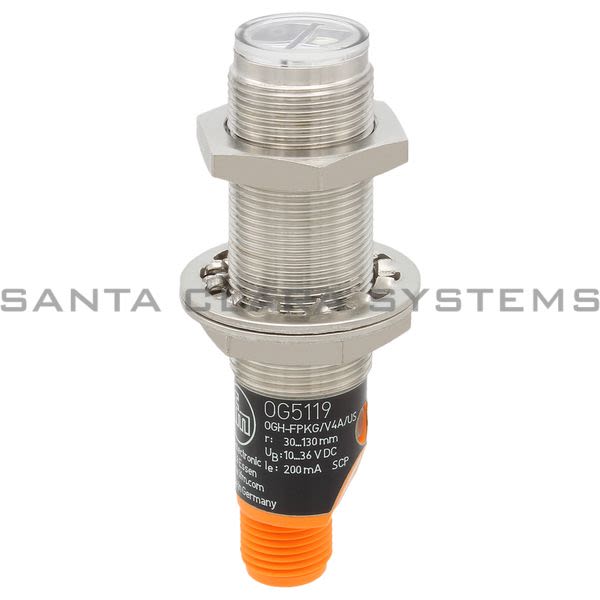

Efector - Diffuse Sensor | OGH-FPKG/V4A/US-100

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Diffuse Sensor | OGH-FPKG/V4A/US-100
Electrical Design: Pnp
Output Function: Light-On/Dark-On Mode; (Programmable)
Material: Stainless Steel (1.4404 / 316L); Pbt
Function Principle: Diffuse Reflection Sensor
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: < 40
Protection Class: Ii
Reverse Polarity Protection: Yes
Type Of Light: Red Light
Wave Length [Nm]: 660
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 150; (200 (...60 °C))
Switching Frequency Dc [Hz]: 250
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes

Range [Mm]: 30...130; (White Paper 200 X 200 Mm 90 % Remission)
Range Adjustable: Yes
Max. Light Spot Diameter [Mm]: 12
Light Spot Dimensions Refer To: At Maximum Range
Background Suppression Available: Yes
Ambient Temperature [°C]: -20...80
Protection: Ip 68; Ip 69K
Emc: En 60947-5-2 En 55011 Class B
Housing: Threaded Type
Dimensions [Mm]: M18 X 1 / L = 70.5
Thread Designation: M18 X 1
Lens Material: Pmma
Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green Function 1 X Led, Red
Accessories (Supplied): Lock Nuts: 2 X
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Background Suppression Chart: X: Distance Sensor/Object [Mm] Y: Min. Distance Object/Background [Mm] 1 = Object Black (6 % Remission) , Background (White 90 % Remission) 2 = Object Grey (18 % Remission) , Background (White 90 % Remission) 3 = Object White (90 % Remission) , Background (White 90 % Remission) Note : Range % = Setting In % Of The Range
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OG5119 . Santa Clara Systems carries 2,295 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
