KI3513

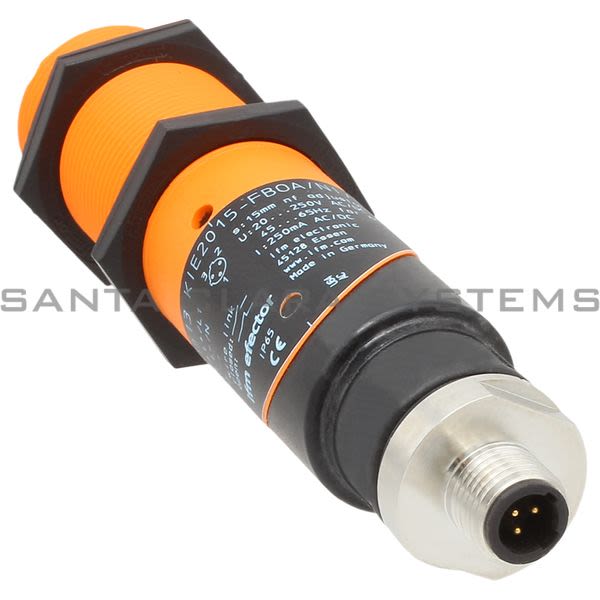

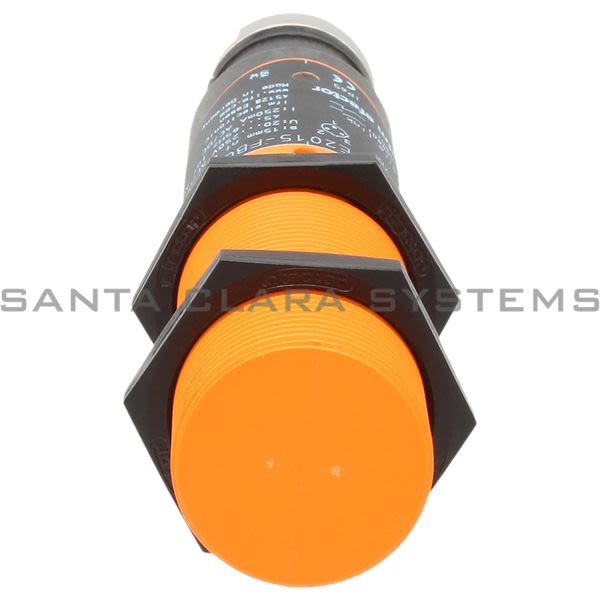

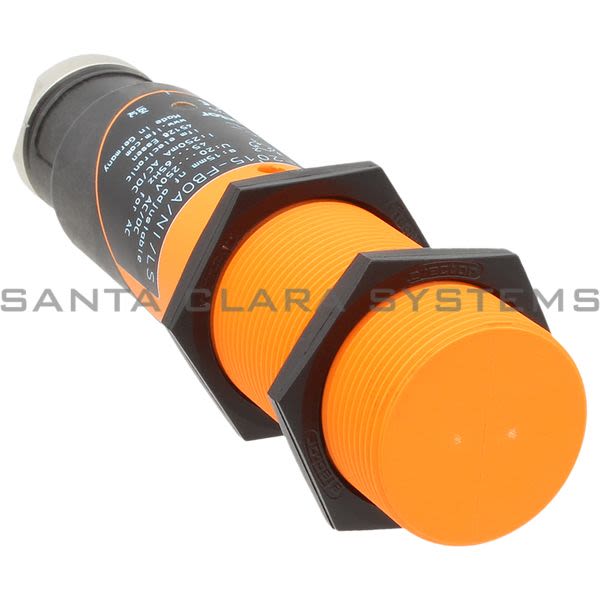

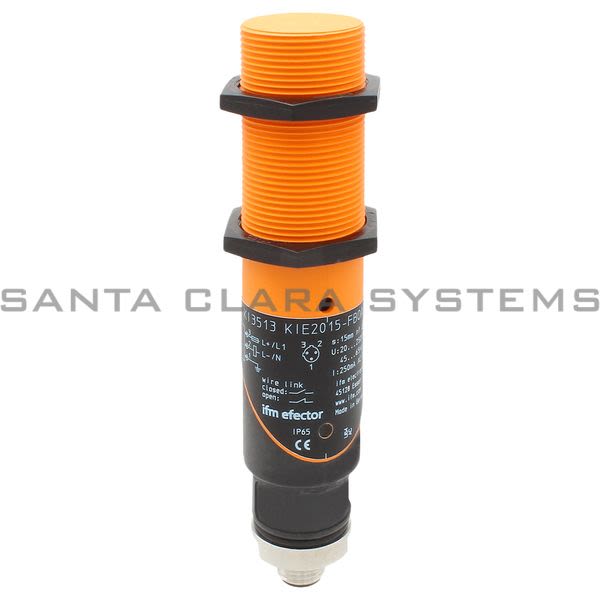

Efector - Capacitive Sensor | KIE2015-FBOA/NI/LS100AK RT

Current response time:

By 5AM PT on Monday

Emergency?

Description: Capacitive Sensor | KIE2015-FBOA/NI/LS100AK RT
Electrical Design: AC/DC
Output Function: Normally Open / Closed Programmable
Operating Voltage: 20 to 250 AC/DC
Sensing Range: 15mm, Adjustable 3mm to 5mm
MOUNTING: NON-FLUSH MOUNTABLE
MATERIAL: PBT; BRASS NICKEL-PLATED
Ambient Temperature [°C]: -25 to 70
Alternate Manufacturer Name: IFM
HOUSING: THREADED TYPE
DIMENSIONS [MM]: M30 X 1.5
OPERATING VOLTAGE [V]: 20...250 AC/DC
PROTECTION CLASS: I
REVERSE POLARITY PROTECTION: NOI
MAX. VOLTAGE DROP SWITCHING OUTPUT DC [V]: 8
MAX. VOLTAGE DROP SWITCHING OUTPUT AC [V]: 10
MINIMUM LOAD CURRENT [MA]: 5
MAX. LEAKAGE CURRENT [MA]: 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
PERMANENT CURRENT RATING OF SWITCHING OUTPUT AC [MA]: 200; (250 (...50 °C))
PERMANENT CURRENT RATING OF SWITCHING OUTPUT DC [MA]: 200; (250 (...50 °C))
SHORT-TIME CURRENT RATING OF SWITCHING OUTPUT [MA]: 2200; (20 MS / 0,5 HZ)
SWITCHING FREQUENCY AC [HZ]: 25

SWITCHING FREQUENCY DC [HZ]: 50
SHORT-CIRCUIT PROOF: NO
OVERLOAD PROTECTION: NO
SENSING RANGE [MM]: 3...15
SENSING RANGE ADJUSTABLE: YES
FACTORY SETTING SENSING RANGE [MM]: 15
REAL SENSING RANGE SR [MM]: 15 ± 10 %
OPERATING DISTANCE [MM]: 0...12.1
CORRECTION FACTOR: GLASS: 0.4 / WATER: 1 / CERAMICS: 0.2 / PVC: 0.2
HYSTERESIS [% OF SR]: 1...15
SWITCH-POINT DRIFT [% OF SR]: -15...15
PROTECTION: IP 65
INCREASED IMMUNITY: YES; (INCREASED IMMUNITY TO CONDUCTED RADIO FREQUENCY INTERFERENCE)
EMC: EN 60947-5-2
MTTF [YEARS]: 294
WEIGHT [G]: 179
DISPLAY: SWITCHING STATUS1 X LED, RED
REQUIRED PROTECTION: MINIATURE FUSE TO IEC60127-2 SHEET 1; ≤ 2 A; FAST ACTING
ACCESSORIES (SUPPLIED): LOCK NUTS: 2 SCREWDRIVER: 1
REMARKS: RECOMMENDATION: CHECK THE UNIT FOR RELIABLE FUNCTION AFTER A SHORT CIRCUIT.
PACK QUANTITY: 1 PCS.
CONNECTOR: 1 X 1/2"
