IGS206

Efector - Inductive Sensor | IGB3008BAPKG/US-104

Current response time:

14 Minutes 12 Seconds

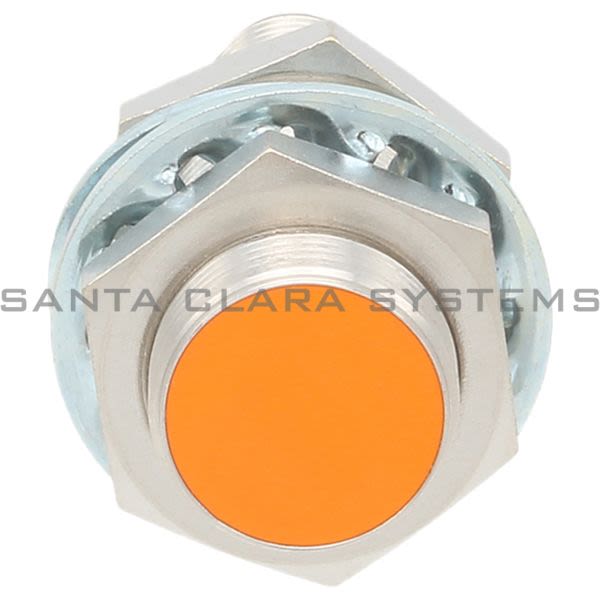

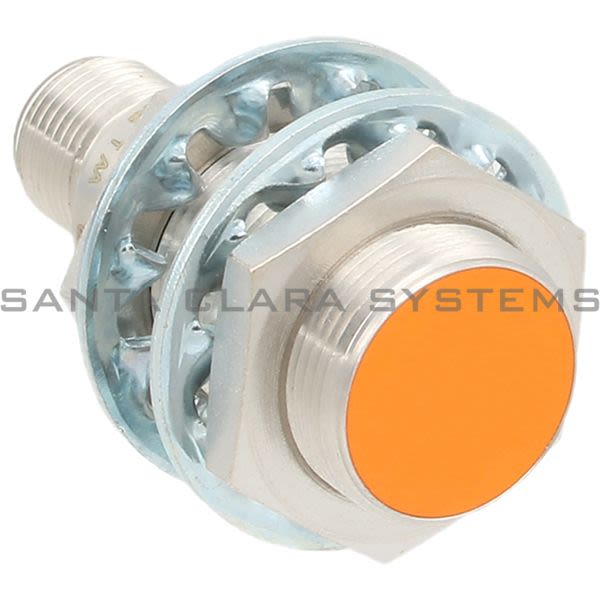

Description: Inductive Sensor | IGB3008BAPKG/US-104
Electrical Design: DC PNP
Output Function: Normally Closed
Sensing Range: 8mm
Mounting: flush mountable
Material: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Ambient temperature [°C]: -25 to 70
Alternate Manufacturer Name: IFM
Housing: Threaded type
Dimensions [mm]: M18 x 1 / L = 45
System: gold-plated contacts; Increased sensing range
Operating voltage [V]: 10...30 DC
Application: Industrial applications
Current consumption [mA]: < 10
Protection class: II
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 100
Switching frequency DC [Hz]: 400

Short-circuit protection: yes
Overload protection: yes
Real sensing range Sr [mm]: 8 ± 10 %
Operating distance [mm]: 0...6.48
Increased sensing range: yes
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]: 3...15
Switch-point drift [% of Sr]: -10...10
Protection: IP 67
EMC: EN 61000-4-2 ESD4 kV CD / 8 kV AD EN 61000-4-3 HF radiated10 V/m EN 61000-4-4 Burst2 kV EN 61000-4-6 HF conducted10 V EN 55011class B
MTTF [years]: 1570
UL approval: Ta0...40 °C Enclosure typeType 1 voltage supplyHazardous voltage UL approval numberA003 File number ULE174191
Weight [g]: 42.3
Thread designation: M18 x 1
Display: Switching status4 x LED, yellow
Accessories (supplied): lock nuts: 2
Pack quantity: 1 pcs.
Connection: Connector: 1 x M12; Contacts: gold-platedz
