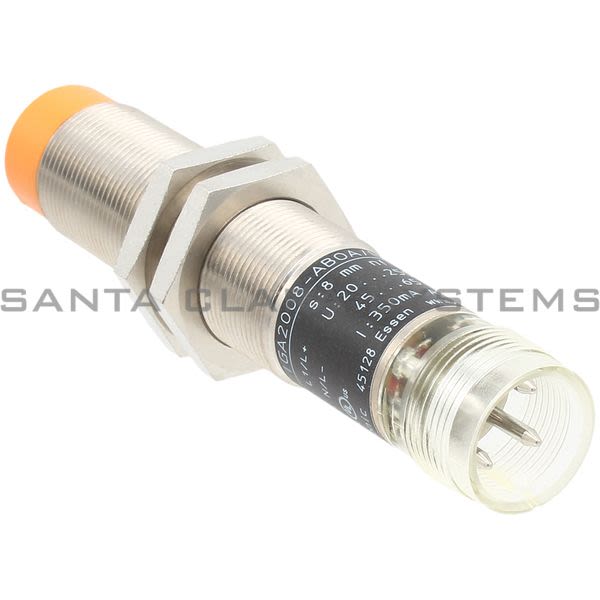

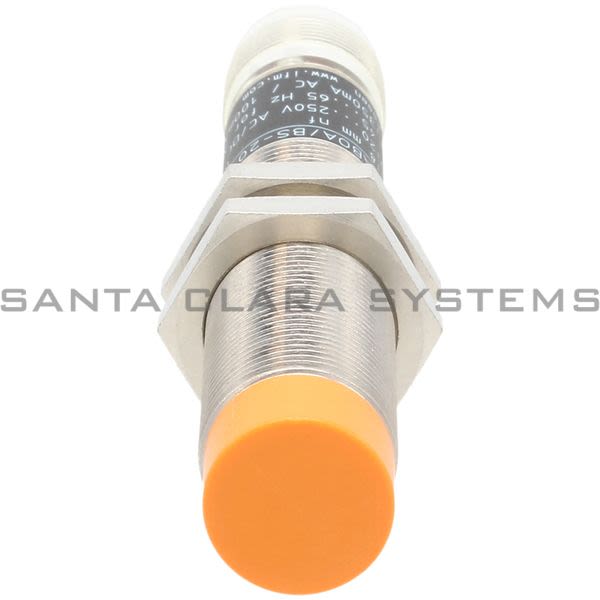

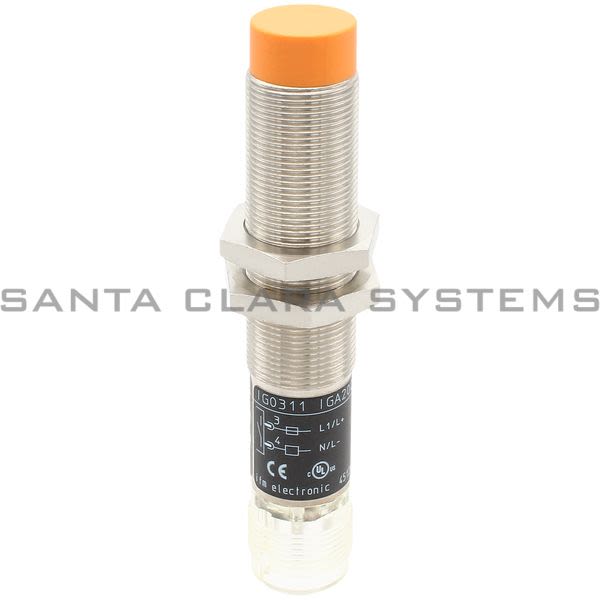

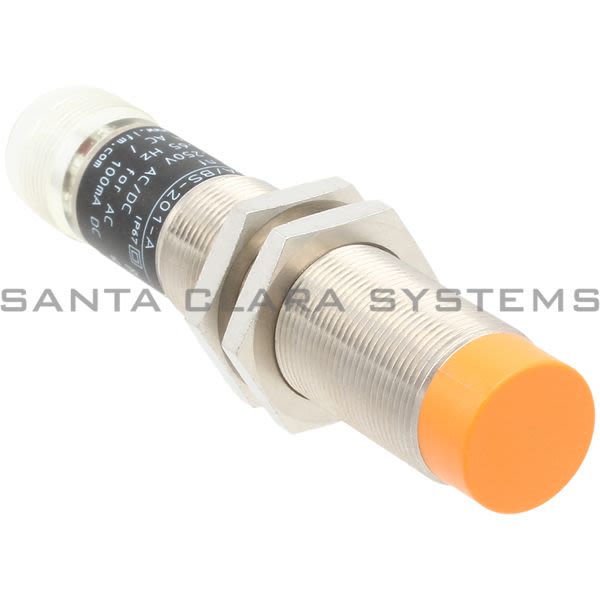

IG0311

Efector - Proximity Switch

Current response time:

13 Minutes 27 Seconds

Description: Proximity Switch
Output Function: Normally Open
Mounting: Non-Flush Mountable
Material: Brass Nickel-Plated; Pc
Operating Voltage [V]: 20...250 Ac/Dc
Protection Class: Ii
Reverse Polarity Protection: No
Max. Voltage Drop Switching Output Dc [V]: 6
Max. Voltage Drop Switching Output Ac [V]: 6.5
Minimum Load Current [Ma]: 5
Max. Leakage Current [Ma]: 2.5 (250 V Ac) / 1.3 (110 V Ac) / 0.8 (24 V Dc)
Permanent Current Rating Of Switching Output Ac [Ma]: 250; (350 (...50 C))
Permanent Current Rating Of Switching Output Dc [Ma]: 100
Short-Time Current Rating Of Switching Output [Ma]: 2200; (20 Ms / 0,5 Hz)
Switching Frequency Ac [Hz]: 25
Switching Frequency Dc [Hz]: 25
Short-Circuit Proof: No

Overload Protection: No
Sensing Range [Mm]: 8
Real Sensing Range Sr [Mm]: 8 10 %
Operating Distance [Mm]: 0...6.5
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
Hysteresis [% Of Sr]: 3...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 67
Emc: En 60947-5-2 En 55011 Class B
Housing: Threaded Type
Dimensions [Mm]: M18 X 1
Thread Designation: M18 X 1
Display: Switching Status 1 X Led, Red
Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
Accessories (Supplied): Lock Nuts: 2
Alternate Manufacturer Name: IFM
