IFR200

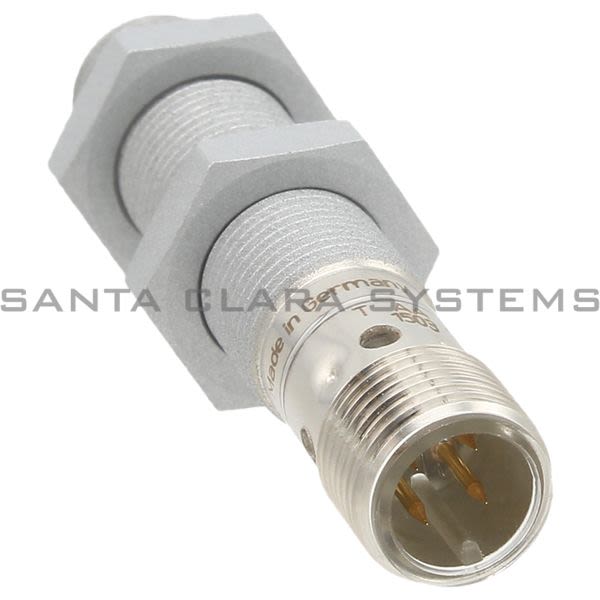

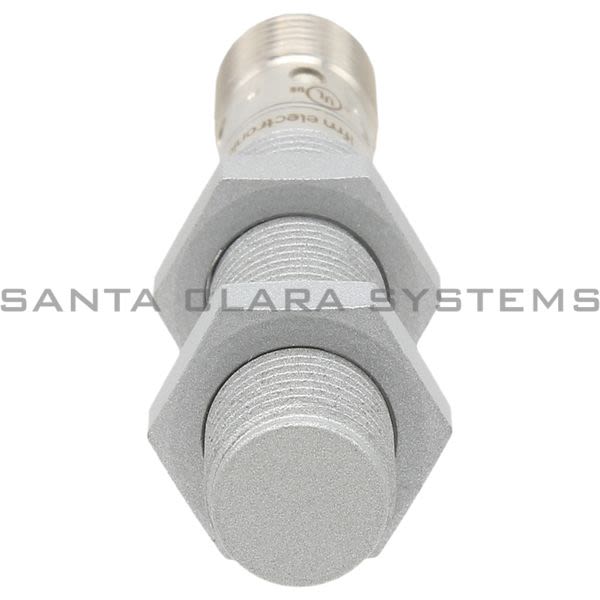

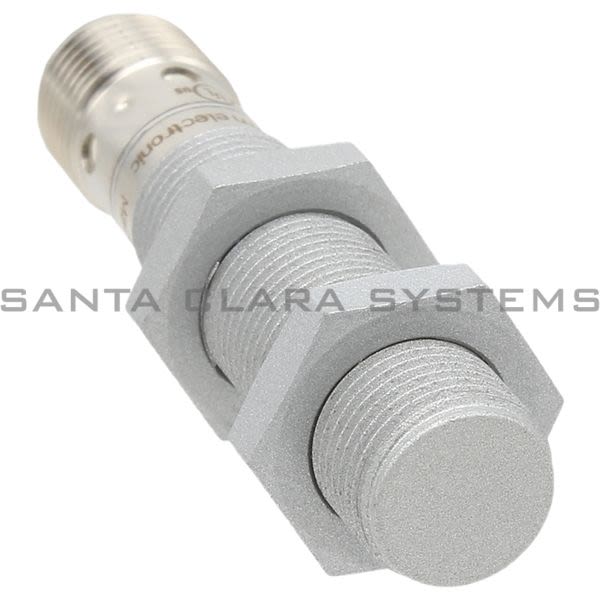

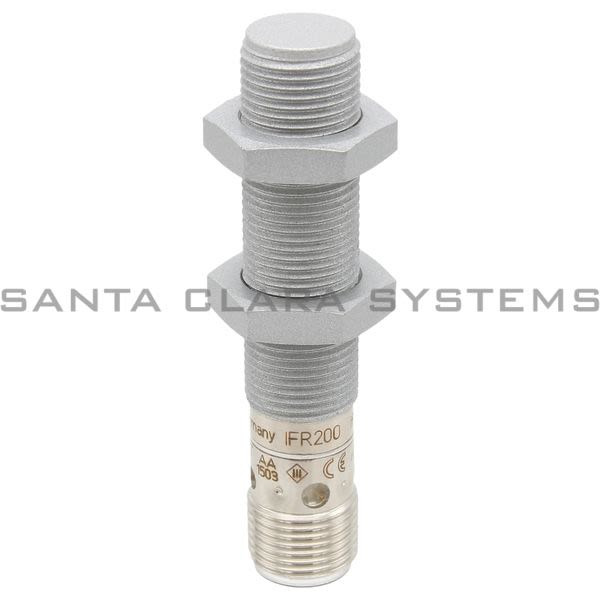

Efector - Inductive Sensor | IFK3004BBPKG/AM/SC/US-104-DPS

Current response time:

By 5AM PT on Friday

Emergency?

Description: Inductive Sensor | IFK3004BBPKG/AM/SC/US-104-DPS
Electrical Design: Pnp
Output Function: Normally Open
Mounting: Flush Mountable
Material: Housing: Stainless Steel (1.4404 / 316L) Weld Coated; Sensing Face: Stainless Steel (1.4404 / 316L) Weld Coated; Plug: Pa; Lock Nuts: Stainless Steel (1.4404 / 316L) Weld Coated
Pressure Rating [Bar]: 100
Magnetic-Field Immune: Yes; (Pulse Duration Of The Welding Current: < 200 Ms)
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: < 20
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 100
Switching Frequency Dc [Hz]: 2
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Sensing Range [Mm]: 4

Operating Distance [Mm]: 0...3.25
Increased Sensing Range: Yes
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.2 / Aluminum: 0.1 / Copper: 0
Hysteresis [% Of Sr]: 1...20
Ambient Temperature [C]: 0...85
Protection: Ip 67
Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 55011 Emission Class B
Impact Resistance: En 60068-2-27 Ehc 1 J
Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current File Number Ul E174191
Housing: Threaded Type
Dimensions [Mm]: M12 X 1 / L = 60
Thread Designation: M12 X 1
Tightening Torque [Nm]: 10
Full-Metal Housing: Yes
Display: Switching Status 4 X 90 Led, Yellow Power 1 X Led, Green
Accessories (Supplied): Lock Nuts: 2
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IFR200 . Santa Clara Systems carries 2,284 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
