IF5759

Efector - Inductive Sensor | IFA2002-FRKG/V4A/US-100-IRF RT

Current response time:

By 5AM PT on Friday

Emergency?

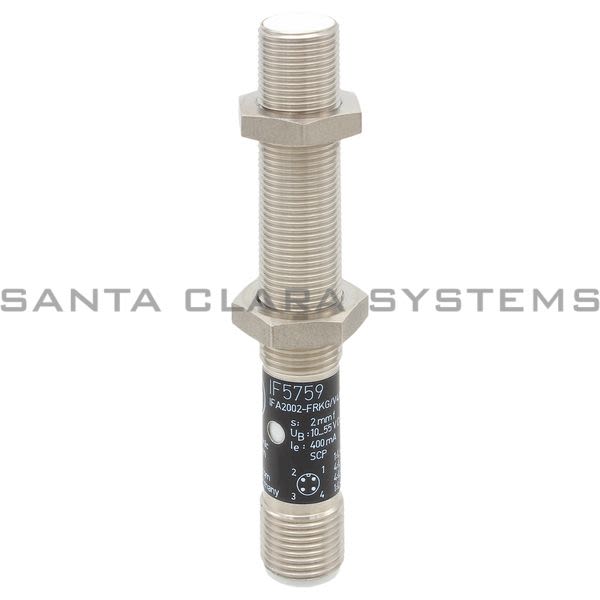

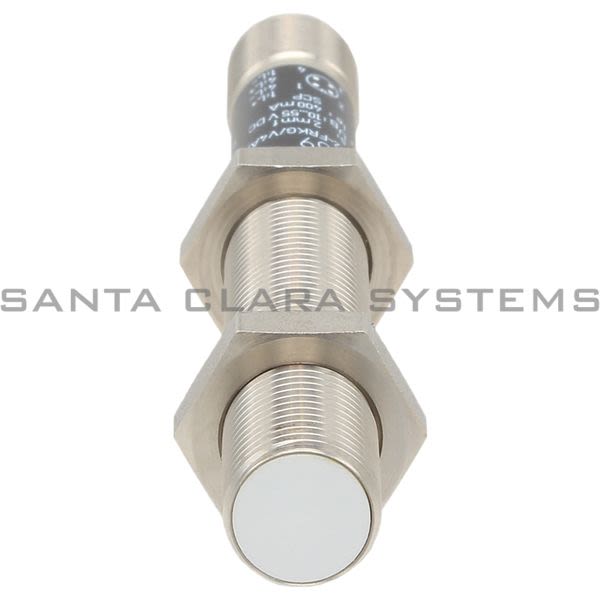

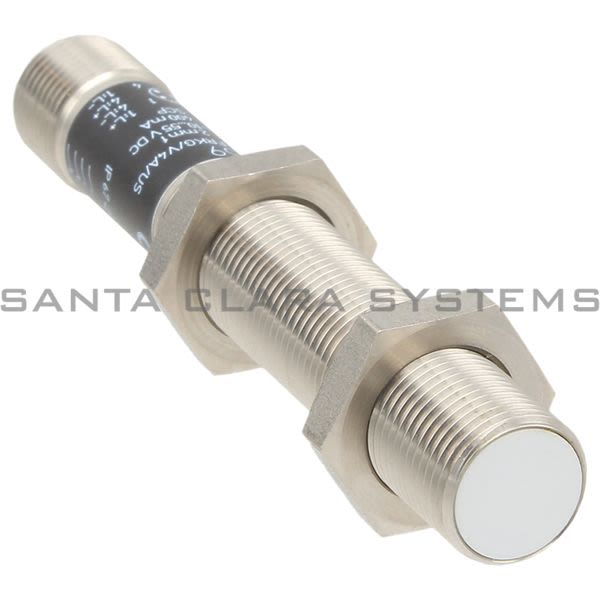

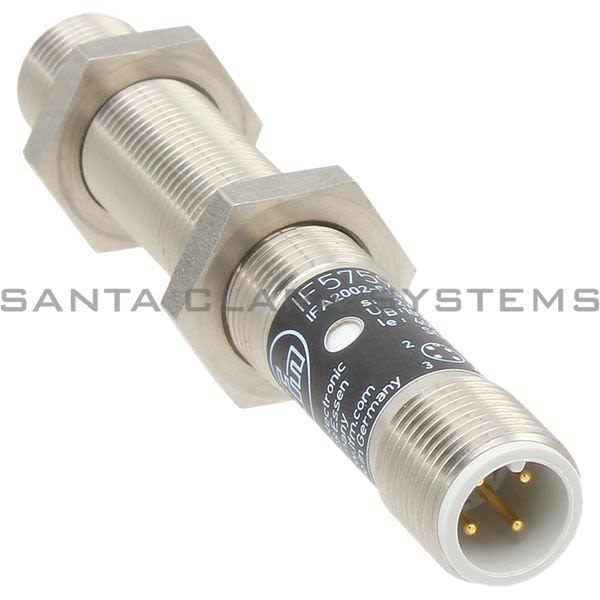

Description: Inductive Sensor | IFA2002-FRKG/V4A/US-100-IRF RT
Electrical Design: Pnp/Npn
Output Function: Normally Open / Closed; (Selectable)
Mounting: Flush Mountable
Material: Stainless Steel (1.4571/316Ti ); Sensing Face: Pbt
Operating Voltage [V]: 10...55 Dc
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 4.6
Minimum Load Current [Ma]: 4
Max. Leakage Current [Ma]: 0.5
Permanent Current Rating Of Switching Output Dc [Ma]: 400
Switching Frequency Dc [Hz]: 1100
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes

Sensing Range [Mm]: 2
Real Sensing Range Sr [Mm]: 2 10 %
Operating Distance [Mm]: 0...1.6
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 67
Emc: En 60947-5-2 En 55011 Class B
Housing: Threaded Type
Dimensions [Mm]: M12 X 1 / L = 83
Thread Designation: M12 X 1
Display: Switching Status 1 X Led, Red
Accessories (Supplied): Lock Nuts: 2
Normally Open: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IF5759 . Santa Clara Systems carries 2,265 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
