IF5647

Efector - Inductive Sensor | IFA2004-FRKG/US-100-IRF

Current response time:

4 Minutes 32 Seconds

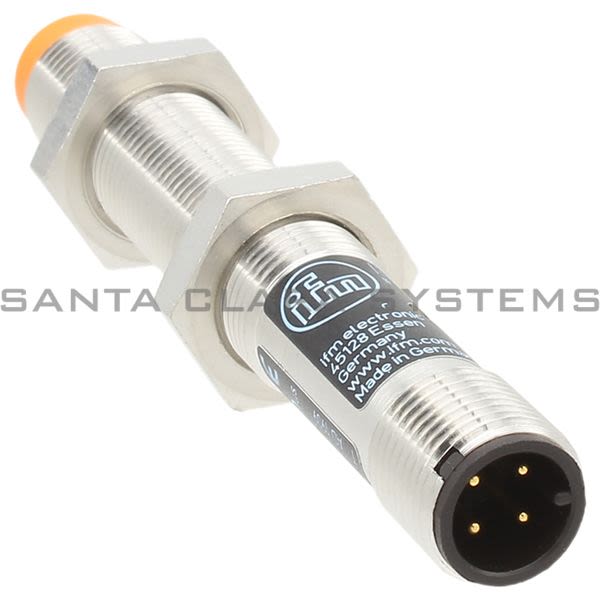

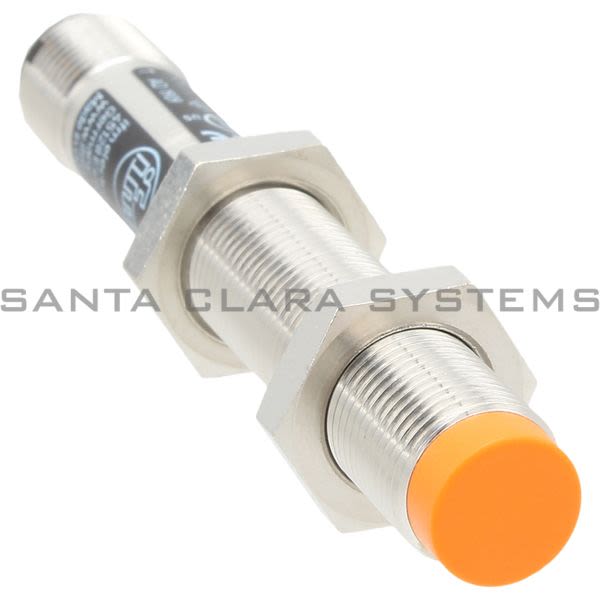

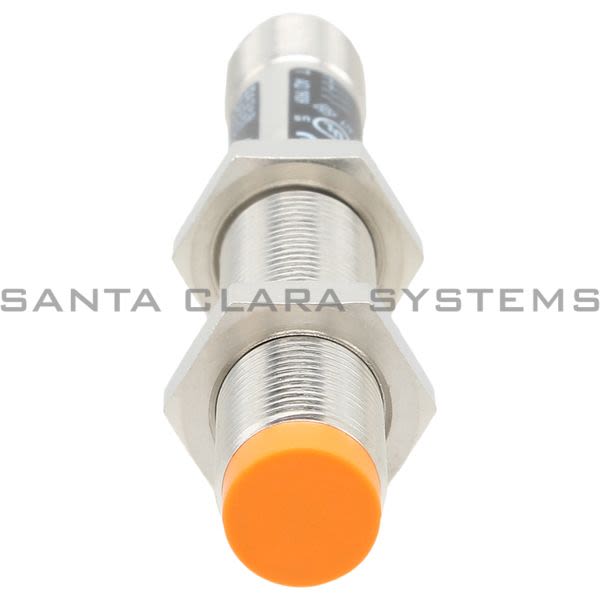

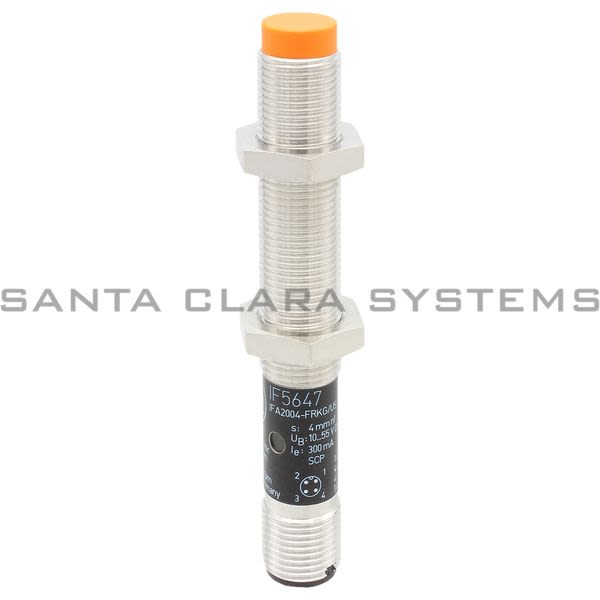

Description: Inductive Sensor | IFA2004-FRKG/US-100-IRF
Electrical Design: DC PNP/NPN
Output Function: Normally Open / Closed Programmable
Operating Voltage: 10 to 55 VDC
Sensing Range: 4mm
Mounting: Non-flush mountable
Material: Brass white bronze coated; sensing face: PC
Ambient Temperature [C]: -25 to 80
Alternate Manufacturer Name: IFM
Housing: Threaded type
Dimensions [mm]: M12 x 1 / L = 83
Protection class: III
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 4.6
Minimum load current [mA]: 4
Max. leakage current [mA]: 0.5
Permanent current rating of switching output DC [mA]: 300
Switching frequency DC [Hz]: 1500

Short-circuit protection: yes
Type of short-circuit protection: Yes (non-latching)
Overload protection: yes
Sensing range [mm]: 4
Real sensing range Sr [mm]: 4 10 %
Operating distance [mm]: 0...3.25
Hysteresis [% of Sr]: 1...15
Switch-point drift [% of Sr]: -10...10
Protection: IP 67
EMC: EN 60947-5-2 EN 55011 class B
MTTF [years]: 1815
UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Hazardous voltage File number UL E174191
Weight [g]: 32
Thread designation: M12 x 1
Display: Switching status 1 x LED, yellow
Accessories (supplied): Lock nuts: 2
Pack quantity: 1 pcs.
Connector: 1 x M12
