IF0295

Efector - Inductive Sensor | IF-2002-ABOW

Current response time:

15 Minutes 3 Seconds

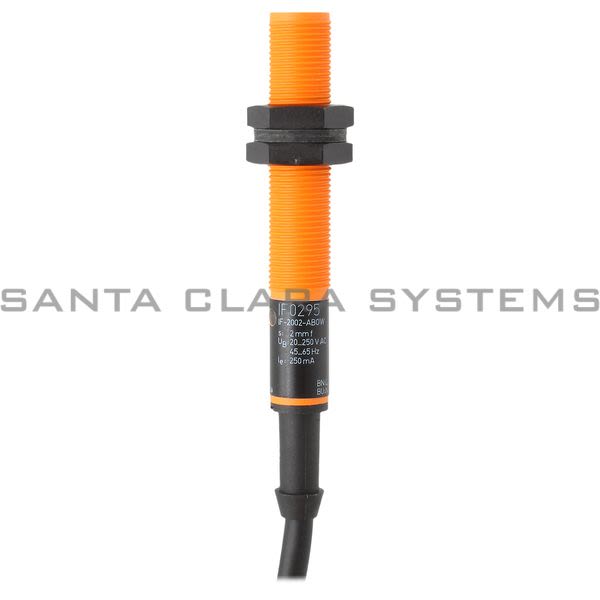

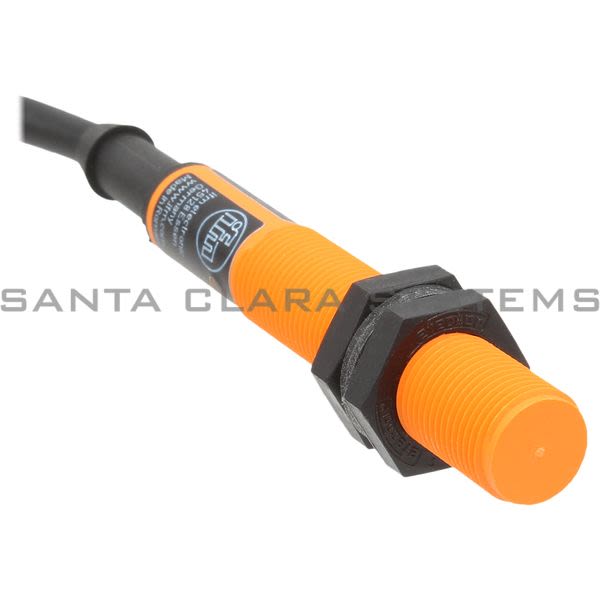

Description: Inductive Sensor | IF-2002-ABOW
Output Function: Normally Open
Mounting: Flush Mountable
Material: Pbt
Frequency Ac [Hz]: 47...63
Operating Voltage [V]: 20...250 Ac
Protection Class: Ii
Reverse Polarity Protection: No
Max. Voltage Drop Switching Output Ac [V]: 8.5
Minimum Load Current [Ma]: 8
Max. Leakage Current [Ma]: 2
Permanent Current Rating Of Switching Output Ac [Ma]: 200; (250 (...50 C))
Short-Time Current Rating Of Switching Output [Ma]: 900; (20 Ms / 0,5 Hz)
Switching Frequency Ac [Hz]: 25
Short-Circuit Proof: No
Overload Protection: No
Sensing Range [Mm]: 2

Real Sensing Range Sr [Mm]: 2 10 %
Operating Distance [Mm]: 0...1.6
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 67
Emc: En 60947-5-2 En 55011 Class B
Housing: Threaded Type
Dimensions [Mm]: M12 X 1 / L = 71.5
Thread Designation: M12 X 1
Display: Switching Status 1 X Led, Red
Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
Accessories (Supplied): Lock Nuts: 2

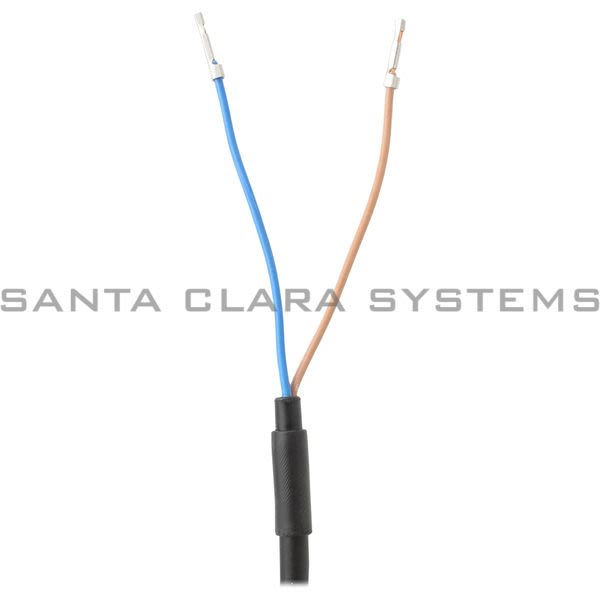

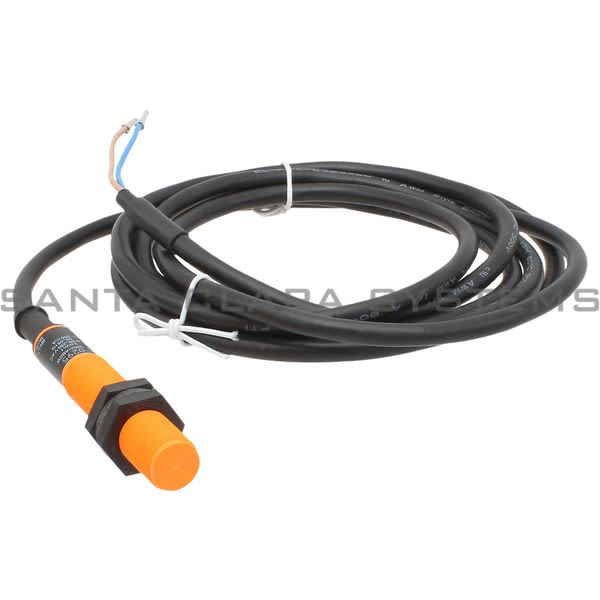

Connection: Cable: 2 M, Pvc; 2 X 0.5 Mm
Alternate Manufacturer Name: IFM
