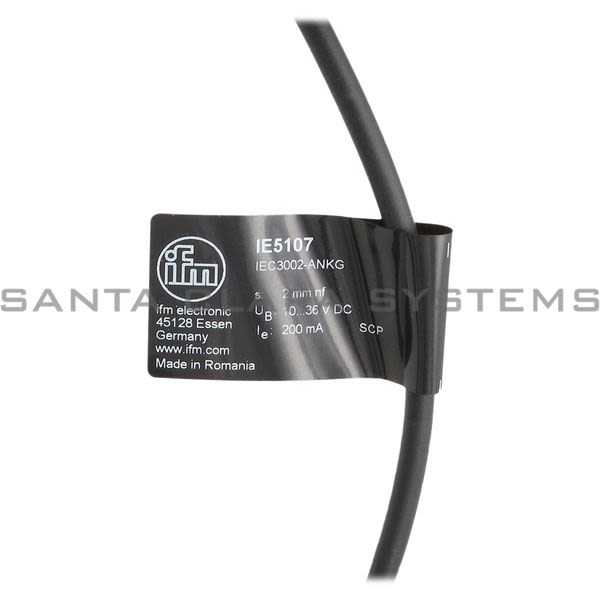

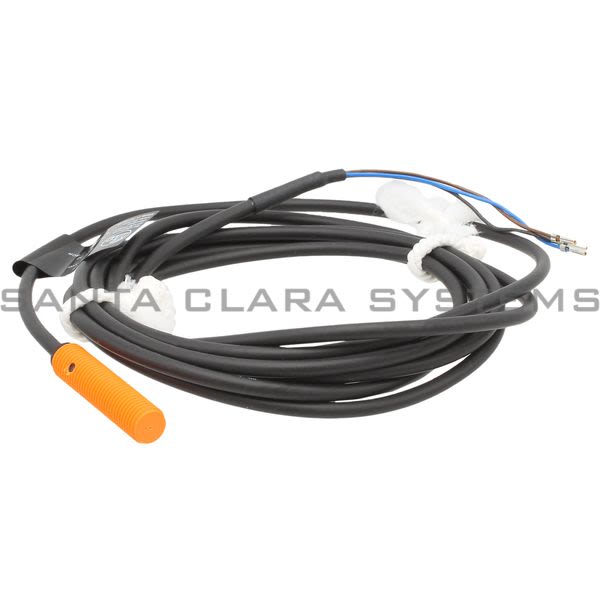

IE5107

Efector - Inductive Sensor | EC3002-ANOG

Current response time:

10 Minutes 9 Seconds

Description: Inductive Sensor | EC3002-ANOG
Electrical Design: Npn
Output Function: Normally Open
Mounting: Non-Flush Mountable
Material: Pbt
Operating Voltage [V]: 10...36 Dc
Sensing Range [mm]: 2
Ambient Temperature [C]: -25...80
Current Consumption [Ma]: 15; (24 V)
Protection Class: Iii
Reverse Polarity Protection: No
Max. Voltage Drop Switching Output Dc [V]: 1
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Switching Frequency Dc [Hz]: 800
Short-Circuit Protection: No

Overload Protection: No
Real Sensing Range Sr [Mm]: 2 10 %
Operating Distance [Mm]: 0...1.6
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Protection: Ip 67
Emc: En 60947-5-2

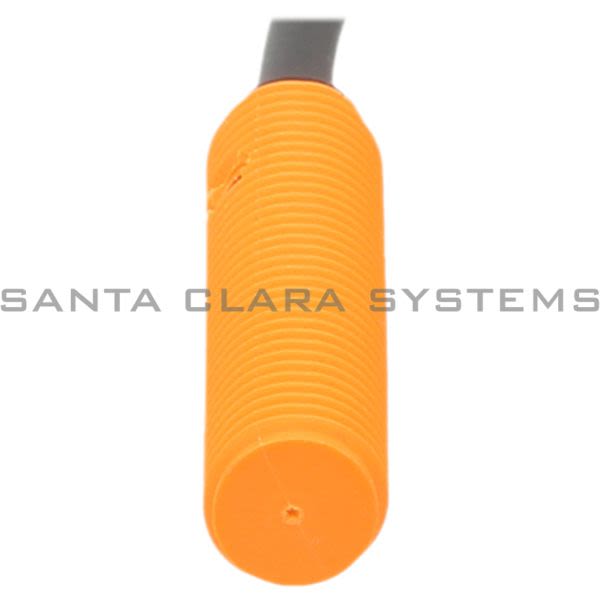

Housing: Threaded Type
Dimensions [Mm]: M8 X 1 / L = 35
Thread Designation: M8 X 1
Display: Switching Status 1 X Led, Yellow
Accessories (Supplied): Lock Nuts: 2

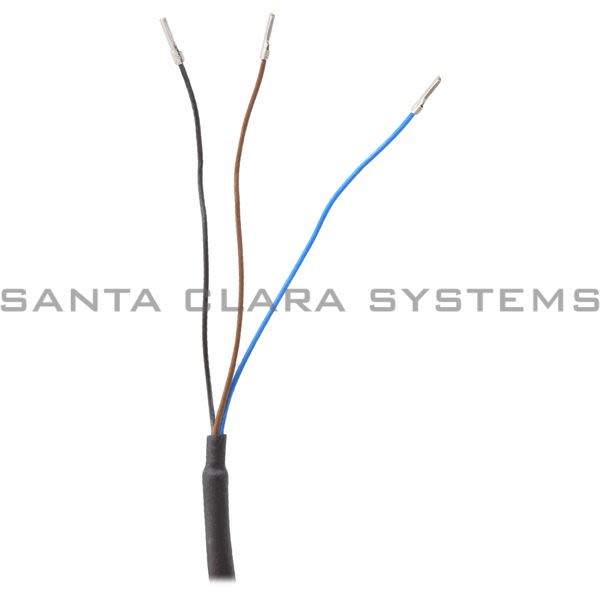

Connection: Cable: 2 M, Pvc; 3 X 0.14 Mm
Alternate Manufacturer Name: IFM
