IE5090

Efector - Inductive Sensor | IEB3001-BPOG/US-100-DPS

Current response time:

16 Minutes 30 Seconds

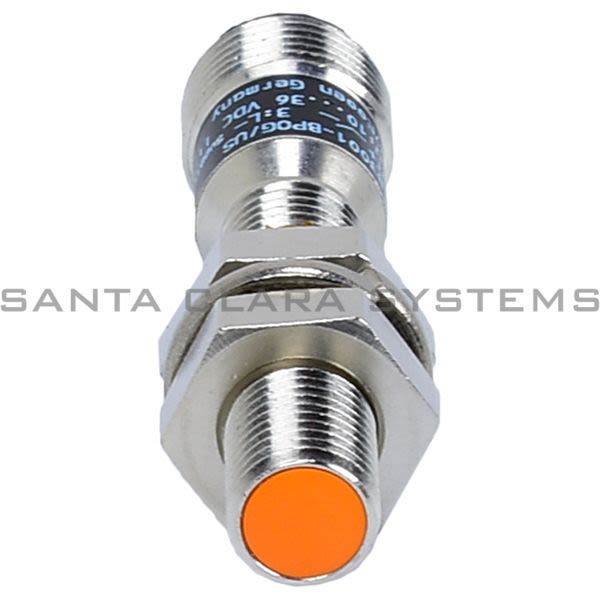

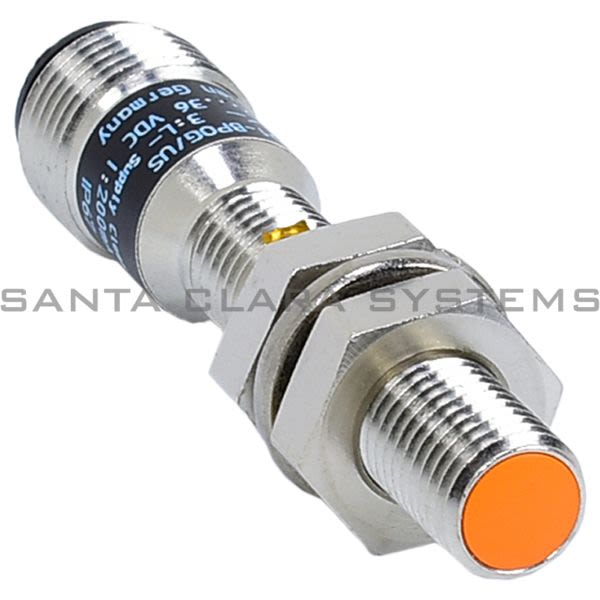

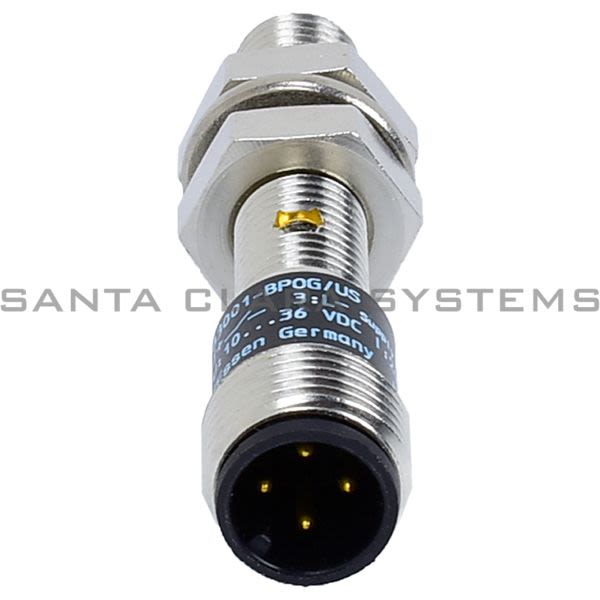

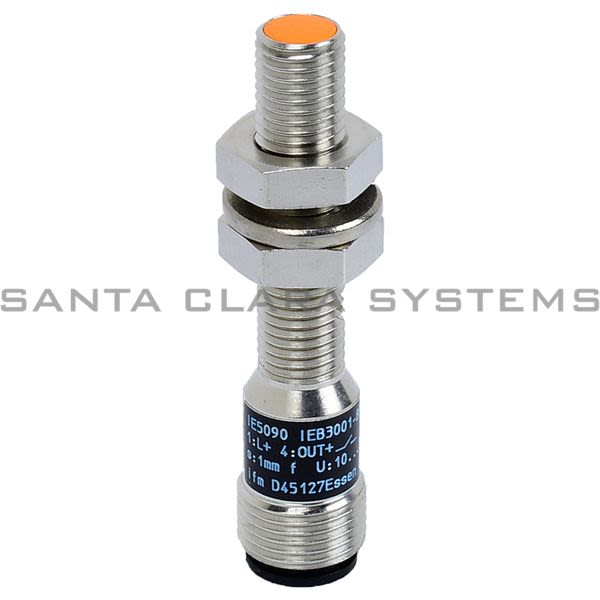

Description: Inductive Sensor | IEB3001-BPOG/US-100-DPS
Electrical Design: DC PNP
Output Function: Normally Open
Sensing Range: 1mm
Mounting: flush mountable
Material: brass white bronze coated; PBT
Ambient temperature [C]: -25 to 80
Alternate Manufacturer Name: IFM
Housing: Threaded type
Dimensions [mm]: M8 x 1 / L = 53
Operating voltage [V]: 10...36 DC
Current consumption [mA]: 15; (24 V)
Protection class: III
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 750
Short-circuit protection: yes

Overload protection: yes
Sensing range [mm]: 1
Real sensing range Sr [mm]: 1 10 %
Operating distance [mm]: 0...0.8
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr]: 1...15
Switch-point drift [% of Sr]: -10...10
Protection: IP 67
EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]: 2804
UL approval: Ta -25...80 C Enclosure type Type 1 voltage supply Class 2 File number UL E174191
Weight [g]: 20.7
Thread designation: M8 x 1
Tightening torque [Nm]: A = 5 mm: 1 Nm; B: 2 Nm
Display: Switching status 1 x LED, yellow
Accessories (supplied): lock nuts: 2
Pack quantity: 1 pcs.
Connection: Connector: 1 x M12
