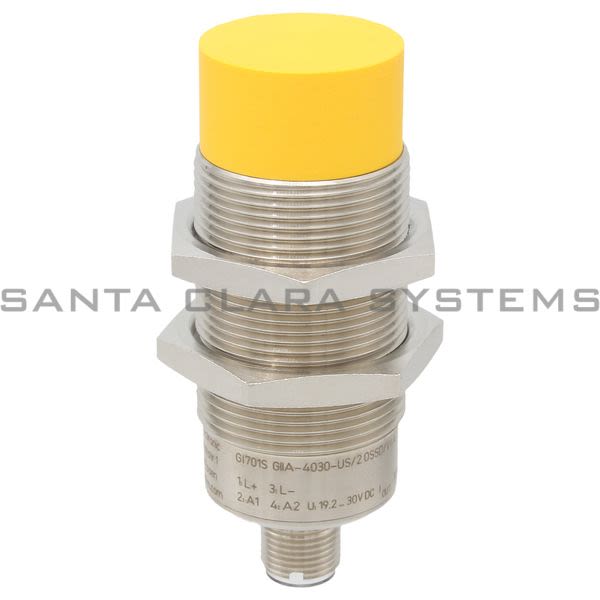

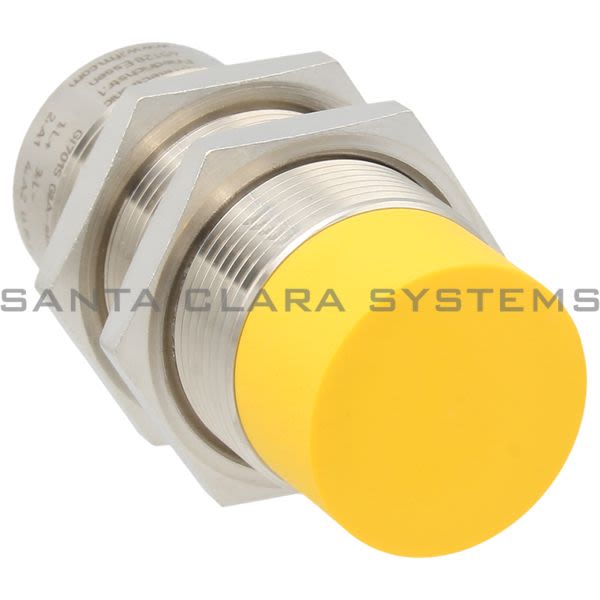

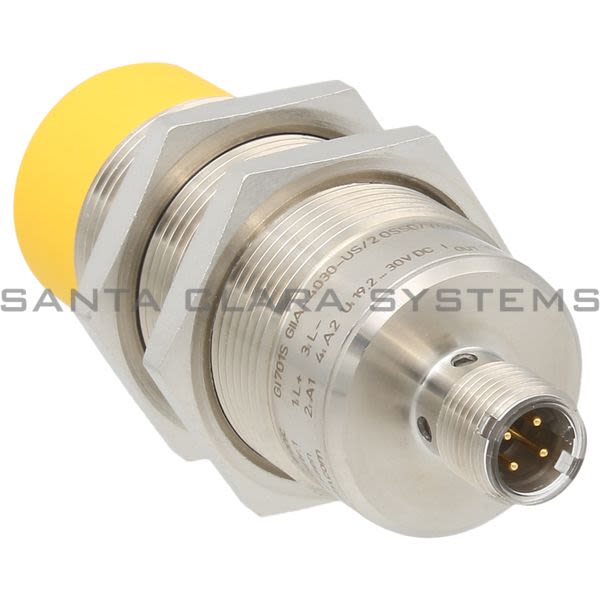

Efector GI701S Inductive Sensor | GIIA-4030-US/2OSSD/V4A Product Image

GI701S

Efector - Inductive Sensor | GIIA-4030-US/2OSSD/V4A

Current response time:

By 5AM PT on Monday

Emergency?

Description: Inductive Sensor | GIIA-4030-US/2OSSD/V4A
Electrical Design: Pnp
Output Function: 2 X Ossd (A1 And A2)
Mounting: Non-Flush Mountable
Material: Stainless Steel (1.4404 / 316L); Pbt
Type Of Operation: Continuous Operation (Maintenance-Free)
Operating Voltage [V]: 19.2...30 Dc
Rated Insulation Voltage [V]: 30
Current Consumption [Ma]: < 30
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Power-On Delay Time [Ms]: 5000
Max. Voltage Drop Switching Output Dc [V]: 2.5; (100 Ma)
Permanent Current Rating Of Switching Output Dc [Ma]: 100
Output Data: Interface Typ C Klasse 0
Output Voltage At 24 V: Compatible With En 61131-2 Inputs Type 1, 2, 3
Short-Circuit Protection: Yes
Max. Capacitive Load Cl_Max [Nf]: 20
Enable Zone [Mm]: 6...12
Safe Switching-Off Distance S(Ar) [Mm]: 30
Response Time To Safety Request [Ms]: 50
Response Time When Approaching The Enable Zone [Ms]: 200
Risk Time (Response Time For Safety-Related Faults) [Ms]: 100
Applications: Class C To En 60654-1 Weatherproof Application
Ambient Temperature [C]: 10...40

Rate Of Temperature Change [K/Min]: 0.5
Max. Relative Air Humidity [%]: Briefly: 5...95 %; Permanent: 5...70 %
Air Pressure [Kpa]: 80...106
Max. Height Above Sea Level [M]: 2000
Ionising Radiation: Not Permissible
Salt Spray: No
Protection: Ip 68; Ip 69K
Emc: Iec 60947-5-2 Iec 60947-5-3 En 61000-4-2 Esd 6 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 20 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 61000-4-8 30 A/M En 55011 Class B
Shock Resistance: Iec 60947-5-2
Vibration Resistance: Iec 60947-5-2
Ul Approval: Ta -25...70 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current File Number Ul E174191
Iso 13849-1: Category 3, Pl E
Iec 61508: Sil 3
Iec 62061: Silcl 3
Mission Time Tm [H]: 175200
Mission Time Tm (Additional Indication): 20 Years
Safety-Related Reliability Pfhd [1/H]: 0.00000001
Housing: Threaded Type
Dimensions [Mm]: M30 X 1.5 / L = 80
Thread Designation: M30 X 1.5
Display: Power 1 X Led, Green Signal 1 X Led, Yellow
Accessories (Supplied): Lock Nuts: 2
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM
