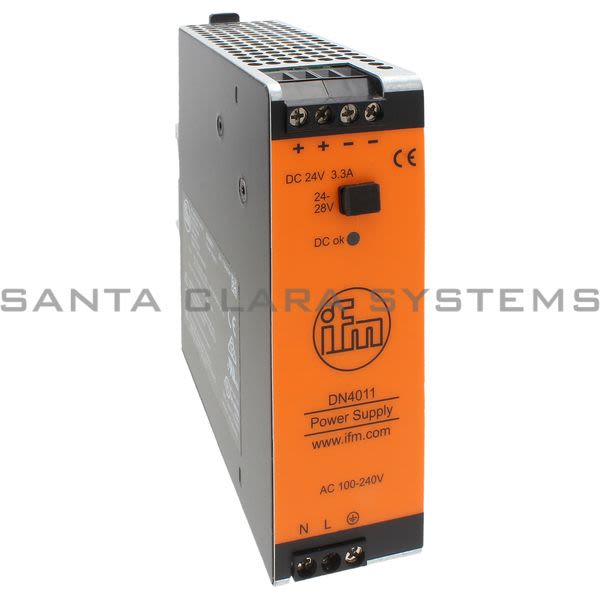

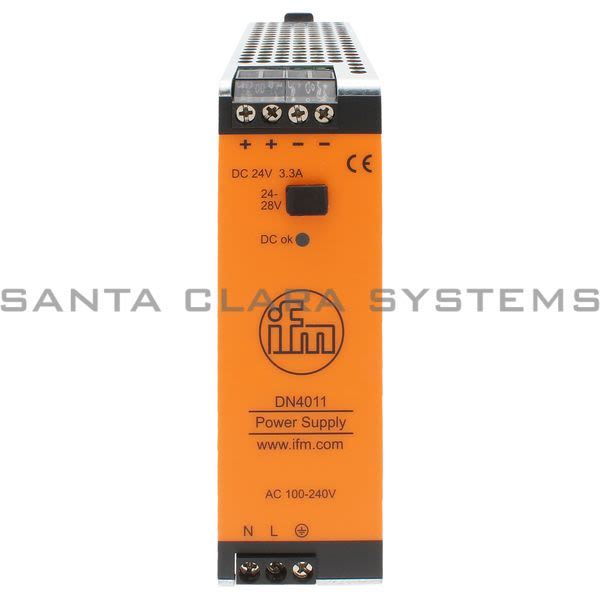

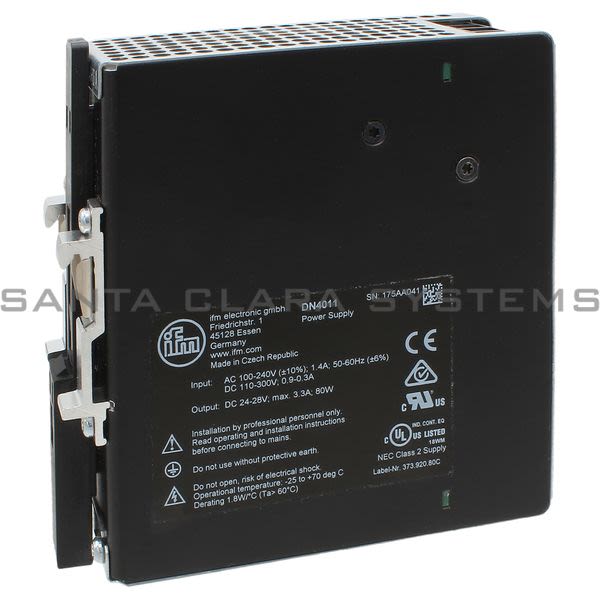

DN4011

Efector - Power Supply | PSU-1AC/24VDC-3.3A

Current response time:

10 Minutes 1 Second

Description: Power Supply | PSU-1AC/24VDC-3.3A
Material: Steel Sheet
Frequency Ac [Hz]: 47...64
Operating Voltage Tolerance [%]: 10
Operating Voltage Tolerance 2 [%]: 20
Nominal Voltage Ac [V]: < 230
Input Voltage Dc [V]: 110...300
Input Voltage Ac [V]: 100...240
Output Voltage Dc [V]: 24...28
Protection Class: I; (Iec 61140)
Overvoltage Protection: Yes; (< 39 Dc)
Output Voltage [V]: Adjustable; Output Voltage To Selv, Pelv
Max. Output Current At Min. Output Voltage [A]: 3.3
Max. Output Current At Max. Output Voltage [A]: 2.7
Max. Output Current Peak At Min. Output Voltage [A]: 3.3
Max. Output Current Peak At Max. Output Voltage [A]: 2.7
Output Power (Permanent) [W]: 80
Output Power (Peak) [W]: 80
Power Factor (Nominal Voltage 120 V Ac / 60 Hz): 0.61
Power Factor (Nominal Voltage 230 V Ac / 50 Hz): 0.56
Number Of Output Circuits: 1
Max. Residual Ripple [Mv]: 50
Switch-On Peak Current (Nominal Voltage 120 V Ac / 60 Hz) [A]: 23
Switch-On Peak Current (Nominal Voltage 230 V Ac / 50 Hz) [A]: 45
Inrush Current Limitation: Yes
Efficiency (Nominal Voltage 120 V Ac / 60 Hz) [%]: 88

Efficiency (Nominal Voltage 230 V Ac / 50 Hz) [%]: 89.8
External Input Protection: B-10 A / ? C-6 A
Derating [W/K]: 1.8 (60...70 C)
Mains Buffering Time (Nominal Voltage 120 V Ac / 60 Hz) [Ms]: 30
Mains Buffering Time (Nominal Voltage 230 V Ac / 50 Hz) [Ms]: 128
Input Current (Nominal Voltage 120 V Ac / 60 Hz) [A]: 1.24
Input Current (Nominal Voltage 230 V Ac / 50 Hz) [A]: 0.68
Power Loss (Nominal Voltage 120 V Ac / 60 Hz) [W]: 11.1
Power Loss (Nominal Voltage 230 V Ac / 50 Hz) [W]: 9.1
Back Feeding Protection [V]: 35
Overload Protection: Yes
Overload Performance: Constant Output Current
Ambient Temperature [C]: -25...70
Storage Temperature [C]: -40...85
Max. Relative Air Humidity [%]: 95; (Iec 60068-2-30)
Protection: Ip 20; (En 60529)
Degree Of Soiling: 2; (Iec 62103: Conductive Soiling Not Permitted)
Emc: En 61000-6-1 En 61000-6-2 En 61000-6-3 En 61000-6-4 En 61000-3-2 Class A
Vibration Resistance: Iec 60068-2-6 1,6 Mm 2...17,8 Hz / 2 G 17,8...500 Hz
Shock Resistance: Iec 60068-2-27 30 G 6 Ms / 20 G 11 Ms
Power Factor Correction (Pfc): Met

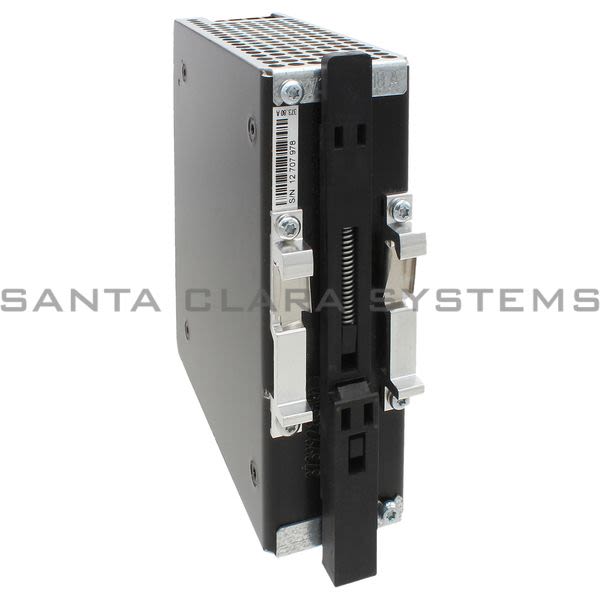

Type Of Mounting: Rail; (Th35 (En 60715))
Dimensions [Mm]: 124 X 40 X 122.5
Display: Dcok 1 Led
Connection: Screw Terminals:
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DN4011 . Santa Clara Systems carries 2,265 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
