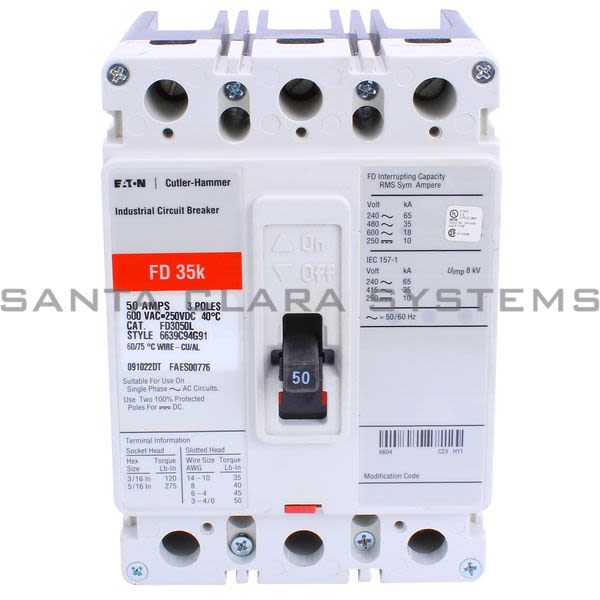

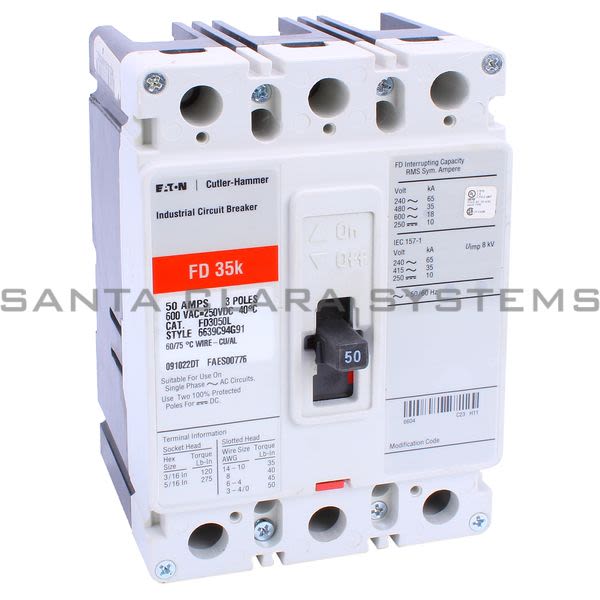

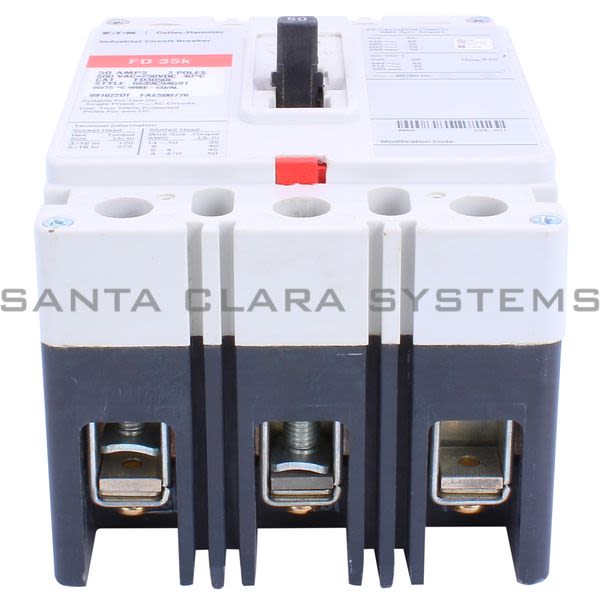

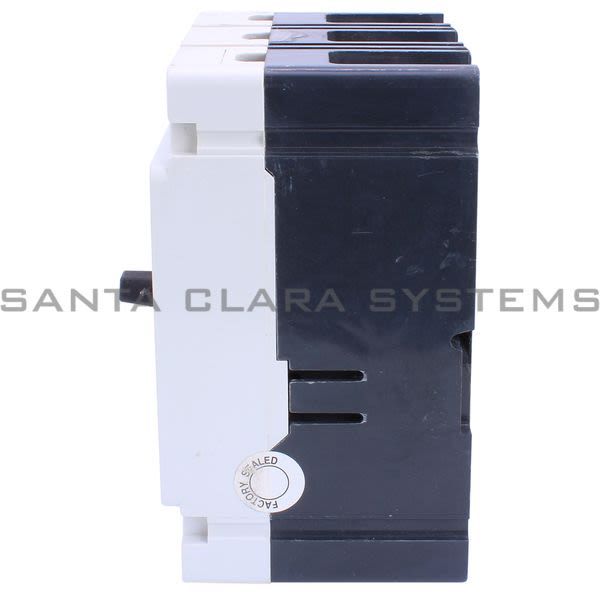

- Description: Circuit Breaker 50-AMP 3-Pole | Eaton
- UPC: 786679305706
- Poles: 3
- Number Of Poles: Three-pole
- Voltage rating: 600 Vac, 250 Vdc
- Amps: 50
- Max Voltage: 600 VAC;250 VDC
- H x W x D: 5 in x 5 in x 7.4 in
- Net Weight: 4 lb 8 oz
- Gross Weight: 4 lb 8 oz
- Interrupt rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Series: Series C
- Frame: F-frame
- Circuit breaker type: FD
- Frequency rating: 50/60 Hz
- Circuit breaker frame type: Complete breaker
- Terminals: Line and load
- Amperage Rating: 50A
- Trip Type: Fixed thermal, fixed magnetic
- Product Length/Depth: 3.38 IN
- Product Height: 6 IN
- Product Width: 4.13 IN
- Product Weight: 4.5 LB
- Certifications: UL Listed
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FD3050L . Santa Clara Systems carries 16,179 items from Cutler-Hammer.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
