E57SAL12T110SD

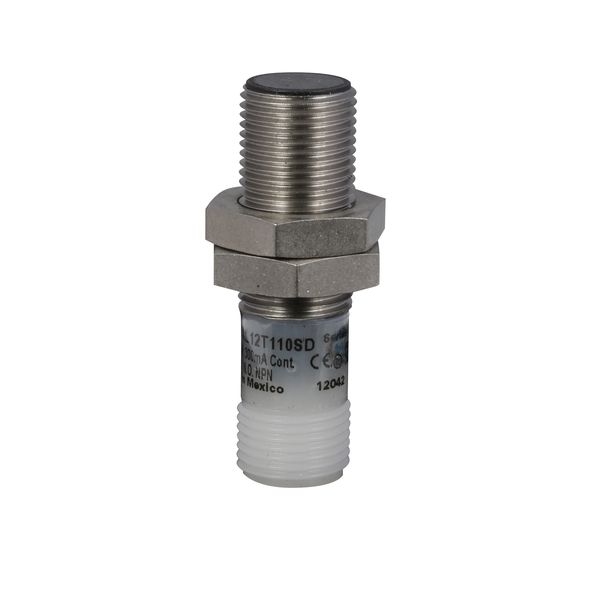

Cutler-Hammer - Proximity Switch Inductive | E57-Sal-12T110SD

Current response time:

By 5AM PT on Monday

Emergency?

Description: Proximity Switch Inductive | E57-Sal-12T110SD
Input Voltage: 6-48 Vdc
Contact Configuration: NPN Open Collector, Normally Open
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Maximum Dc Current: 500 mA
Connection: 4 Pin M12 Connector
Enclosure Material: Stainless Steel
Series: E57
Accuracy: < 1%
Contact Rating: 250 mA at 6-48Vdc

Environmental Rating: IP67, IP69K NEMA 4, 4X, 6, 6P
Protection: Short circuit protected
Diameter: .47 IN
Led Indicators: Red output status
Product Length/Depth: .47 IN
Product Height: 1.64 IN
Product Width: .47 IN
Product Weight: .0625 LB
Compliances: CE Marked
Certifications: UL Listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E57SAL12T110SD . Santa Clara Systems carries 16,199 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
