Out of Stock

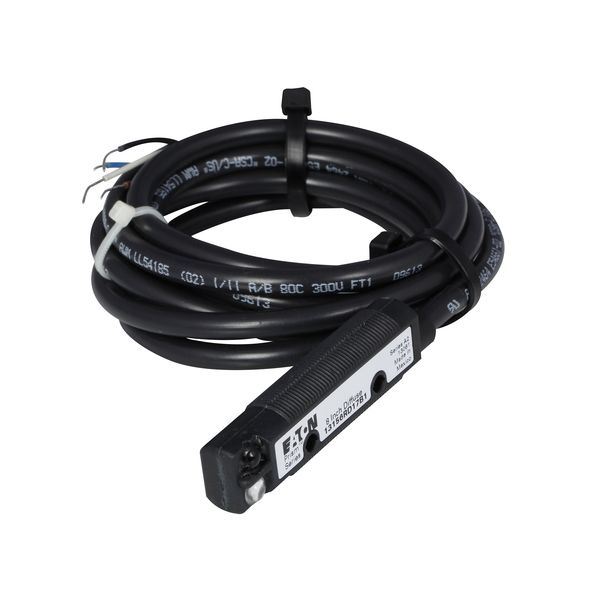

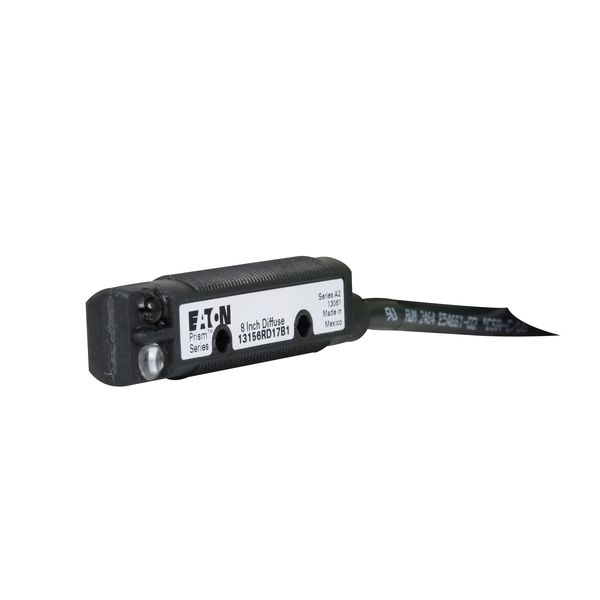

Cutler-Hammer 13156RD17B1 Photoelectric Prism Product Image

13156RD17B1

Cutler-Hammer - Photoelectric Prism

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Photoelectric Prism
Input Voltage: 10-30 Vdc
Contact Configuration: NPN and PNP open collector
Operating Temperature: -13 to 131F (-25 to 55C)
Cord Length: 79.2 FT
Maximum Dc Current: 100 mA PNP, 250 mA NPN
Cable Type: PVC
Enclosure Material: Polyurethane Foam (RIM)
Series: Comet
Type: Photoelectric Sensor
Sensor Type: Diffuse Reflective

Contact Rating: 100 mA PNP, 250 mA NPN at 10-30 Vdc
Environmental Rating: NEMA 1, 2, 3, 4, 4X, 6, 12, 13, 16
Protection: Auto reset S/C
Led Indicators: Output ON
Product Length/Depth: 2.6 IN
Product Height: .71 IN
Product Width: .47 IN
Product Weight: .02 LB
Certifications: UL Listed
DC current - max: 100 mA PNP, 250 mA NPN
LED indicator: Output ON

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 13156RD17B1 . Santa Clara Systems carries 16,185 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
