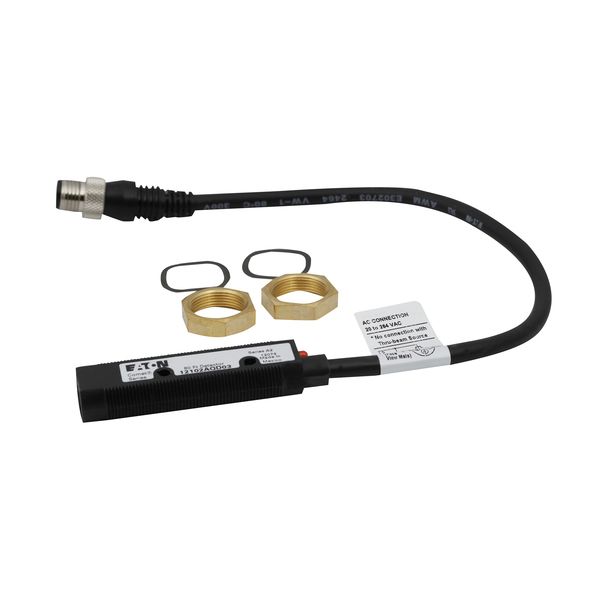

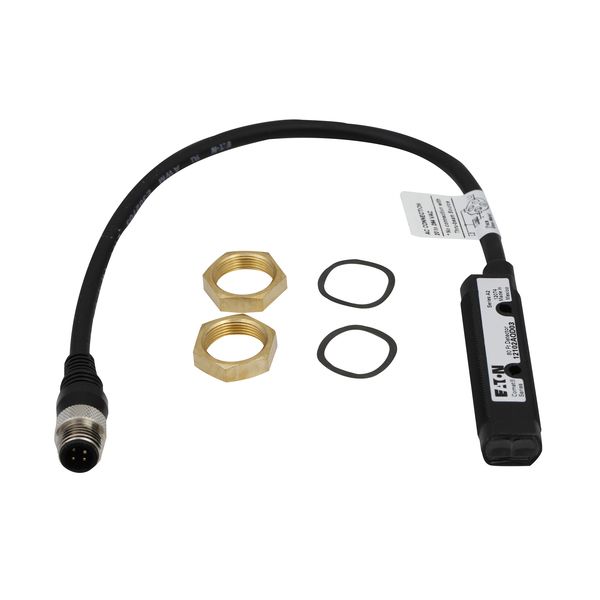

- Description: Photoelectric Sensor
- Input Voltage: 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
- Contact Configuration: AC: L1 switched, DC: NPN open collector
- Operating Temperature: -4 to 158F (-20 to 70C)
- Maximum Ac Current: 300 mA
- Maximum Dc Current: 300 mA
- Connection: Dual key micro
- Enclosure Material: Polyurethane Foam (RIM)
- Sensor Type: Through Beam
- Contact Rating: 300 mA AC/DC at 20-264 Vac/15-30 Vdc
- Number Of Pins: 4 pin
- Environmental Rating: NEMA 1, 3, 4, 4X, 6, 12, 13, IP69k
- Protection: Latching S/C
- Led Indicators: Output ON
- Product Length/Depth: 2.75 IN
- Product Height: .71 IN
- Product Width: .47 IN
- Product Weight: .22 LB
- Certifications: cUL Recognized
- AC current - max: 300 mA
- DC current - max: 300 mA
- LED indicator: Output ON
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 12102AQD03 . Santa Clara Systems carries 16,178 items from Cutler-Hammer.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
