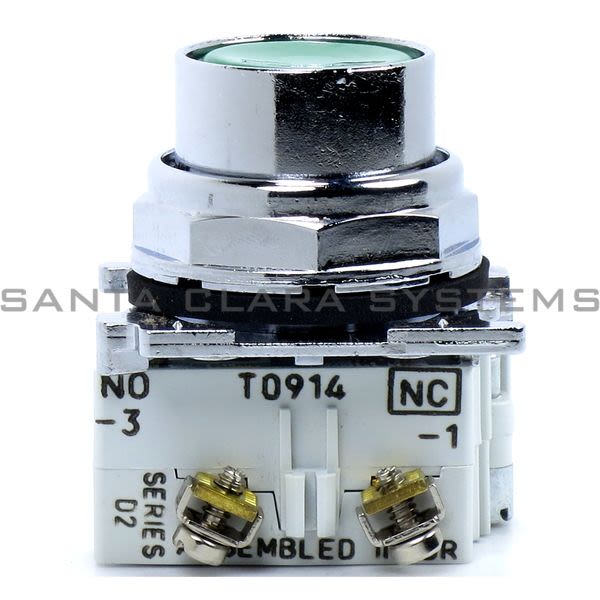

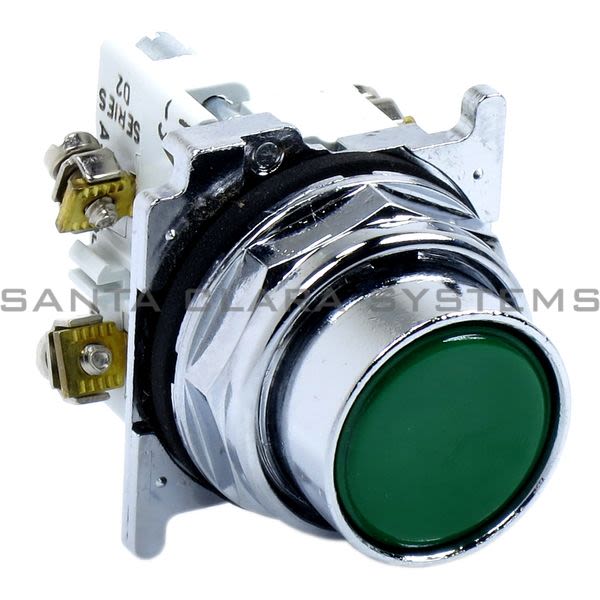

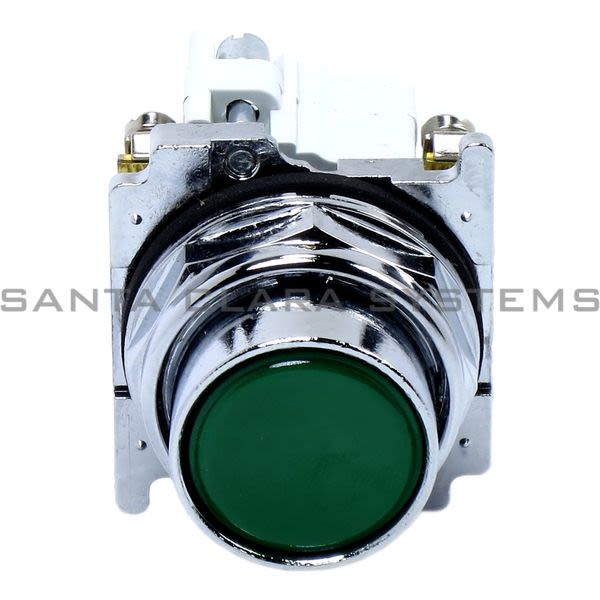

10250T30G

Cutler-Hammer - Push Button

Current response time:

By 5AM PT on Monday

Emergency?

Description: Push Button
UPC: 782113107516
Contacts: 1NO; 1NC
Terminal Type: Exposed Screw
Contact configuration: 1NO - 1NC
Size: 30.5 mm
Operating mode: Momentary
Mounting: Flush
Nominal Mounting Size (MM): 30
Operation: Momentary
Lens/Button Shape: Round Flush
Lens/Button Color: Green
Bezel: Metal Round
Max Voltage: 660 VAC;660 VDC
Current (A): 10 Amps
IEC Rating: IP65
NEMA Rating: 1;2;3;3R;4;4X;12;13

Approvals: UL;CSA;CE
H x W x D: 3.2 in x 2 in x 2.4 in
Net Weight: 4.8 OZ
Gross Weight: 4.8 OZ
Product Category: Flush pushbutton
Actuator color: Green
Actuator material: Plastic actuator
Rating: NEMA 3, 3R, 4, 4X, 12, 13
Series: 10250T Series
Type: Class I division 2
Illumination: Non-illuminated
Product Length/Depth: 2.4 IN
Product Height: 2 IN
Product Width: 2 IN
Product Weight: .2 LB
Compliances: CE Marked
Certifications: CSA Certified
