10250T201NC2N

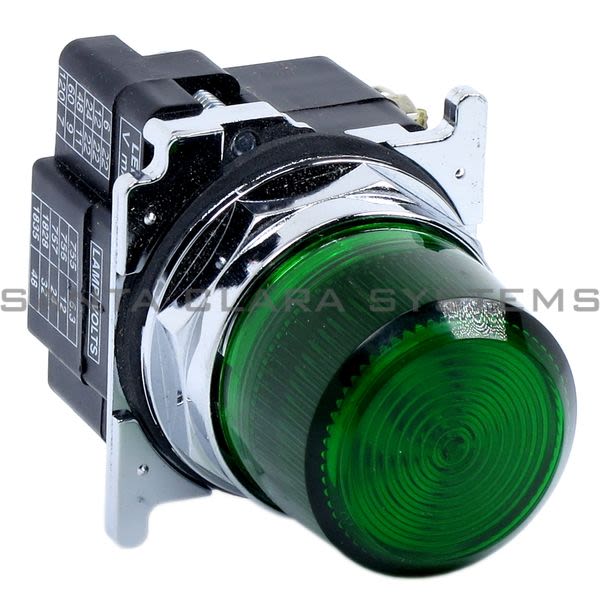

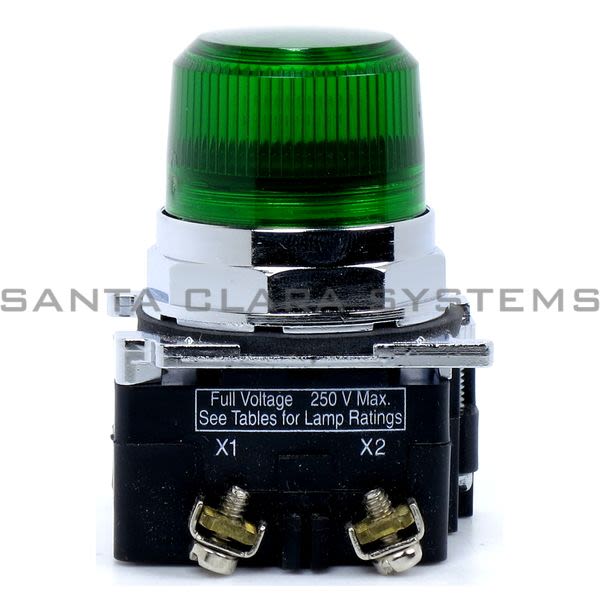

Cutler-Hammer - Pilot Light Green Incandescent | 10250T-201NC2N

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Pilot Light Green Incandescent | 10250T-201NC2N
UPC: 782113370941
Terminal Type: Screw
Lens Color: Green
Lamp Type: Incandescent
Style: 30.5 mm
Mounting Size (mm): 30
Nominal Lamp Voltage: 120 VAC;120 VDC
Lens Shape: Flat Round
Illumination Circuit: Resistor Type
Bezel Style: Chrome Metal
Depth Behind Panel: 1.1 Inches
NEMA Rating: NEMA 1;NEMA 2;NEMA 3;NEMA 3R;NEMA 3S;NEMA 4;NEMA 4X;NEMA 12;NEMA 13
IEC Rating: IP65
Approvals: UL;CSA;CE

H x W x D: 3.2 in x 2.1 in x 2.4 in
Net Weight: 6.4 OZ
Gross Weight: 6.4 OZ
Supply voltage: 120 Vac
Light unit type: Incandescent, resistor
Series: 10250T
Type: Heavy-Duty Watertight/Oiltight
Lens material: Plastic
Actuator: Standard
Product Length/Depth: 2.4 IN
Product Height: 3.2 IN
Product Width: 2.1 IN
Product Weight: .4 LB
Compliances: CE Marked
Certifications: UL Listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 10250T201NC2N . Santa Clara Systems carries 16,178 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
