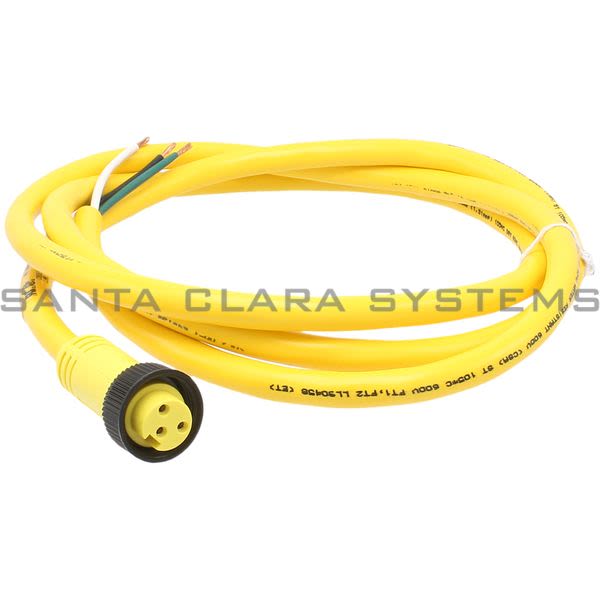

1300060221

Brad Harrison

Product Summary:

Category: Industrial Cordsets
Series: 130006
Connector End A: Mini-Change

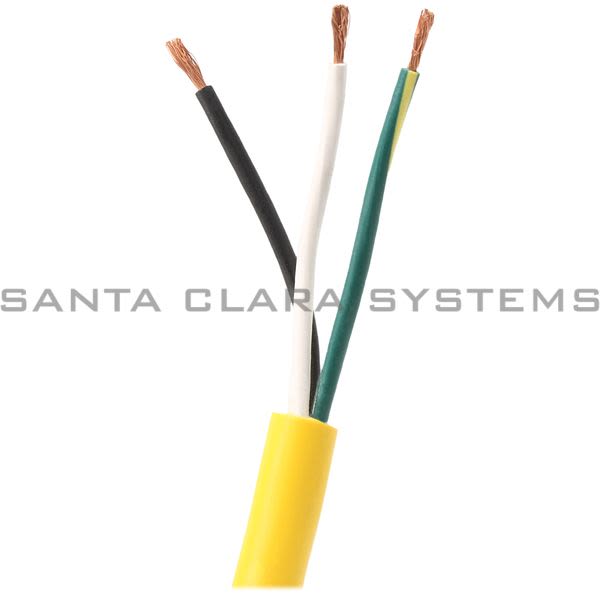

Connector End B: Pigtail
IP Rating: IP67

Current response time:

By 5AM PT on Thursday

Emergency?

Description:
Category: Industrial Cordsets
Series: 130006

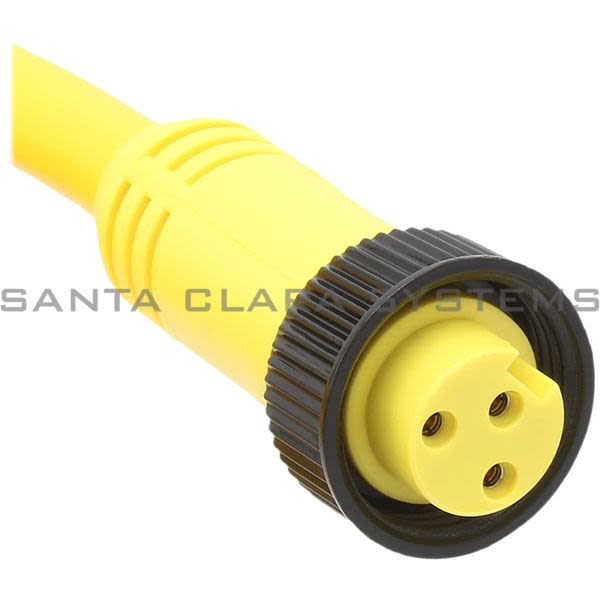

Connector End A: Mini-Change
Connector End B: Pigtail
IP Rating: IP67
Material - Contact: Copper Alloy
Overview: Brad Mini-Change Connectors
Product Name: Mini-Change
Protocol: N/A
Region: America
Type: Single Ended
UPC: 78172553724
Cable Diameter: 10.41mm (.410")
Cable Length: 1.83m (6.0')
Color - Cable Jacket: Yellow
Coupling Style: Threaded
Gender: Female-Pigtail
Keyway: Single

LED Indicator: No
Material - Cable Jacket: PVC
Material - Connector Body: PVC
Material - Coupling Nut: Black Epoxy Coated Zinc
Material - Plating Mating: Gold
Net Weight: 282.134/g
Orientation: Straight to Pigtail
Poles: 3
Temperature Range - Operating: -20C to +105C
Wire Size AWG: 16
Wire/Cable Type: STOOW
Cable Jacket Material: PVC
End 1 Connection Type: 7/8 in
End 1 Gender: Female
End 1 Mounting Orientation: Straight
End 1 Number of Pins: 3
End 2 Connection Type: Bare Wire
Maximum Current: 13 A
Maximum Voltage: 600 V DC; 600 V AC

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1300060221 . Santa Clara Systems carries 166 items from Brad Harrison.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
