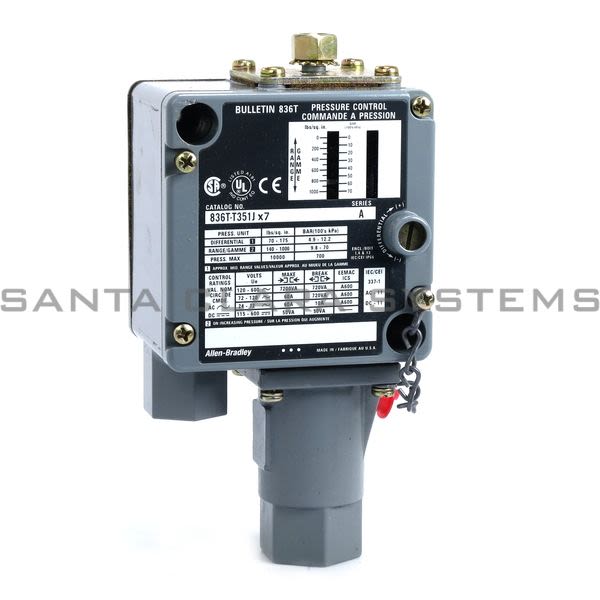

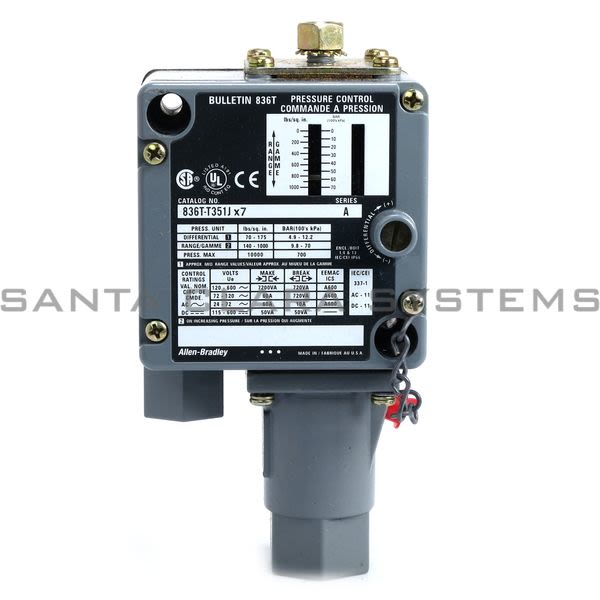

836T-T351JX7

Allen Bradley - Pressure Switch

Current response time:

4 Minutes 8 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Switch
Operator Type: Piston with Seal , Hydraulic fluid return line to reservoir is not required.
Enclosure Type: Enclosure Type 1, 4 and 13 Industrial use.
Custom Trip or Reset Setting: Default Factory Setting , Standard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Contact Block Type: S.P.D.T. , 2 - circuit contact block

Style of Device: T - Style Pressure Control , Independently adjustable operating range and differential, Single bellows or piston operation.
Adjustable Pressure Selection (Operating Range): 1000 psi
Adjustable Differential (Approximate Mid-Range Values): 100 psi
Ordering Modifications: X7, SAE 9/16-18, UNF thread O-ring Boss Seal ( Piston type pressure control) , Use on applications with a pressure range of 550...5000 psi.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 836T-T351JX7 . Santa Clara Systems carries 54,603 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
