836-C4JX15A

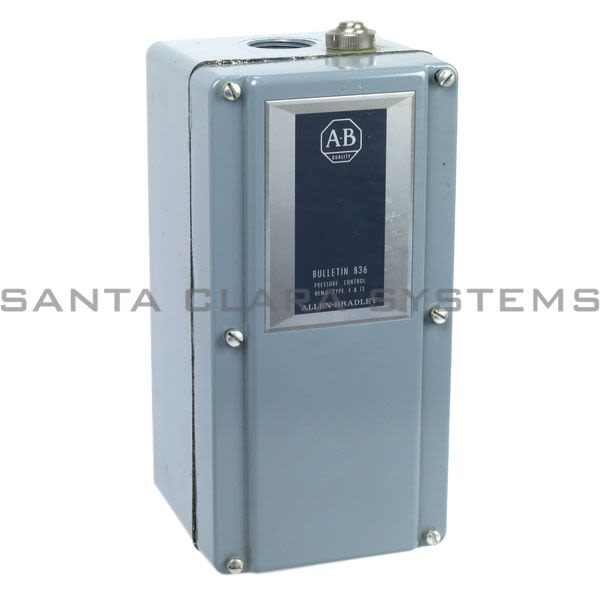

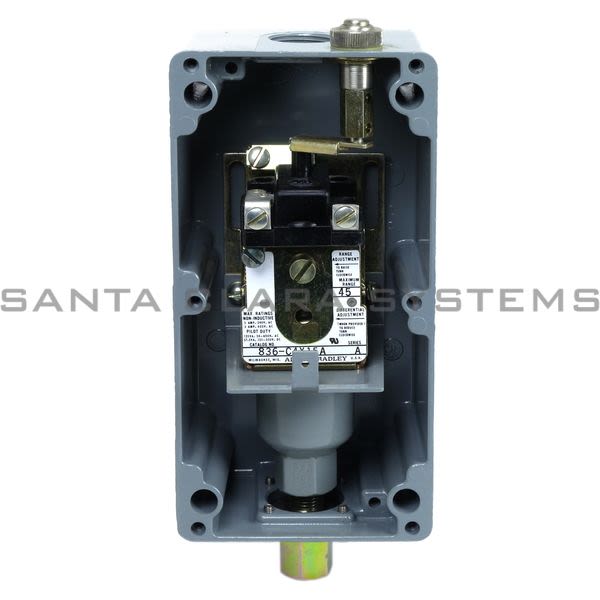

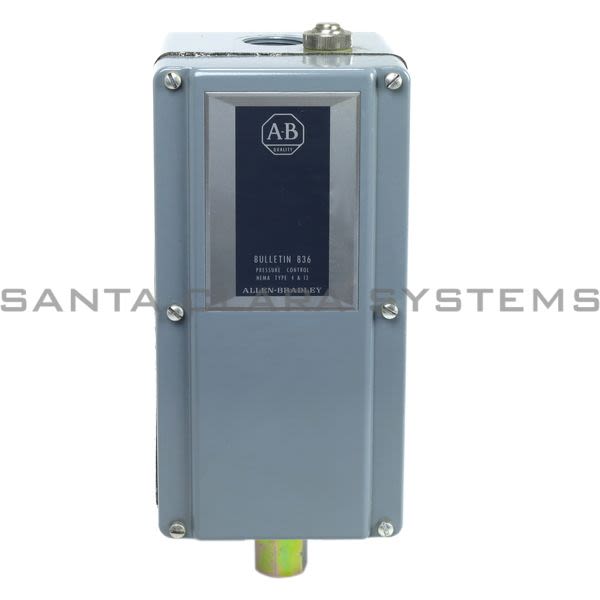

Allen Bradley - Pressure Control Adj. 30 VAC-45psi Adj. Diff. 1-15 psi NEMA 4,13 External Bellows

Current response time:

By 5AM PT on Thursday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Control Adj. 30 VAC-45psi Adj. Diff. 1-15 psi NEMA 4,13 External Bellows
Enclosure Type: Type 4 & 13 Metallic Aluminum enclosure
Custom Trip or Reset Setting: Default Factory Setting , Standard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Maximum Line Pressure: 175

Device Style: Device Style C, External Copper Alloy Bellows , 1/4 in. N.P.T.F. female pipe connection.Copper alloy bellows may be used on water or air, and other liquids or gasses not corrosive to this alloy.
Factory Modifications: X15A, External Manual reset contact block. Single pole double throw, one contact normally closed - contact opens on rise and remains open until system is restored to normal run condition at which time contact can be manually reset. A second contact closes when the first contact opens. , Non-inductive: 5 A, 240V ...3 A, 600V + Control circuit rating: AC-125 VA, 24...600V, DC-57.5 VA, 115 ...230V. Differential is not adjustable, fixed differential is approximately three times (3x) the published minimum differential. Type 7&9 enclosures for manual reset devices are also not rated Type 4&13.
Pressure Specifications: 45 psi.
Adjustable Differential psi (Approximate Mid-Range Values): 1
